PCB Assembly: How to Design-In Magnetic Pogo Pin Connectors?
In product designs across smart wearables, medical devices, and heavy-duty industrial equipment, magnetic pogo pin connectors are rapidly becoming the preferred interface for hardware engineers. Thanks to their self-aligning magnetic attraction, robust conductivity, and low-profile form factor, they offer unmatched reliability over traditional plug-and-socket designs.
However, integrating these connectors requires careful Design for Manufacturability (DFM). Different product enclosures impose strict spatial and mechanical constraints on how the connector mounts to the Printed Circuit Board (PCB). How exactly should magnetic pogo pins be assembled to guarantee zero-defect connectivity?
1. Connector Mounting: Dictated by Structural Design
The integration of a magnetic pogo pin connector is largely determined by the structural design of its tail pins. These tail configurations dictate the electrical and mechanical interface with the PCB or wire harness. Based on spatial constraints, automated soldering processes, and rigorous operating environments (such as high vibration or IP68 waterproof requirements), CTP offers a comprehensive suite of mounting options ensuring precise positioning and rock-solid signal transmission.

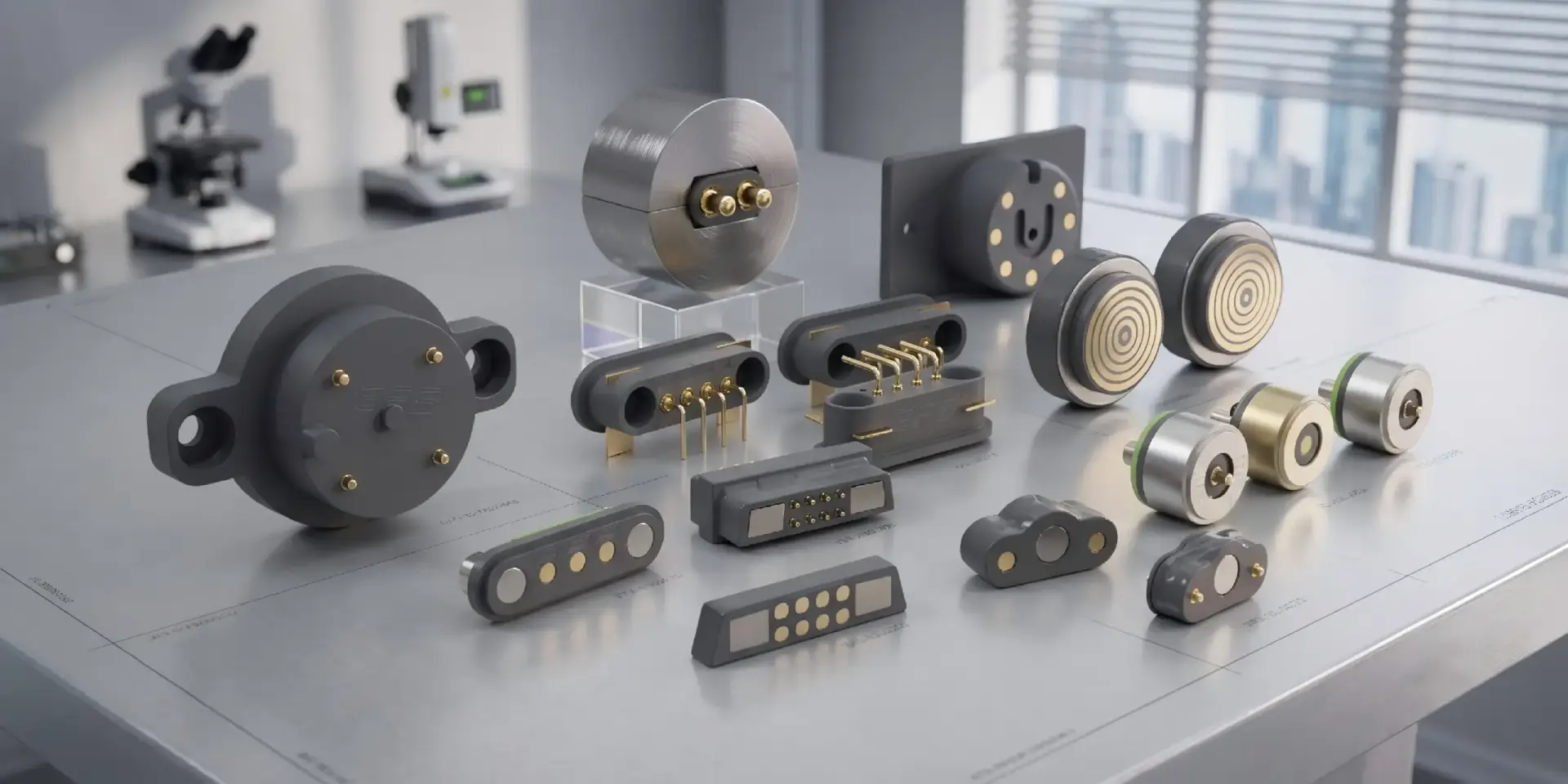

2. Four Mainstream Mounting Methods Explained
2.1 Through-Hole Insertion (DIP Type)
The Process: Pre-drilled plated through-holes (PTH) are designed into the PCB layout. The connector’s tail pins are vertically inserted through the board and secured via wave soldering, forming a highly durable mechanical bond.
Best Suited For: Industrial equipment, robotics, power modules, and applications subjected to heavy shock, vibration, or high mating cycles.
2.2 Right-Angle Mounting (Bent Pin Type)
The Process: The connector pins are precision-bent at a 90-degree angle before being soldered to the PCB. This allows the connector housing to lay parallel and flush against the edge of the circuit board.
Best Suited For: Ultra-thin smart wearables, handheld telemetry terminals, and custom designs with severe Z-axis height limitations.
2.3 Surface-Mount Technology (SMT Type)
The Process: Engineered with a flat-bottomed SMD footprint, these connectors are picked and placed directly onto PCB surface pads. They are permanently secured using automated reflow soldering ovens.
Best Suited For: High-volume consumer electronics, TWS earbud charging cases, AI smart glasses, and compact IoT devices requiring automated assembly.
2.4 Solder-Cup / Wire-Termination Type
The Process: Instead of mounting directly to a rigid PCB, the tail ends of the pogo pins are machined into “solder cups.” This allows insulated wires or cable harnesses to be directly soldered into the pins.
Best Suited For: Battery pack connections, magnetic charging docks, and internal module jumpers where flexible routing is necessary.
3. Quick Comparison: PCB Mounting Strategies
| Mounting Method | Assembly Type | Key Engineering Advantages | Typical Applications |
|---|---|---|---|
| Through-Hole (DIP) | Wave / Manual Soldering | Extreme mechanical stability, pull-out resistance | Industrial robotics, rugged terminals |
| Right-Angle | Edge / Surface Soldering | Space-efficient, parallel PCB integration | Ultra-thin wearables, medical displays |
| Surface-Mount (SMT) | Automated Reflow | Ideal for high-speed robotic SMT assembly, low profile | Consumer tech, AI glasses, TWS |
| Solder-Cup | Manual Wire Soldering | Highly flexible wire routing, no rigid PCB required | Charging cables, battery pack jumpers |
4. Engineering FAQ: Optimizing Your DFM
Q1: How do I select the best mounting method for my project?
Your selection should be driven by Z-Axis Clearance (available height), Assembly Workflow (reflow vs. wave soldering), and Mechanical Stress (pull forces). We highly recommend sharing your STP files with the CTP engineering team early in the layout phase.
Q2: Can SMT-mounted magnetic connectors withstand harsh mating cycles?
Absolutely. CTP’s SMT connectors are engineered to handle 100,000+ blind-mating cycles. For extreme side-load forces, we add auxiliary locating pegs (bosses) into the housing to relieve stress from solder joints.
Q3: What are the primary PCB layout considerations for Right-Angle connectors?
Ensure the connector face remains perfectly parallel to the device enclosure. This requires highly accurate through-hole positioning and tight control over the pin bending radius. Engaging CTP during layout eliminates component interference.
