Spring-loaded interconnects—often referred to as pogo pins or spring probes—represent the pinnacle of high-reliability connectivity for today's most rigorous electronic applications. Every CTP contact is engineered to deliver micro-ohm resistance, exceptional mechanical longevity, and a highly resilient compliant interface. Driven by advanced manufacturing and a rapid 3-day prototyping cycle, we empower hardware engineers to seamlessly specify the perfect connector for any mission-critical environment.
Explore CTP InterconnectsAt the core of every CTP spring-loaded pin is a precision-machined three-piece architecture, housing a high-fatigue internal spring designed to guarantee unwavering mechanical travel. Our proprietary multi-layer gold-over-nickel plating process ensures minimal contact resistance while providing an impenetrable defense against corrosion.
Thanks to this field-proven stability and our 3-day sample dispatch, top-tier engineers across the medical, aerospace, defense, and industrial automation sectors consistently rely on CTP to power their next-generation modules.

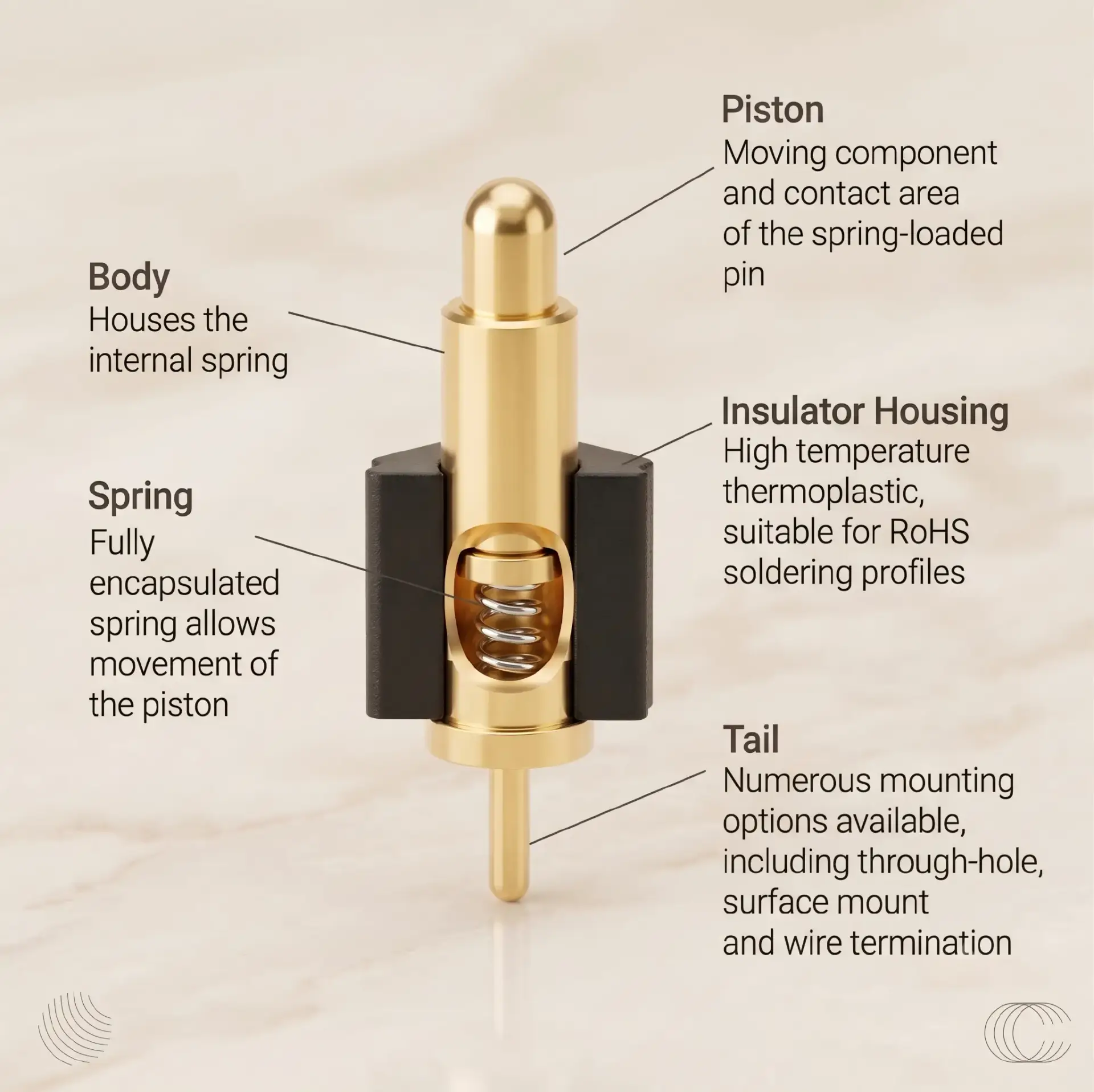

Figure 1: Internal structure of a CTP spring-loaded pin, featuring a high-fatigue spring and multi-layer gold-over-nickel plating for micro-ohm resistance.
Regardless of your assembly constraints—be it through-hole, SMT, wire termination, or custom alignment—CTP provides versatile configurations tailored to your exact PCB footprint.

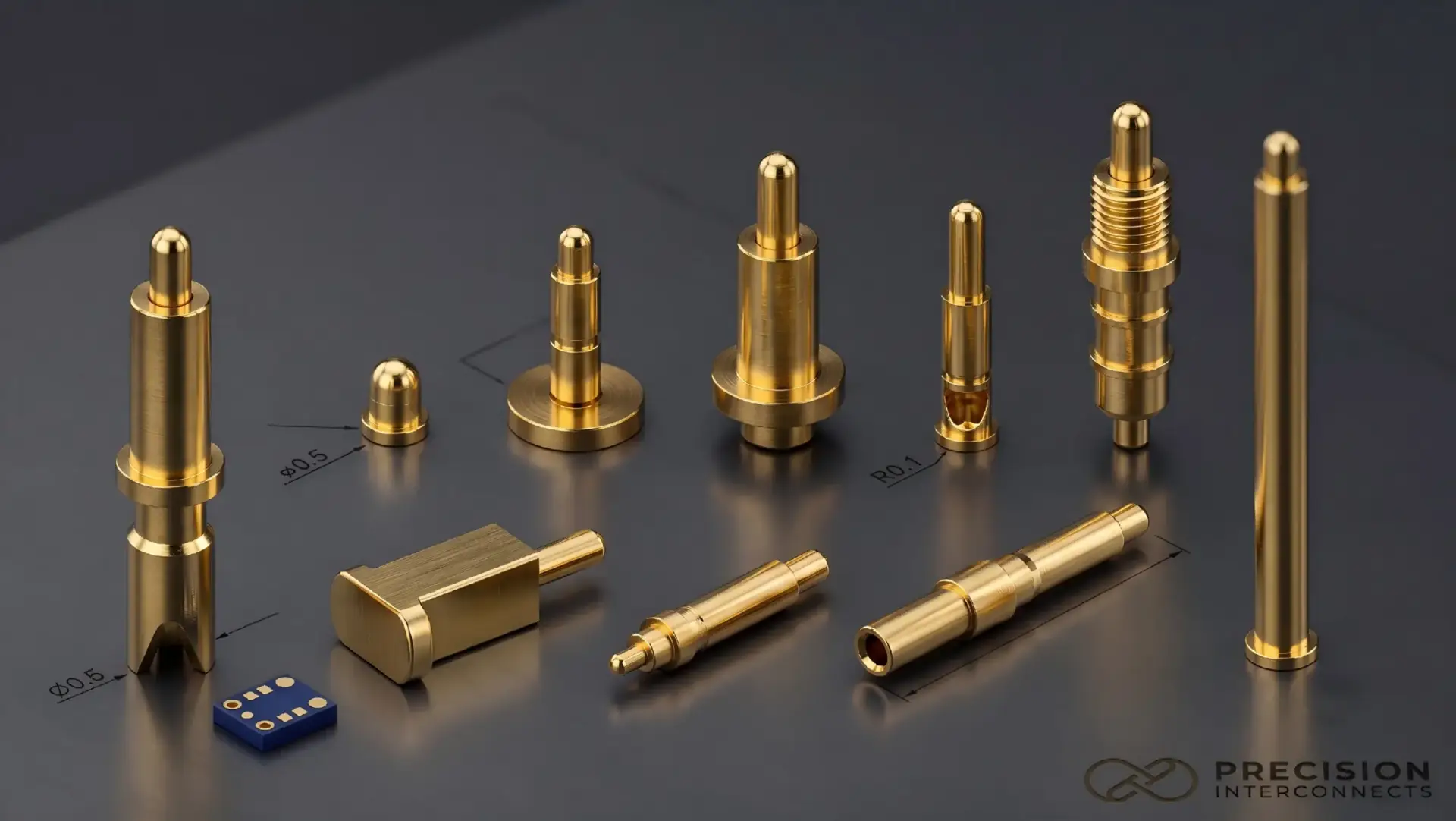

Forged for extreme conditions, our discrete spring-loaded pins deliver unquestionable reliability. Each contact undergoes rigorous cycle testing to survive 50G shock and 10G vibration profiles, ensuring zero electrical drop-offs (no spikes >1µs and >1.5V @ 0.5A). This level of precision guarantees stable power transmission across custom lengths and travel strokes.
Supported by our agile 3-day prototyping, our R&D team is ready to scrutinize your design. Contact us today for an instant DFM evaluation.
Figure 2: CTP discrete contacts maintain micro-ohm precision, ensuring zero signal disruption across custom stroke ranges.

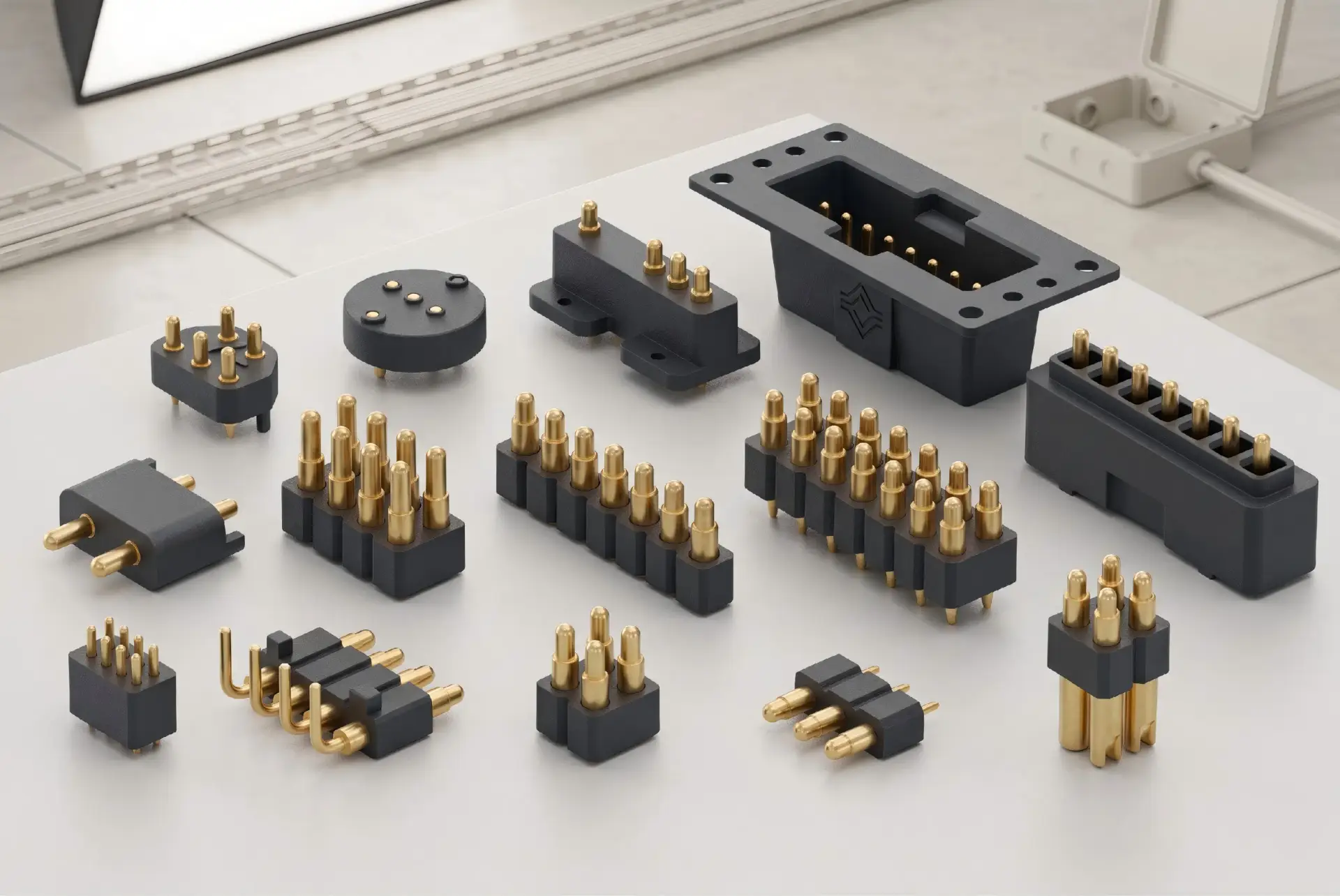

For complex multi-circuit designs, CTP integrates premium spring probes into high-temperature thermoplastic insulators. Built to endure harsh reflow assembly processes, these arrays offer flawless mating reliability.
Figure 3: Versatile pitch options from 1.27mm to 4.00mm, featuring molded-in threaded inserts for robust anchoring.

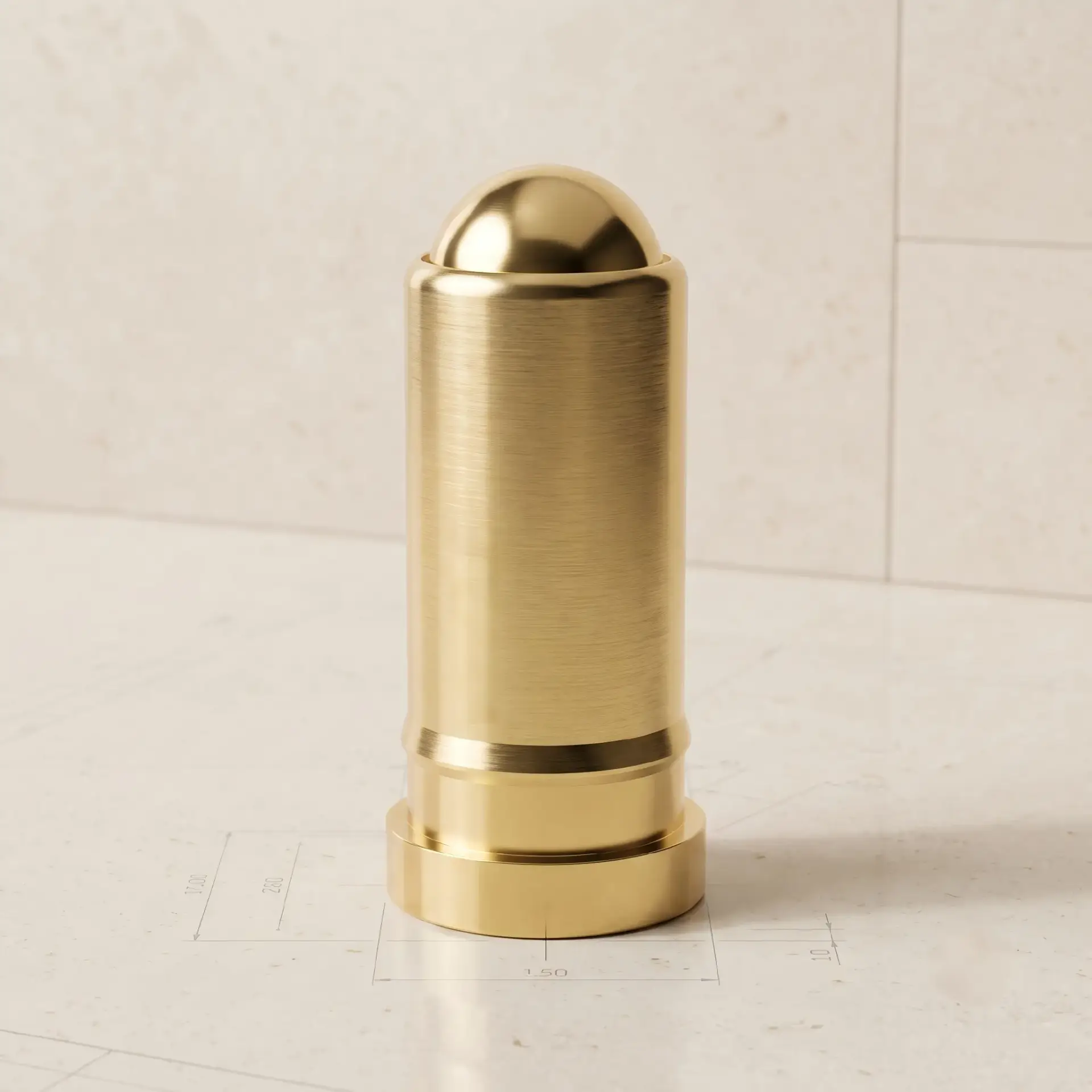

When standard axial pins fall short, CTP’s Omni-directional Contacts introduce a revolutionary spherical mating interface. Engineered specifically for complex trajectories, they excel in sliding, blind mating, and "twist & lock" mechanisms.
Figure 4: Spherical plunger designs minimize mechanical wear in demanding twist & lock applications.

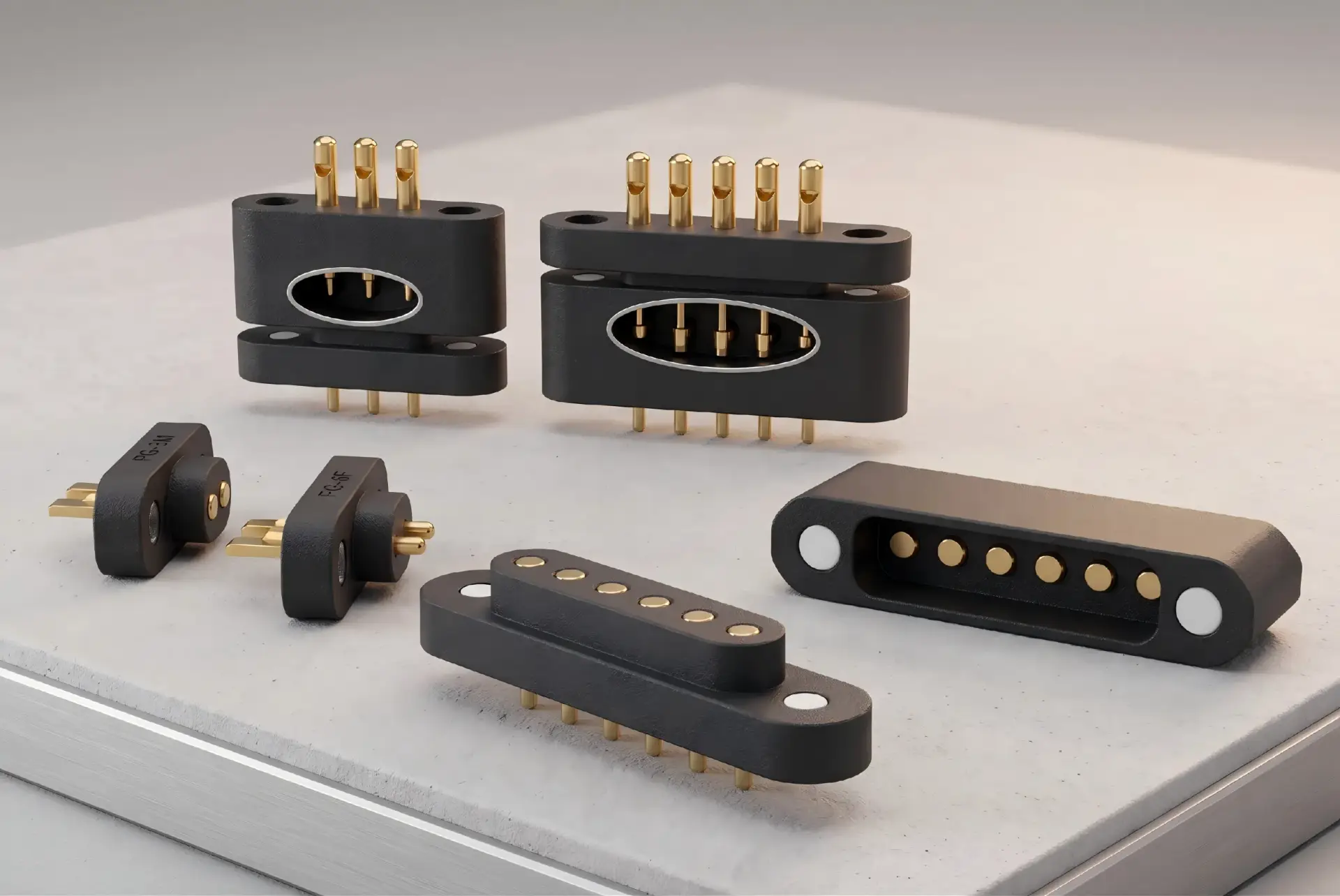

When deployment speed and effortless precision are non-negotiable, CTP's magnetic spring-loaded connectors take the lead. Utilizing intelligent self-alignment and true zero-force mating, these modules eradicate connection guesswork in blind-mate scenarios.
From seamless board-to-board arrays to rugged cable assemblies, we provide the architectural flexibility to design smarter. Choose between SMT, through-hole, or wire-mount variants to suit your exact ecosystem.
Figure 5: Tool-free, zero-force blind mating for next-generation electronic modules.

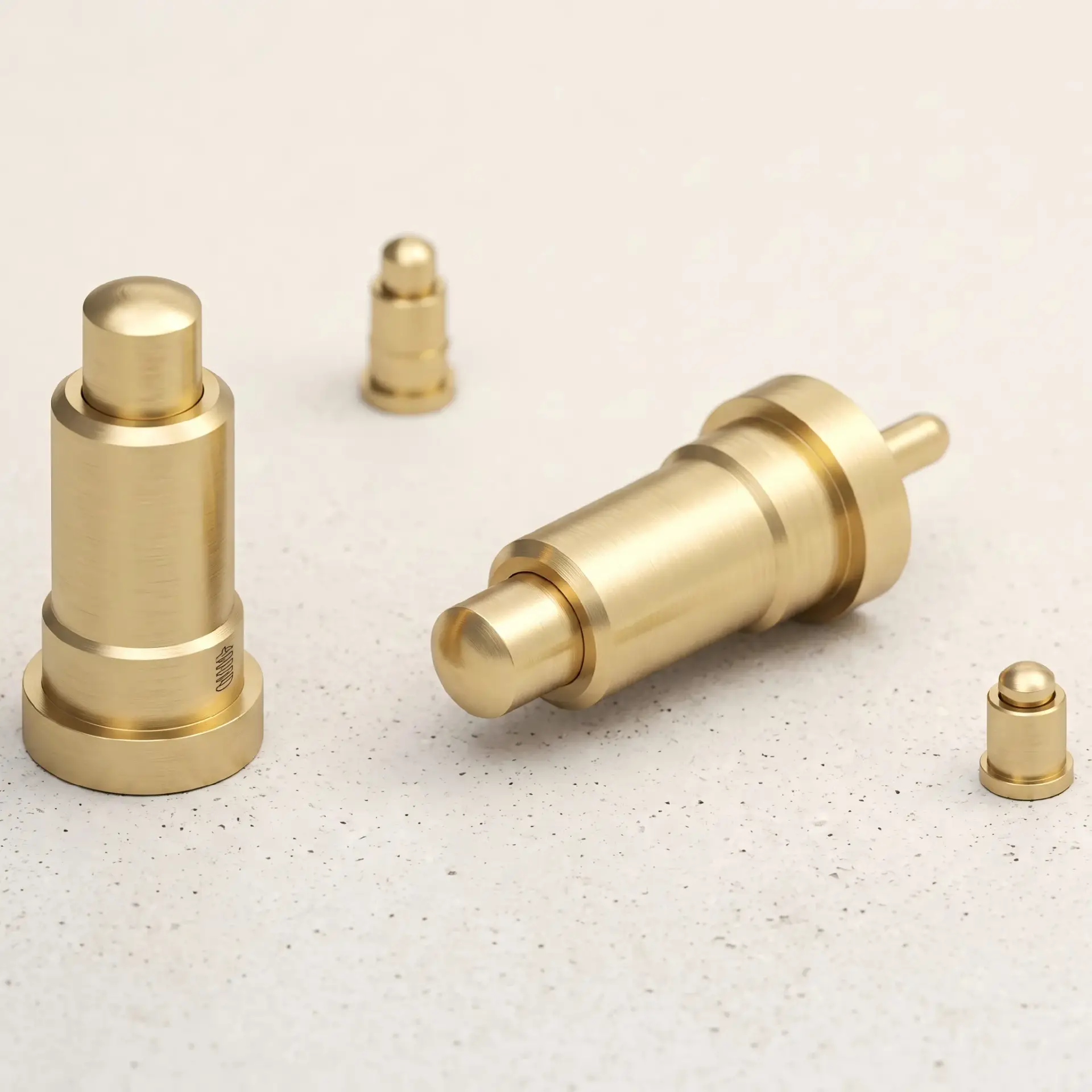

Heavy-Duty Power Delivery: When pushing power limits, CTP’s rugged probes excel. Masterfully machined for extreme electrical loads, they safely transmit 9 amps of continuous current while maintaining a remarkably low 30°C temperature rise.
Maximum PCB Stability: To counter aggressive lateral forces, our large base families feature an expanded .159" (4.00mm) diameter anchor. Providing working heights up to .430" (10.92mm), these contacts deliver superior mechanical retention for rigorous board soldering.
Figure 6: High-current spring probes reliably transmit up to 9A continuous power without thermal degradation.
Precision Insulated Probes: Standard contacts pose risks when routing through conductive enclosures. CTP mitigates this with proprietary insulating sleeves. This high-performance dielectric barrier completely prevents short circuits, making it the ultimate safeguard for dense, high-stakes signal routing.
Calibrated Force: While most CTP contacts are optimized for a 60-gram mid-stroke pressure, we possess a vast library of pre-engineered spring profiles. Whether your components require aggressive retention or an ultra-gentle touch, our R&D team can instantly tailor the perfect compression profile.

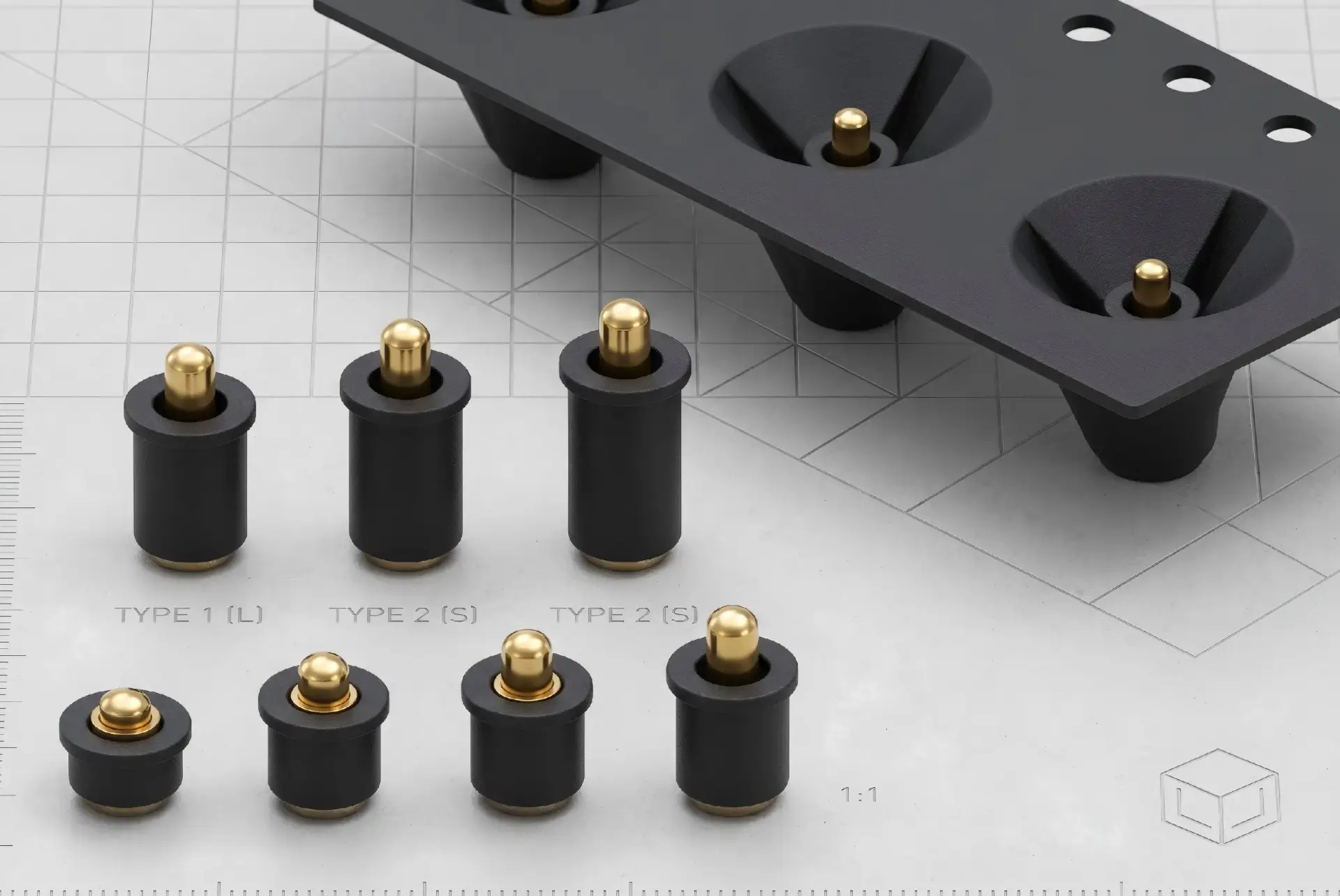

Figure 7: Failsafe dielectric barriers guarantee interference-free routing in highly conductive enclosures.

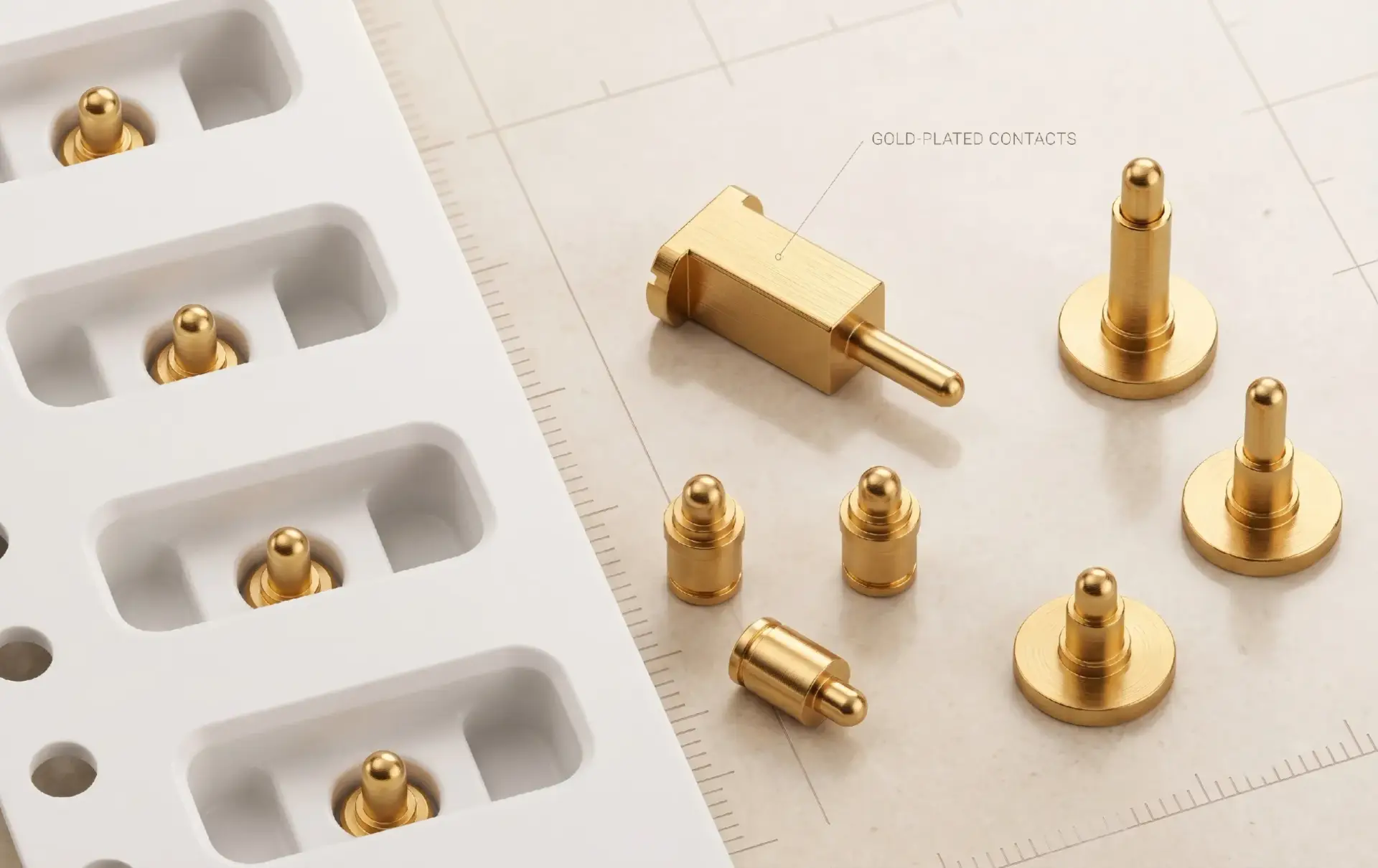

Tape & Reel Packaging: To accelerate your high-volume production, CTP supplies discrete SMD spring pins on EIA standard tape and reel. Optimized for modern pick-and-place robotics, these contacts often feature removable vacuum caps for flawless automated positioning.
Horizontal Mounts: Facing severe vertical constraints? Our low-profile, right-angle spring contacts are designed for parallel board mating. Available in 1.27mm and 2.54mm pitches, these sideways connectors offer the sleekest Z-axis footprint on the market.
Figure 8: EIA standard tape and reel packaging streamlines high-volume SMT manufacturing.
Dual-Plunger Solderless Mating: Bridge parallel boards seamlessly without solder. Our double-action spring pins feature active compliance on both ends, acting as the ideal electromechanical link for stacked PCB architectures.
Hybrid FMLB Connectivity: Consolidate power and data by housing varying pin heights in a single insulator. This ingenious hybrid approach enables First-Mate/Last-Break (FMLB) sequencing, a critical requirement for safeguarding hot-swappable devices.
Wire Integration: Extend reliability beyond the board with our specialized wire-mount contacts. Featuring precision solder cups (up to 24 AWG) and heavy-duty crimp barrels (up to 16 AWG), we also provide fully pre-crimped custom cable assemblies.

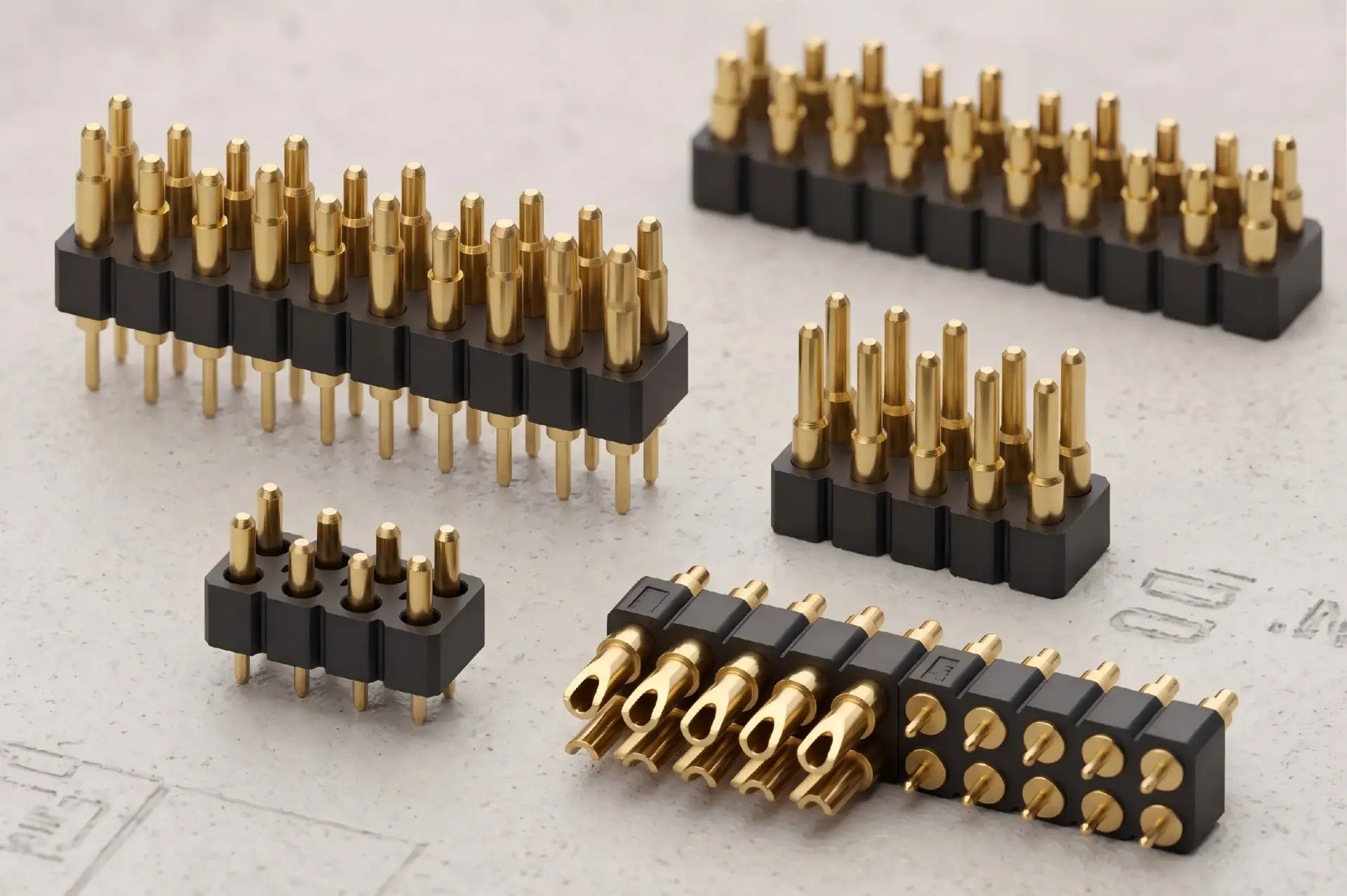

Figure 9: Hybrid arrays execute First-Mate/Last-Break (FMLB) sequencing to protect hot-swappable circuits.

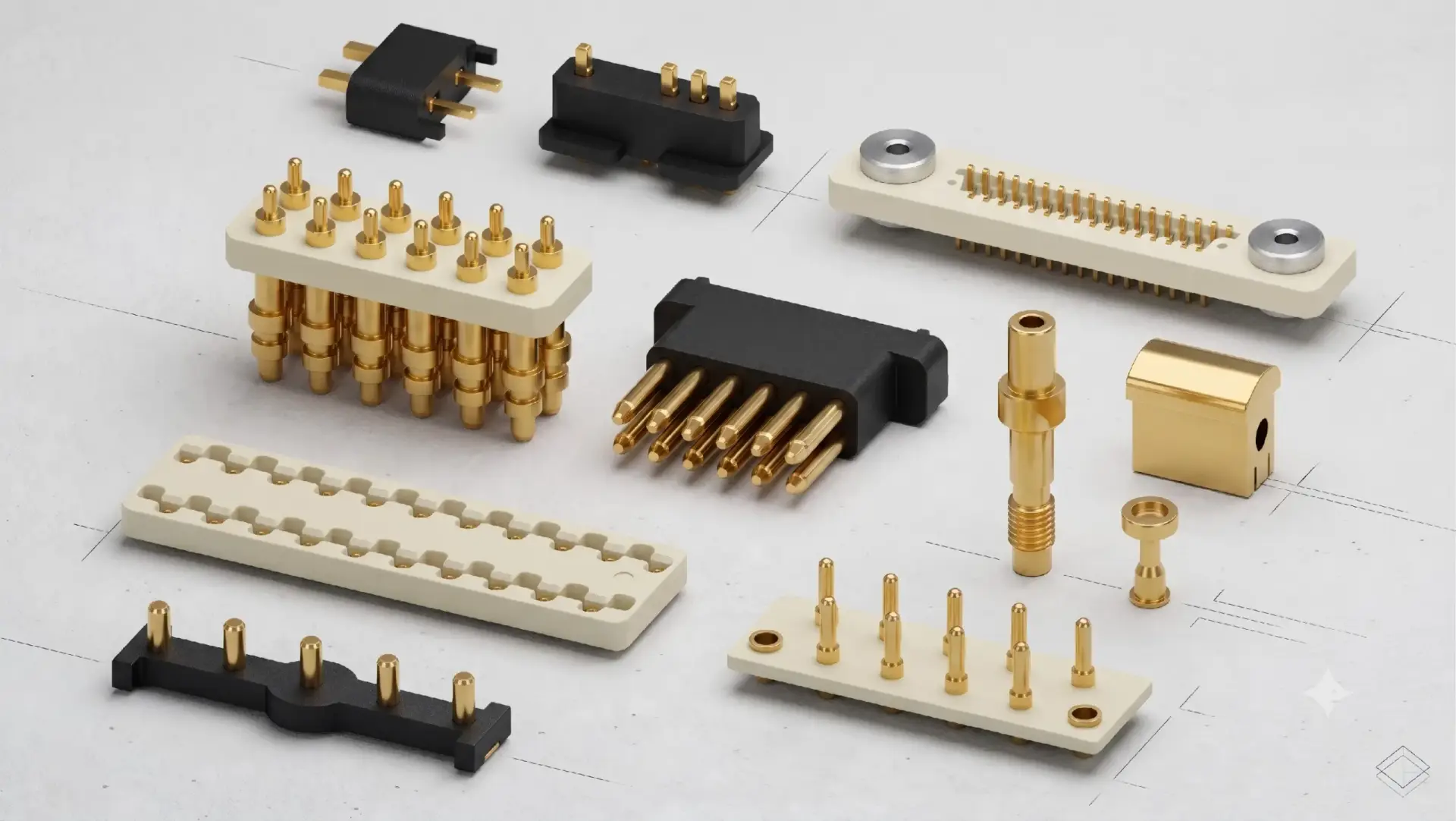

When off-the-shelf components compromise your technical vision, CTP steps in to architect a bespoke solution. Our R&D division transforms complex hardware constraints into fully realized custom pins and magnetic layouts.
We fuel your innovation cycle with agile manufacturing—delivering rapid prototypes in days, offering exceptionally flexible MOQs, and providing factory-direct pricing for global mass production.
Partner with CTP Today
Figure 10: Agile custom manufacturing turning hardware concepts into high-volume reality.
