Case Study: Medical & Skincare Devices

Custom Waterproof Magnetic Pogo Pin Solution for Luxury Facial Beauty Devices

How CTP engineered a chemical-resistant, zero-cavity magnetic charging contact to overcome gel corrosion and achieve IP68 waterproofing for a leading beauty tech brand.

The Engineering Challenge

Luxury facial beauty devices and anti-aging massagers demand absolute reliable operation under harsh conditions. The client approached CTP to replace their standard USB charging port due to severe field failures:

  • Cosmetic Chemical Corrosion: Skincare gels, anti-aging serums, and essential oils quickly penetrate standard charging sockets. These substances trigger intensive galvanic corrosion on copper alloys, leading to charging terminal faliure.
  • Strict Waterproof Needs: As consumer devices used heavily in showers and sinks, the device required a true IP68/IP69K fully sealed structure without dirt-trapping holes.
  • Aesthetic and Hygiene Standards: Traditional ports act as breeding grounds for bacteria and residual cosmetic gels. A seamless, luxury outer design was non-negotiable.

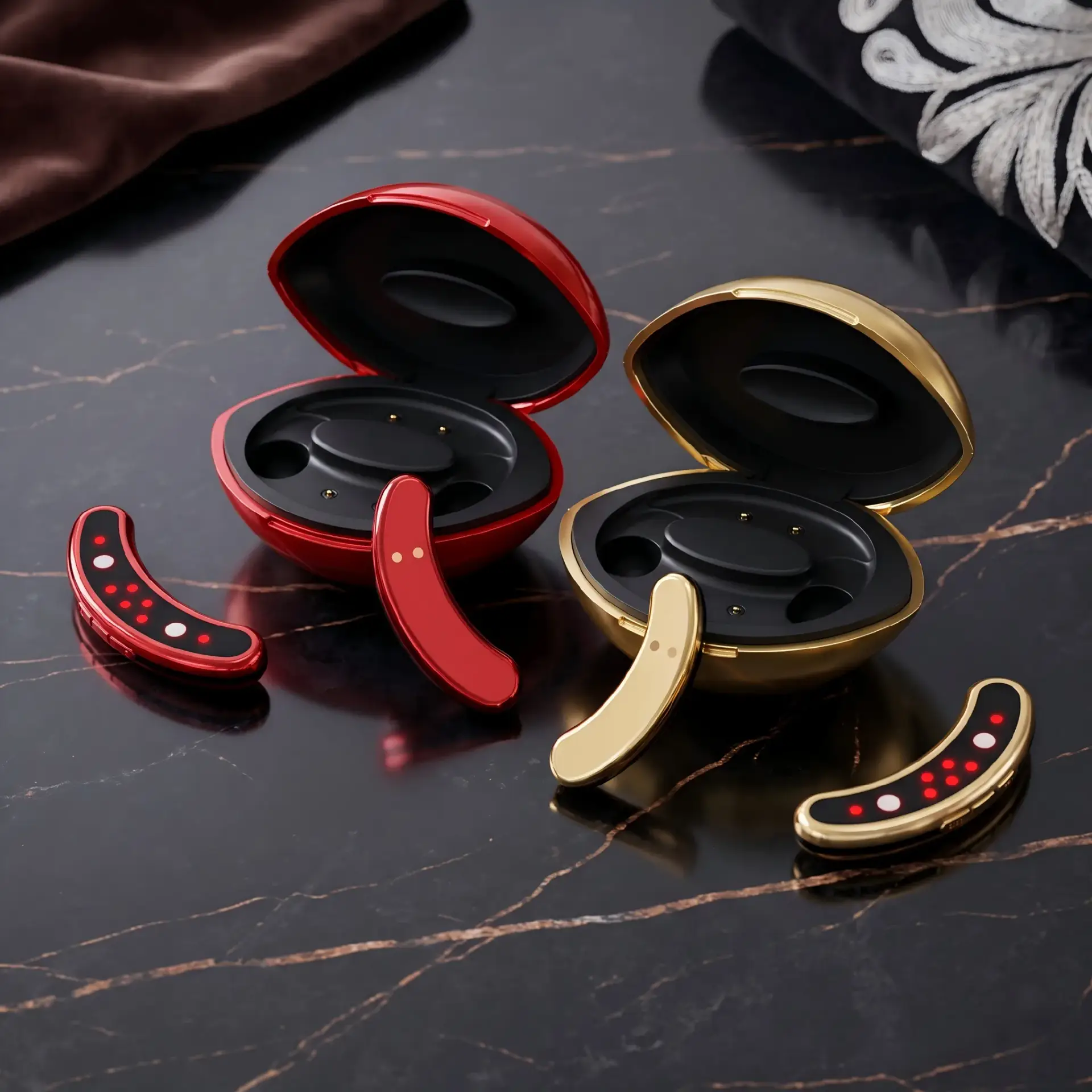

Luxury skincare facial beauty device utilizing custom 2-pin magnetic charging contacts engineered by CTP Solutions.

CTP Customized 2-Pin Plating Breakthrough

Our engineering division developed a flat-surface, 2-pin magnetic pogo pin assembly utilizing an advanced multi-layer noble metal plating process to resist specific chemical erosion from cosmetic formulas.

Performance Metric Standard Micro-USB / Type-C CTP Specialized Beauty Device Solution
Waterproof / Sealed Level IP54 (Open cavity vulnerable to liquid) IP68 / IP69K (Fully sealed hermetic design)
Cosmetic Gel & Sweat Resistance Poor (Rapid flaking and green copper oxidation) Excellent (96H Synthetic Sweat & Oil Immersion Passed)
Plating Spec & Thickness Standard Gold 0.05μm - 0.10μm Custom Nickel-Free 1.50μm Gold / Rhodium Base
Cleaning & Hygiene Maintenance Difficult (Gels clog inside deep port crevices) Zero Effort (Flush-to-surface design wipes clean instantly)

Proven Field Results & Metrics

By implementing the CTP custom hermetic magnetic contact array, the device successfully eliminated customer returns due to oxidation and contact failures.

50,000+
Mating Cycles Lifespan
≤ 20 mΩ
Ultra-Low Contact Resistance
2.0 Amps
Continuous Charging Current

Frequently Asked Questions

Why is standard gold plating not enough for facial skincare devices?

Skincare creams, gels, and serums contain active ions, salts, and organic acids. When electrical current passes during charging, these compounds accelerate galvanic corrosion. Standard thin gold plating has microscopic pinholes where the chemicals penetrate and attack the underlying copper. CTP uses a dense, nickel-free 1.50μm thick gold plating over a noble metal barrier to completely block chemical attack.

Does the magnet field affect the electronic components inside the beauty tool?

No. Our engineers precisely calculate the magnetic circuit design. We utilize custom N52 neodymium magnets with optimized magnetic shielding, ensuring strong breakaway retention force (up to 400g) while maintaining zero magnetic interference with internal sensors or PCBA circuits.
