Electrical Performance: 12V DC / 5A High-Current Fast Charging Rating
Magnetic Force: 4.6N Robust Retention Force (Ensures Reliable Blind-Mating & Anti-Vibration)
Mating Durability: 20,000+ Lifecycle Cycles (High-Longevity Continuous Connection)
Magnet Material: Premium NdFeB Permanent Magnets for Constant Coupling
Green Compliance: 100% Certified RoHS, REACH, and Halogen-Free (HF) Eco-Friendly Material

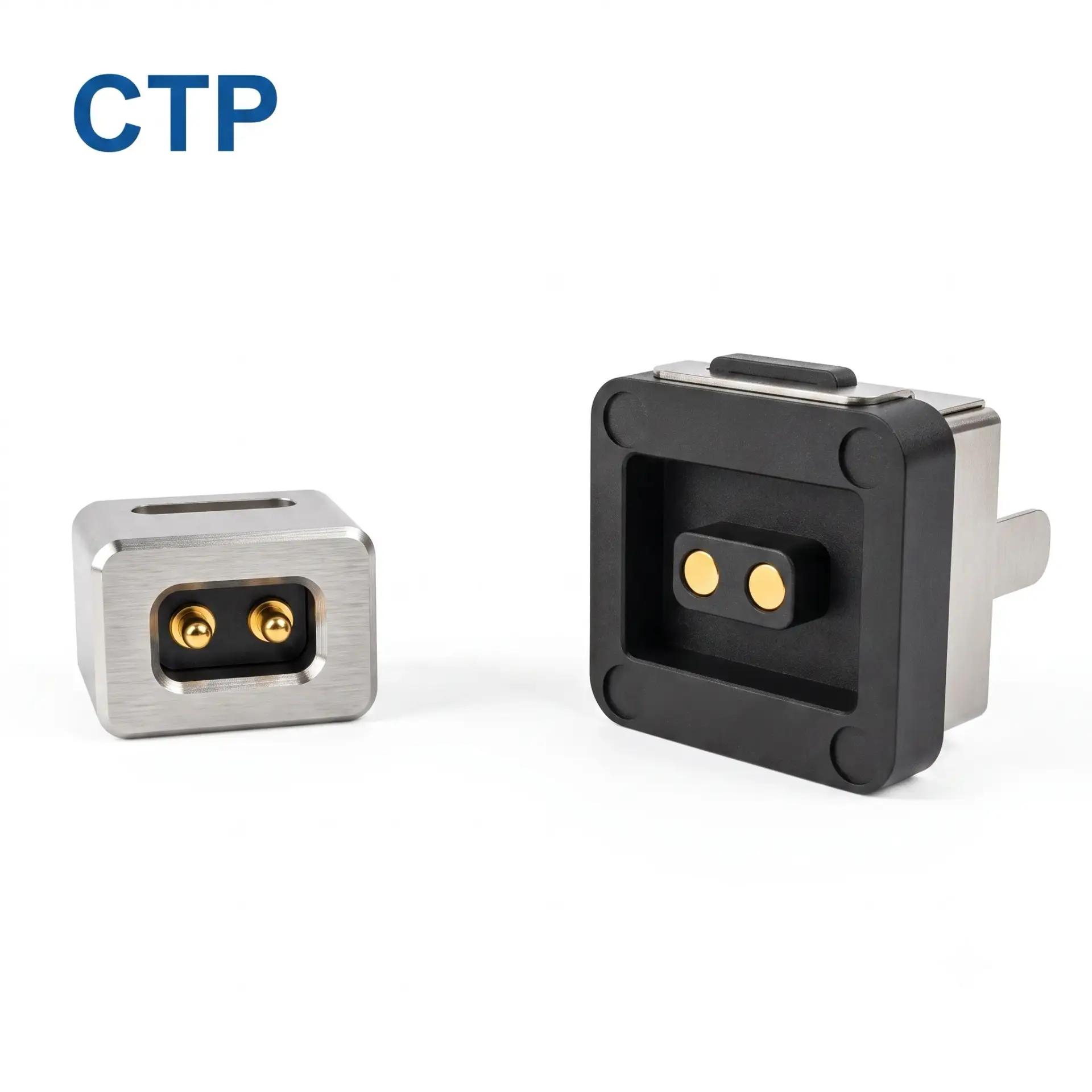

CTP is a premier, engineering-driven manufacturer specializing in high-precision magnetic pogo pin interconnect mechanisms. Our 2-Pin Magnetic DC Power Connector Set delivers robust, zero-force mating tailored for modern low-profile and high-current hardware configurations.
Engineered with customized permanent magnets and intelligent polarization architecture, this system guarantees accurate self-alignment, foolproof directional coupling (Poka-Yoke), and comprehensive dual-circuit polarity safety protection. Compared to traditional barrel jacks, CTP’s magnetic solution ensures exceptional longevity, safe breakaway capabilities, and reliable power transmission.
Supports up to 12V 5A fast-charging ratings on the interconnect interface, engineered specifically for zero-power-loss transmission.
Rigorously tested to withstand 20,000+ continuous mating cycles while maintaining stable contact resistance.
Utilizes premium NdFeB permanent rare-earth magnets to automatically guide docking and block incorrect reverse pairing.

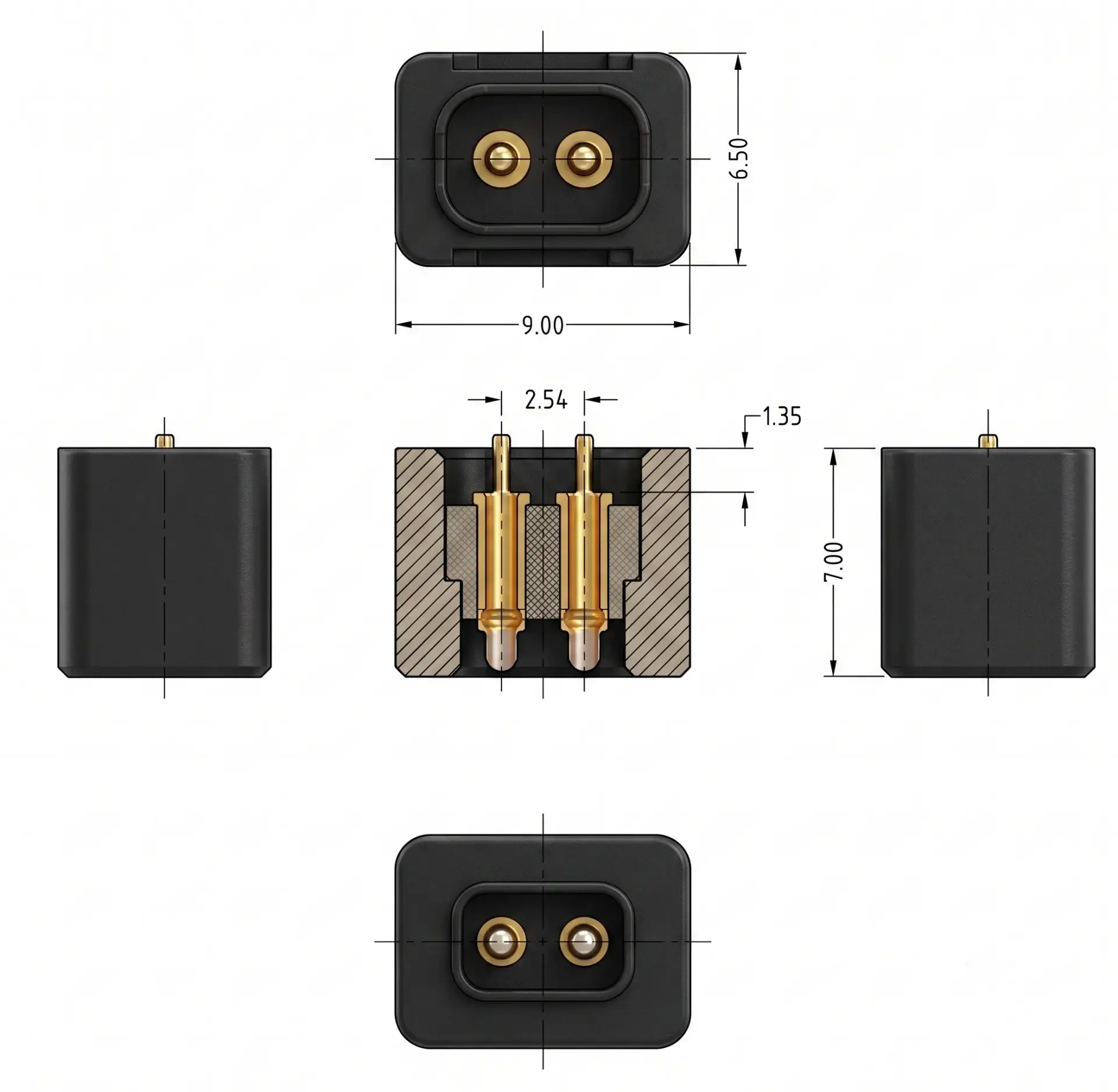

CTP 2-Pin Magnetic DC Power Connector — Male Part (Plug)
| Rated Voltage & Current | 12V DC / 5.0A Max (High-Current Fast Charging) |
|---|---|
| Contact Force | 120g ± 20% at 1.0 mm working stroke |
| Contact Resistance | ≤ 50 mΩ (Low-Resistance Interface) |
| Mechanical Longevity | ≥ 20,000 Mating Cycles |
| Target Applications | Smart LED Lighting, Precision Wireless Mice, Weatherproof Outdoor Cameras, IoT Peripherals |

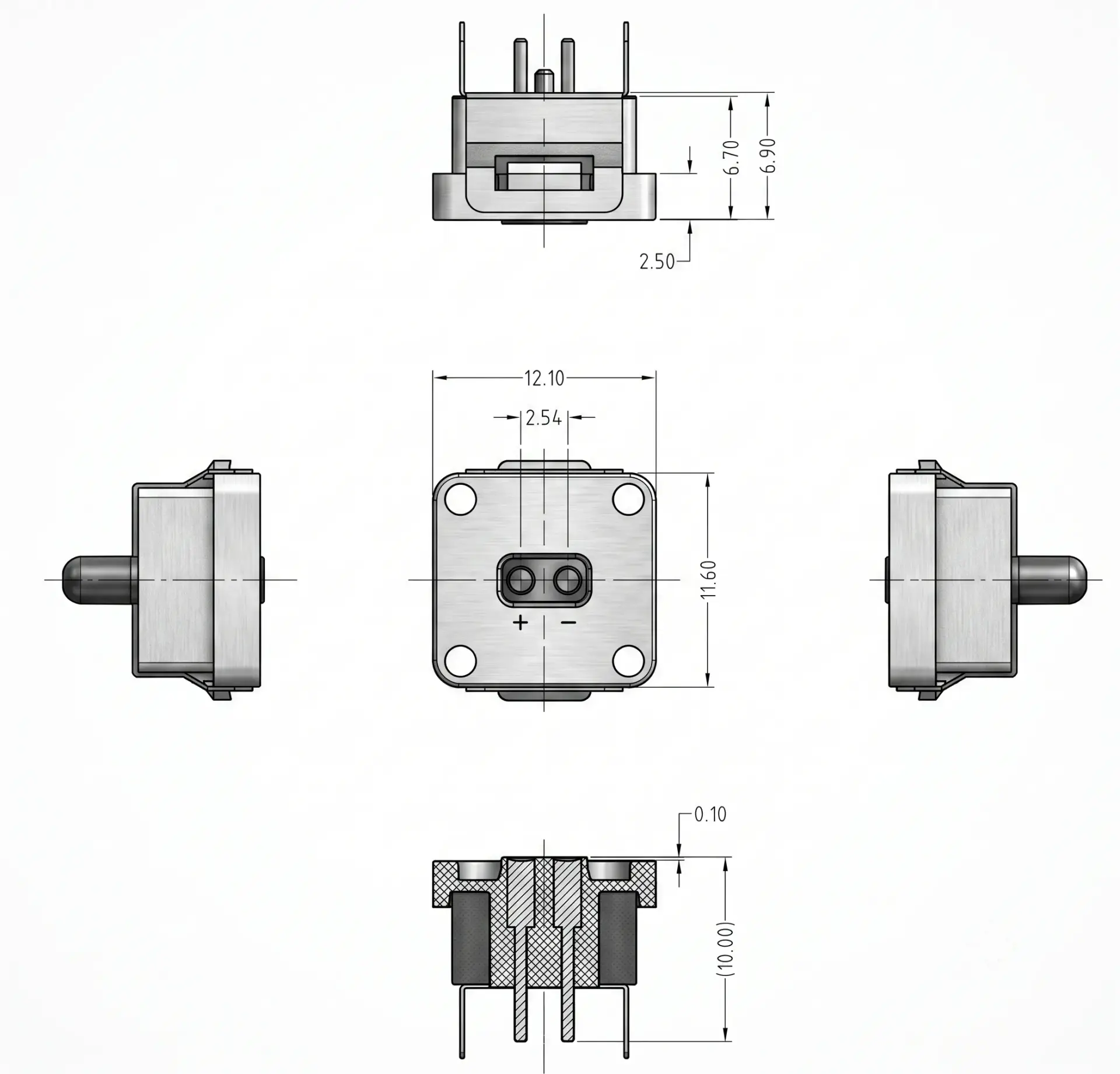

CTP 2-Pin Magnetic DC Power Connector — Female Part (Receptacle)
| Rated Voltage & Current | 12V DC / 1.0A Continuous (Cross-compatible with 5A Mating System) |
|---|---|
| Contact Resistance | ≤ 50 mΩ Max |
| Magnet Material | Premium NdFeB Permanent Rare-Earth Magnets |
| Environmental Standards | RoHS Compliant, REACH Certified, Halogen-Free (HF) |
| Target Applications | Smart LED Systems, Ergonomic Peripherals, Weatherproof Outdoor Cameras, Medical Wearables |
