Pin Map and Contact Functions
Define the function of each power, return, signal, control or detection contact.
Custom 2-pin magnetic pogo connector with dual side mounting ears for mechanically retained device integration. The mounting holes provide defined attachment points for the connector housing, while magnetic elements assist capture and retention and the spring-loaded contacts provide electrical contact with controlled Z-axis compliance. Final mounting tolerances, pin assignment and electrical ratings are defined by the approved project drawing.
Product specifications should be reviewed together with the customer device, PCB, electrical assignment and mechanical mating conditions.
Define the function of each power, return, signal, control or detection contact.
Provide voltage, continuous current, peak current and required signal conditions.
Provide available length, width, height, PCB area and required mating orientation.
Provide application, expected quantity, environment and customer validation requirements.
Review the product-specific description, technical parameters, contact arrangement, mechanical structure and project conditions below.

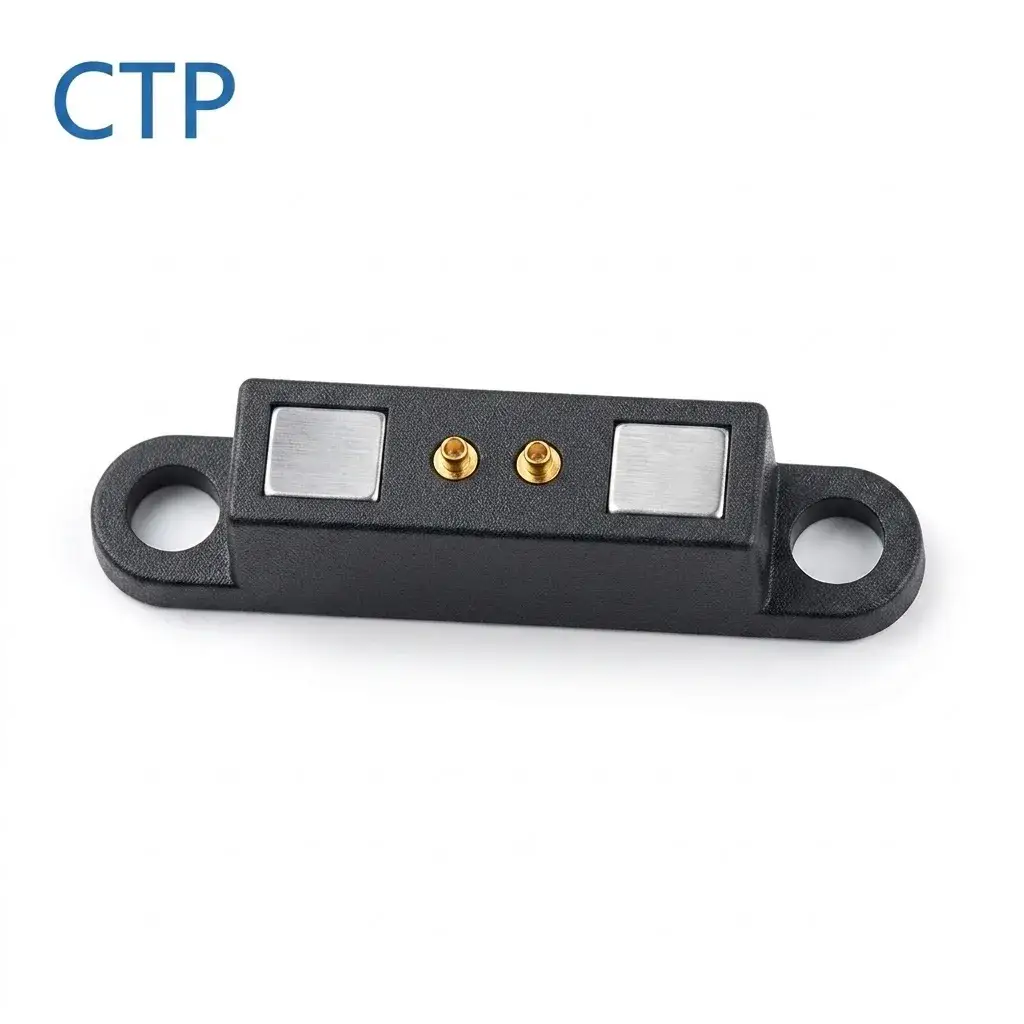

This 2-pin magnetic pogo connector combines a single-row spring-contact interface with dual side mounting ears for mechanical installation. The structure is intended for removable device interfaces where the connector body requires defined attachment points to a housing, bracket or internal mechanical structure.
The mounting ears provide mechanical attachment points, the magnetic elements assist capture and retention during mating, and the spring-loaded contacts provide electrical contact with controlled Z-axis compliance. Final seating, alignment and positional tolerance should be established by the approved mechanical interface rather than by magnetic force or pogo-pin compression alone.
The connector uses two spring-loaded contact positions arranged in a single row. The electrical function of each contact is not defined by pin count alone and should be assigned through the customer-approved pin map.
A mounting ear is integrated at each side of the connector housing, with one visible through hole per ear. These features allow the connector body to be mechanically attached independently from the spring-contact interface.
Hole diameter, center distance, fastener type, datum function and mounting tolerance must be confirmed from the approved mechanical drawing.
The connector architecture separates magnetic, mechanical and electrical functions:
Magnetic capture should not be treated as confirmation of final mechanical seating or valid electrical connection. These conditions must be established through the complete device interface.
The dual-ear structure can be useful when the connector needs a defined mechanical attachment to the device rather than relying only on adhesive, housing capture or contact compression.
The visible through holes may be incorporated into a screw, pin, rivet or other mechanical fastening strategy depending on the approved design. Their exact function should be defined before enclosure or PCB tooling is released.
The presence of mounting holes does not by itself establish precision positioning. If the holes are intended to act as locating datums, their diameter, positional tolerance, mating hardware and relationship to the connector contact interface should be specified on the approved mechanical drawing.
A robust design should define which features control final X/Y position, Z seating and rotational orientation rather than assigning these functions to magnetic attraction or pogo-pin compression.
The spring-loaded contacts should operate within the working stroke defined by the approved connector drawing. Working stroke is different from total available travel and should be selected together with enclosure stack-up and mating tolerance.
The pogo pins should provide controlled electrical-contact compliance and should not be used as the final structural stop for the mating assembly.
A 2-pin connector does not automatically define a charging interface. The two contacts may be assigned according to the electrical architecture of the customer device, and the final functions should be documented in the approved pin map.
Current capability should be evaluated across the complete conductive path:
Source → PCB / cable → termination → pogo pin → contact interface → target → load.
Contact diameter alone is not sufficient to establish a current rating. Termination resistance, conductor geometry, mating resistance and temperature rise should be reviewed for the complete interface.
Magnetic elements positioned around the contact interface assist the mating process by providing capture and retention. Magnetic requirements should be selected according to device use conditions rather than simply maximizing magnetic force.
Capture force, retention force, separation force and peel force can represent different mechanical requirements and should be evaluated independently when relevant to the project.
| Product Type | Magnetic Pogo Pin Connector |
|---|---|
| Pin Count | 2 Pin |
| Contact Arrangement | Single Row |
| Housing Style | Elongated Housing with Dual Mounting Ears |
| Mounting Feature | Two Side Through Holes |
| Mounting-Hole Diameter | Defined by Approved Drawing |
| Hole Center Distance | Defined by Approved Drawing |
| Datum / Locating Function | To Be Confirmed |
| Termination | To Be Confirmed |
| Mating Configuration | To Be Confirmed |
| Working Stroke | Defined by Approved Drawing |
| Total Travel | Available on Request |
| Spring Force | Project-Specific |
| Pin Assignment | Defined by Customer Pin Map |
| Current Capability | Project-Specific |
| Voltage | Project-Specific |
| Magnetic Requirement | Project-Specific |
| Cycle Life | To Be Confirmed |
| Plating Specification | Defined by Approved Specification |
| Environmental Rating | To Be Confirmed at Assembly Level |
This architecture can be evaluated for removable electrical interfaces where the connector body needs two mechanical attachment points around the contact area. The dual mounting ears can support integration into a housing, bracket or other defined mechanical structure.
Final application suitability depends on installation space, mounting geometry, pin assignment, electrical conditions, mating tolerance, magnetic behavior and environmental requirements.
The visible connector structure does not establish an IP rating or waterproof performance. If environmental sealing is required, the connector interface, mounting holes, housing, gasket strategy and completed enclosure should be evaluated as one assembly.
Salt-spray performance, corrosion requirements, operating temperature and environmental ratings should only be published when supported by an approved specification or validation data.
CTP can review project-specific requirements around connector dimensions, mounting-ear geometry, hole position, contact assignment, mating structure, electrical conditions and magnetic behavior.
Final connector configuration should be released through an approved 2D drawing and, where required, a 3D mechanical model.
They provide mechanical attachment points for integrating the connector housing into the device. The final fastening method and hole dimensions should be defined by the approved mechanical drawing.
Not necessarily. Their locating function depends on the mechanical design, hole tolerance, mating hardware and datum strategy. The presence of through holes alone does not establish precision positioning.
No. Pin count does not define electrical function. The two contacts should be assigned according to the approved customer pin map.
Current capability is project-specific and should be evaluated across the complete conductive path, including the termination, spring contacts, mating interface and customer-side conductors.
The magnets assist capture and retention. Final alignment and seating should be controlled by the mechanical features and datum strategy of the completed device interface.
Mounting-ear geometry and hole dimensions can be reviewed as part of a custom connector project, subject to mechanical feasibility and the approved drawing.
No environmental rating should be inferred from the visible connector geometry alone. Waterproof or IP performance must be defined and validated at the completed assembly level.
Provide the available installation space, mounting dimensions, pin map, voltage, current, working stroke, mating tolerance, magnetic requirements, operating environment, termination requirement and available 2D or 3D drawings.
If this dual-mounting-ear magnetic connector architecture is close to your device design, submit your project requirements for engineering review. Include the mounting geometry, electrical conditions, available installation space and any available drawings.
Request Custom Quote & Samples | Browse Magnetic Connectors
This product page presents a CTP magnetic connector configuration for engineering reference. Final dimensions, electrical ratings, materials, magnet structure, sealing level and reliability targets are not universal values; they are confirmed against the approved drawing, installation condition and model-specific validation plan.
CTP reviews the application and prepares a drawing or specification for approval before sample production. Test scope, acceptance criteria and report format should identify the model, sample status, method, conditions, result and review date.
Yes. Customization can cover geometry, contact layout, materials, cable construction, magnetic structure, sealing and appearance. Feasibility depends on the application and approved specification.
No. Current, voltage, resistance, temperature rise and ingress-protection claims apply only to the identified model and stated test conditions.
Timing is confirmed after the drawing, materials, tooling, sample quantity, validation scope and production requirements have been reviewed.
Submit your Pin Map, electrical requirements, available space, mating structure and project quantity for connector selection or custom development review.
