Case Study: Custom Waterproof Pogo Pin Charging Solution for High-End Electric Toothbrushes

Discover how CTP's custom IP68 waterproof Pogo Pin connectors solve charging bottlenecks for premium personal care devices.

The Engineering Challenge in Personal Care Devices

Designing charging interfaces for smart electric toothbrushes presents a unique set of engineering bottlenecks. Traditional plug-in ports (like Micro-USB or standard Type-C) often fail in this specific application due to critical factors:

  • Highly Humid Environments: Bathrooms are consistently damp. Exposed traditional ports are extremely vulnerable to water ingress, leading to short circuits or severe oxidation.
  • Hygiene and Cleaning Blind Spots: Plug-in cavities easily accumulate dirt and toothpaste residue, creating a breeding ground for bacteria.
  • Friction in User Experience: Modern consumers expect a seamless "drop-and-charge" experience without fumbling with cables in wet environments.

The CTP Solution: Crevice-Free & 100% Waterproof

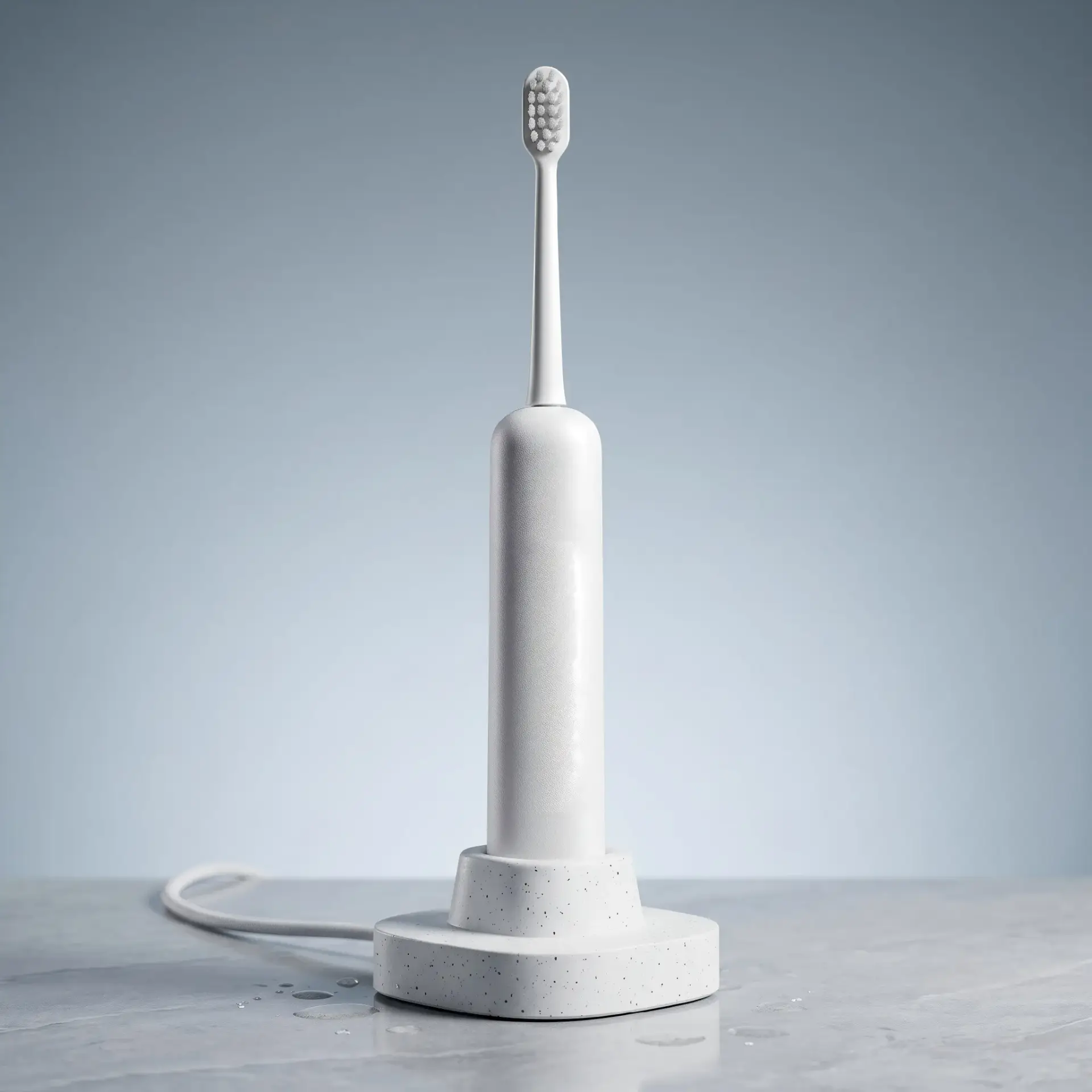

High-end electric toothbrush using CTP waterproof magnetic pogo pin charging base
Fig 1: Seamless, waterproof "drop-and-charge" experience powered by CTP Pogo Pins.

To overcome these challenges, CTP (Shenzhen Yongtan Electronics) engineered a bespoke, highly integrated Pogo Pin charging solution that elevates both functionality and product aesthetics.

  • IPX7 / IP68 Ultimate Waterproofing: By utilizing a crevice-free, solid-pin design combined with our advanced insert-molding technology, our Pogo Pins achieve true IP68 waterproof sealing.
  • Anti-Corrosion Gold Plating: Contact points are treated with a premium, thickened gold-plating process, ensuring stable conductivity even after months of exposure to humid, salty environments.
  • Minimalist Aesthetics: The flush, flat surface design allows the toothbrush base to remain incredibly sleek, perfectly matching top-tier consumer electronics ID design.

Technical Precision & OEM Customization

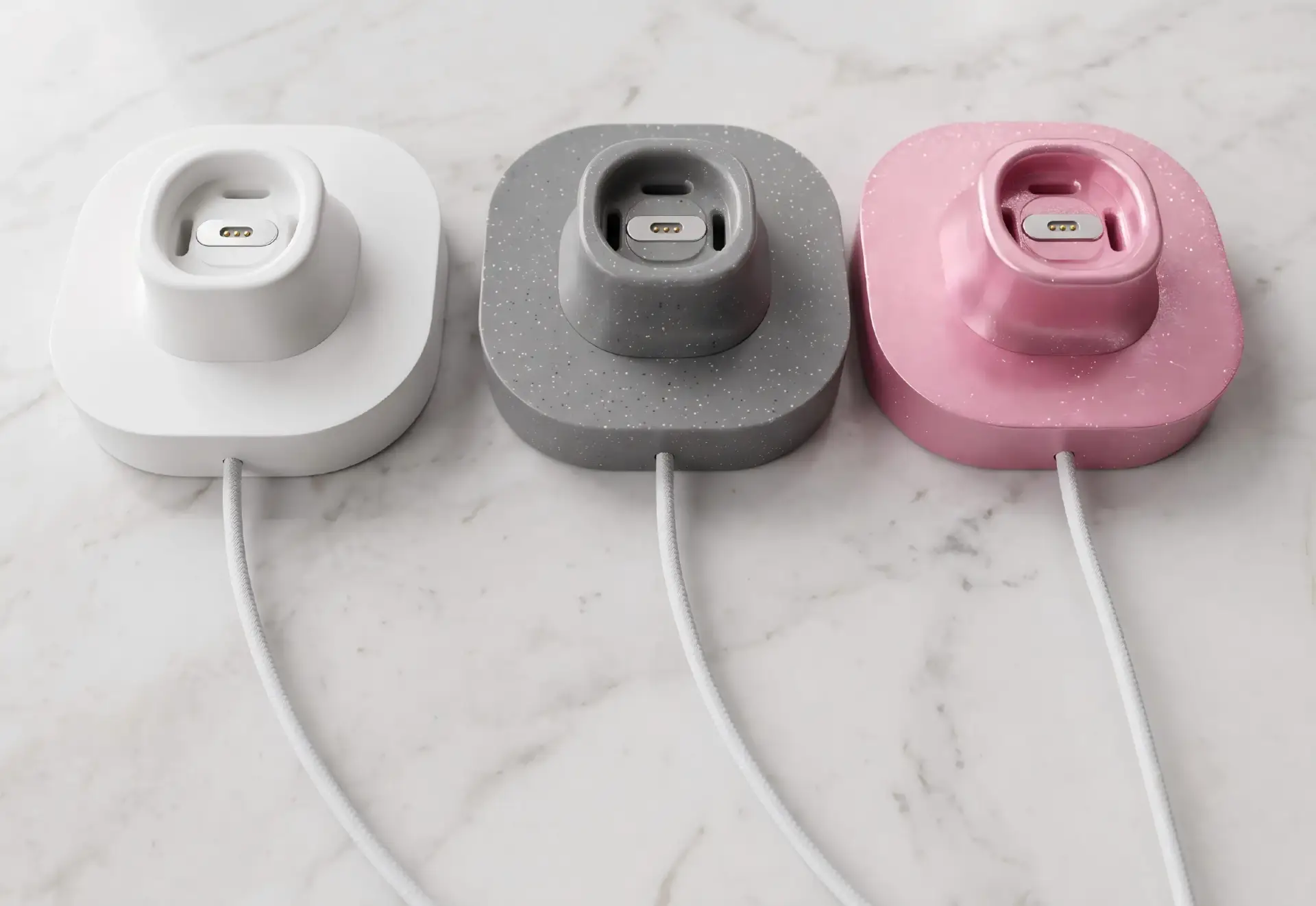

Custom multi-color electric toothbrush charging bases with precision gold-plated pogo pins
Fig 2: Micrometer-level precision and bespoke color-matching for premium device lines.

Translating a conceptual design into mass production requires world-class manufacturing capabilities. As a source manufacturer, CTP provides complete end-to-end customization.

  • Precision Contacts: Our CNC machining ensures micrometer-level precision, providing optimal contact force without scratching the toothbrush body.
  • Multi-Material & Color Matching: Whether your product features a matte gray, soft pink, or classic white finish, our factory can perfectly match the housing material (ABS/PC) and color.
  • 10,000+ Cycle Reliability: Rigorously lab-tested, fatigue-resistant spring structures withstand over 10,000 compression cycles for years of flawless daily charging.

Key Benefits at a Glance

💧

IPX7/IP68

Ultimate Waterproof Rating

🛡️

Corrosion Resist

Thickened Gold-Plating

⚡

Seamless UX

True Drop-and-Charge

⚙️

10,000+ Cycles

Guaranteed Lifespan

Partner with a Source Manufacturer

Are you designing the next generation of smart personal care devices? Don't let traditional charging ports compromise your product's reliability. Contact our engineering team today.

Get a Free Custom Quote & Samples
