Pin Receptacles: The Backbone of Your Interconnect System

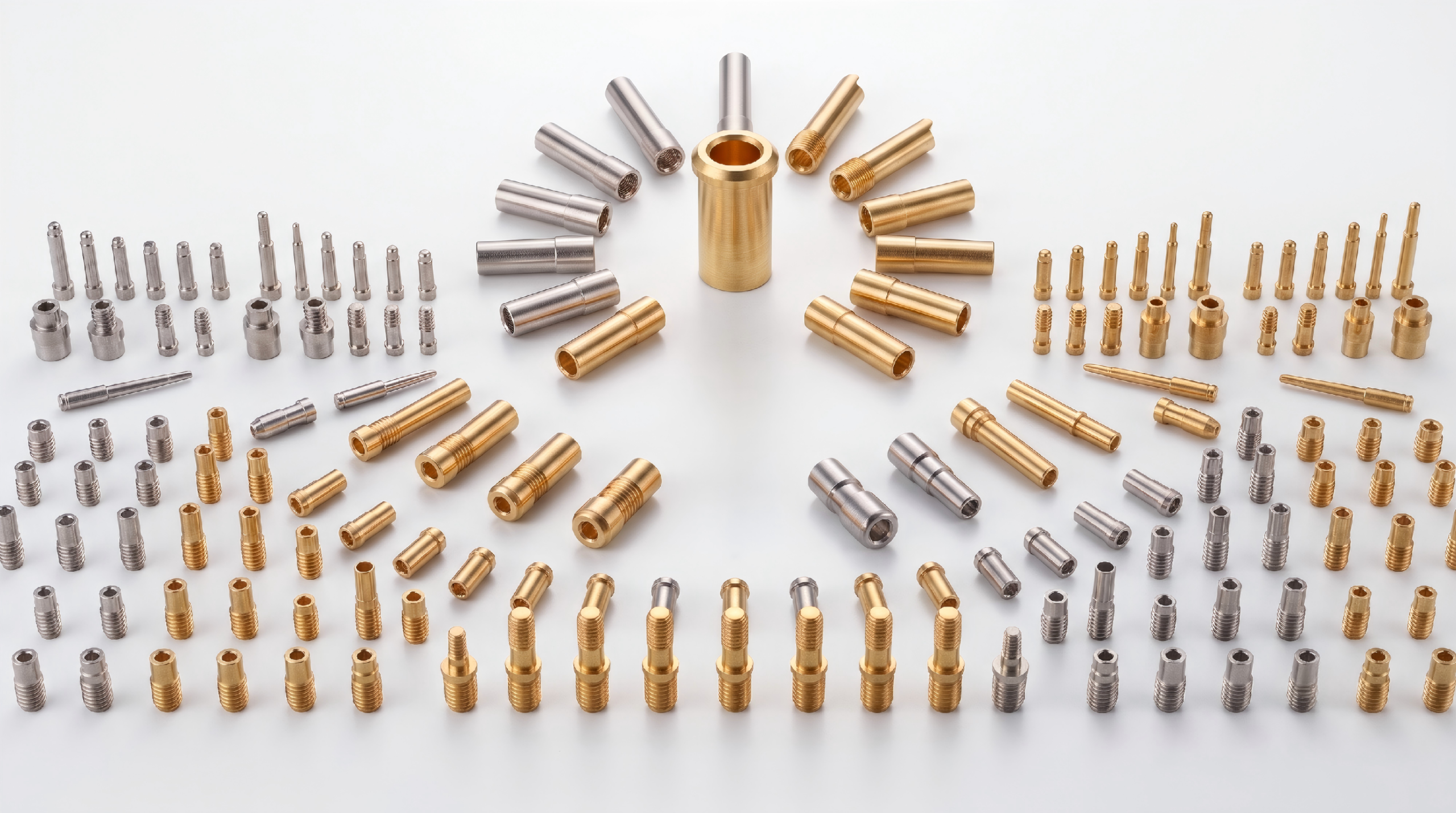

The fundamental component driving reliable electrical connections across a wide array of high-performance electronic equipment is the pin receptacle. Frequently referred to by hardware engineers as PCB sockets, micro-plugs, or connector jacks, machined pin receptacles have built an industry-wide reputation for their unparalleled reliability and design versatility.

Whether utilized as discrete components or integrated into dense connector arrays, these receptacles are the critical elements that make modern devices and internal modules fully pluggable, facilitating seamless repair, rapid replacement, and modular upgrades.

Why Critical Applications Demand Machined Pin Receptacles

When engineering for mission-critical applications, standard stamped connectors simply do not suffice. High-stakes environments demand the superior performance of a precision-machined receptacle.

The secret to this superior performance lies in the internal architecture: these receptacles are fitted with a highly engineered stamped, multi-finger contact. This design creates a robust interface featuring redundant points of contact and a completely gas-tight connection.

Even after extended exposure to harsh environmental changes, severe shock, and relentless vibration, these contacts maintain their characteristic normal force. The performance benchmarks of premium machined pin receptacles include:

• Exceptional Mating Lifespan: Guaranteed to function reliably for a minimum of 1,000 insertion and extraction cycles (often scaling much higher depending on the mating pin’s size, shape, and plating finish).
• Vibration Resistance: Zero electrical discontinuity greater than 1 microsecond when subjected to extreme 10-2000 HZ, 15G vibration.
• Shock Tolerance: Maintains flawless signal integrity even under 50G of mechanical shock.

Precision Manufacturing Processes & Tight Tolerances

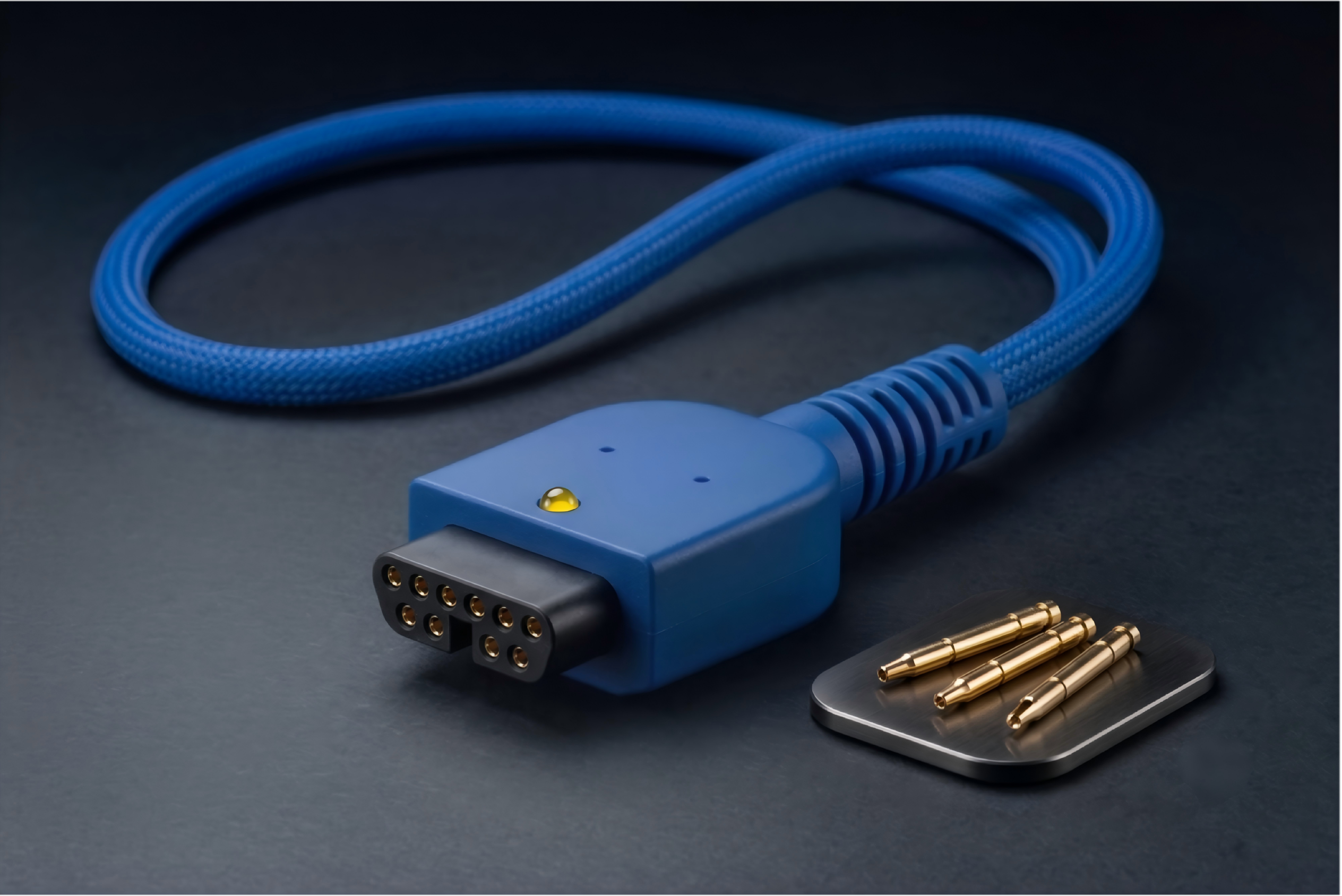

Leading connector manufacturers—especially those producing mission-critical medical cables and complex interconnect systems—rely heavily on the exactness of machined receptacles during their advanced assembly processes. Common integration methods include insert molding, press-fit assembly, and ultrasonic welding.

These demanding manufacturing techniques require precision-machined contacts to guarantee that external diameters (and occasionally overall lengths) are controlled to microscopic tolerances. Failure to maintain these tolerances can lead to improper fits between the pin and the plastic housing, ultimately resulting in flashing or critical assembly failures.

By utilizing state-of-the-art precision machining, critical tolerances can be strictly held to ±.0005” (0.0127mm) or better, ensuring a flawless fit and supreme mechanical stability every single time.

Versatile Pin Receptacle Options & Design Flexibility

A major advantage of machined pin receptacles is their internal contact material. Typically fitted with a premium Beryllium Copper (BeCu) contact, they offer an exceptionally wide mating lead acceptance range.

• Stamped vs. Machined: While traditional stamped receptacles and standard socket products are limited to a fairly tight acceptance range of just .004” (0.102mm), machined pin receptacles offer a vastly superior range—generally accommodating variations of .010″ (0.254mm), and in specialized designs, up to .020” (0.508mm).

This expanded range is incredibly valuable for hardware designers, as it easily absorbs mating lead diameter variations caused by manufacturing tolerances or sudden component alterations.

This structural versatility allows engineers to achieve diverse design objectives:

• Board-to-Board Connections: Multiple receptacle styles are available for robust power applications on a .100” (2.54mm) pitch or greater.
• High-Speed Signal Transmission: Ultra-fine pitch options down to 0.8 mm are perfectly suited for low-level, dense PCB layouts.
• Surface Mount Integration: Advanced SMT and HSMT (High-Speed Surface Mount Technology) options provide maximum design flexibility, allowing I/O and component connectivity to be fully integrated with automated SMT circuit board production lines.

Assembly Applications: From Discrete to Volume Placement

Machined pin receptacles are highly adaptable to your specific manufacturing floor requirements. They can be deployed as discrete connectors for the simple plugging and unplugging of PC board components. For prototyping or low-volume runs, they can be manually loaded in preparation for standard wave soldering or press-fitting (using a specialized shell style).

When transitioning to mass production, efficiency is key. For high-volume automated placement, these receptacles are fully compatible with socket carriers or tape and reel packaging—serving as tremendous labor-saving solutions that accelerate throughput and reduce manufacturing overhead.
