Pin Map and Contact Functions
Define the function of each power, return, signal, control or detection contact.

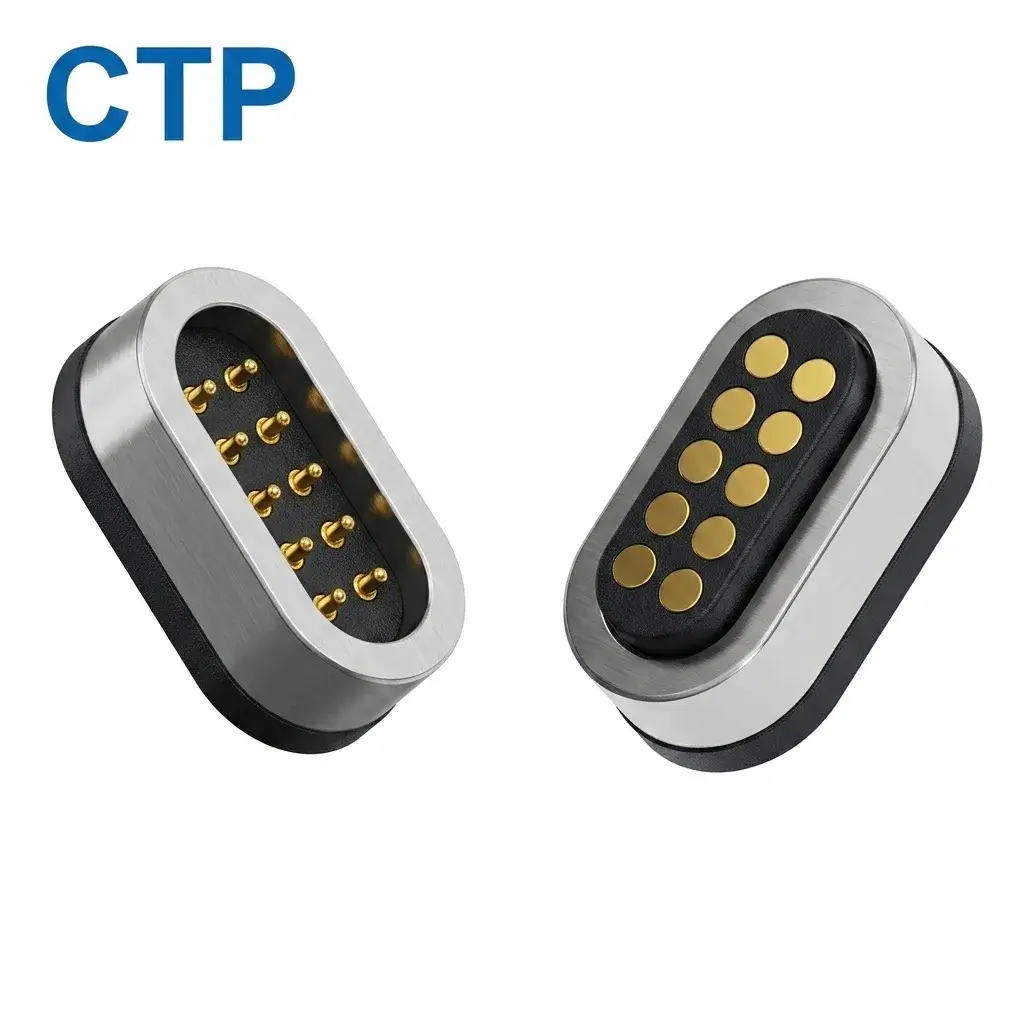

CTP® 2.0mm Pitch 10-Pin Dual Row Magnetic Pogo Pin Connector Engineered for advanced consumer electronics and rugged industrial control systems, this ultimate 10 pin dual row magnetic pogo pin connector features a high-density multi-channel design. It guarantees ultra-secure docking and robust power/data transmission.
Design: Dual-row high-density layout with a precise 2.0mm pitch for optimized space utilization.
Performance: Exceptional 5A rated current, 24V voltage, and multi-channel data capabilities.
Docking: Ultra-strong 500-1500g magnetic force ensuring a rock-solid physical connection.
Durability: Ultra-long mechanical lifespan tested up to 50,000 mating cycles with an IP54 rating.
Product specifications should be reviewed together with the customer device, PCB, electrical assignment and mechanical mating conditions.
Define the function of each power, return, signal, control or detection contact.
Provide voltage, continuous current, peak current and required signal conditions.
Provide available length, width, height, PCB area and required mating orientation.
Provide application, expected quantity, environment and customer validation requirements.
Review the product-specific description, technical parameters, contact arrangement, mechanical structure and project conditions below.
Our premium 10 pin dual row magnetic pogo pin connector provides the ultimate reliable high-density solution for advanced consumer electronics and industrial control systems. By integrating a multi-channel 2.0mm pitch design with exceptional magnetic strength, this 10 pin dual row magnetic pogo pin connector guarantees highly stable power delivery and seamless data transmission in demanding environments.

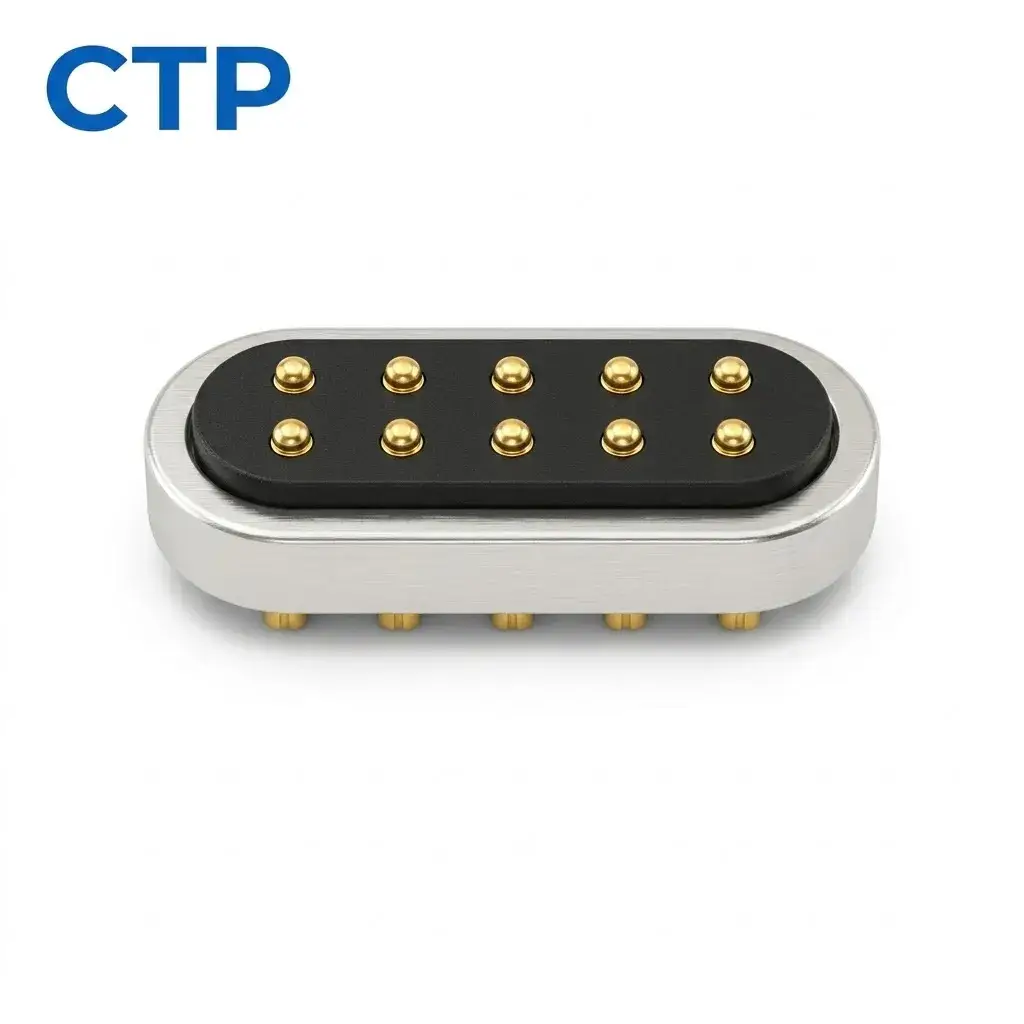

Maximizing functionality within limited space is a critical engineering challenge. That is exactly why our 10 pin dual row magnetic pogo pin connector utilizes a highly efficient dual-row layout with a precise 2.0mm pitch. The built-in heavy-duty magnets provide an astonishing 500-1500g magnetic force, ensuring rock-solid, precise, and automatic blind-mating. This ultra-strong physical connection perfectly protects the 10 independent channels, safely handling a 5A rated current and 24V voltage without any risk of accidental disconnection.
Furthermore, this high-performance 10 pin dual row magnetic pogo pin connector is built for extreme daily longevity. With an exceptional mechanical life of up to 50,000 mating cycles and an ultra-low contact resistance of ≤ 30mΩ, it guarantees efficient, heat-free energy and data transfer. The standard IP54 waterproof rating combined with superior 3-5U” surface plating and 48-hour salt spray testing ensures excellent durability against dust and moisture.
Review the detailed parameters of our industry-leading 10 pin dual row magnetic pogo pin connector below:
| Specification / Feature | Details & Parameters |
|---|---|
| Product Name | Dual Row 10-Pin 2.0mm Pitch Magnetic Pogo Pin |
| Pin Count | 10 Pin |
| Core Selling Point | Dual-row high density / 10-channel / 2.0mm Pitch |
| Rated Current / Voltage | 5A / 24V |
| Contact Resistance | ≤ 30mΩ |
| Magnetic Force | 500-1500g (Ultra-strong docking) |
| Mating Cycles (Life) | 50,000 cycles |
| Waterproof Rating | IP54 |
| Surface Plating | 3-5U” |
| Salt Spray Test | 48 Hours |
| Primary Applications | Consumer Electronics, Industrial Control |
Upgrade your sophisticated devices with our robust 10 pin dual row magnetic pogo pin connector solutions. Contact the CTP manufacturing team today for product samples or to discuss your specific high-density project requirements!
Submit your Pin Map, electrical requirements, available space, mating structure and project quantity for connector selection or custom development review.
