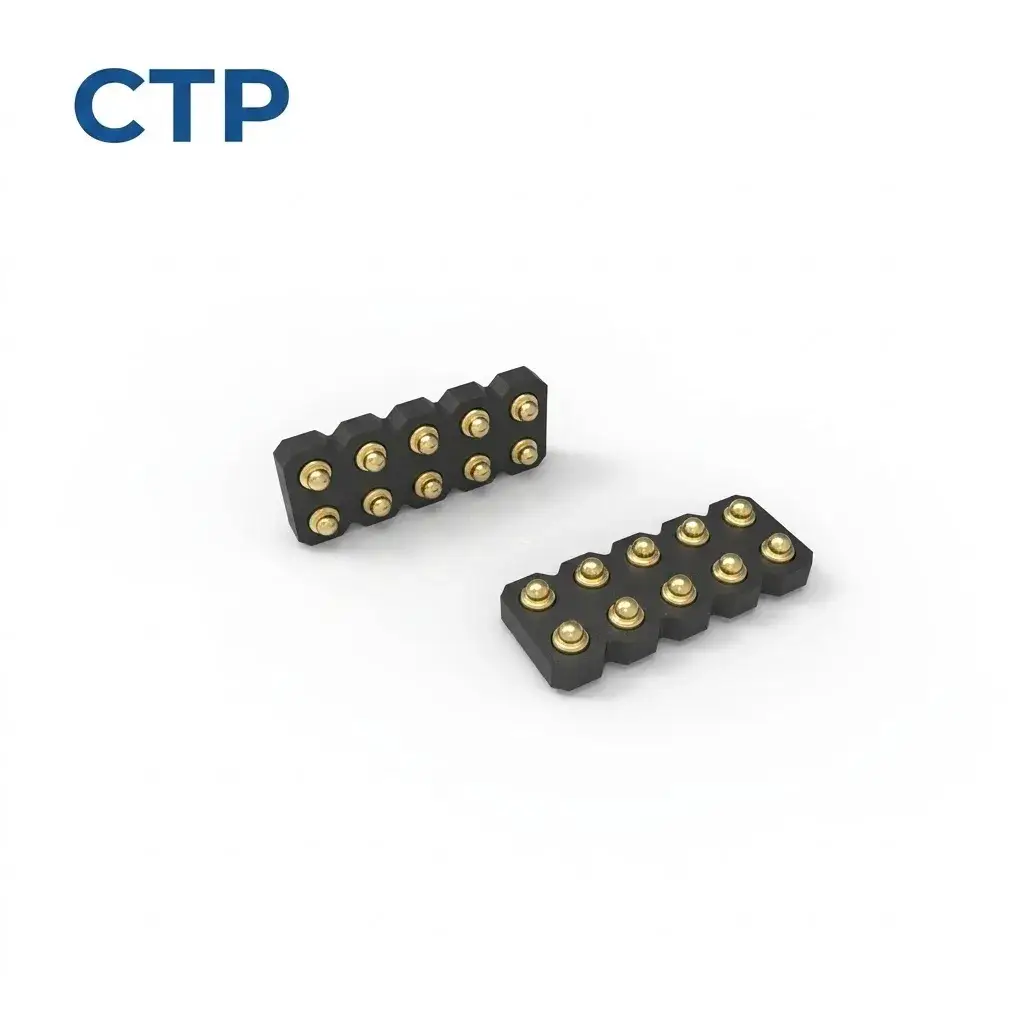

Custom 10-pin SMT pogo pin connector with a 5 × 2 dual-row spring-contact arrangement for PCB-mounted electrical interfaces. The integrated housing keeps ten contact positions in one connector assembly, while each pogo contact provides electrical connection and controlled Z-axis compliance. Contact pitch, PCB footprint, working stroke, electrical ratings and pin assignment are defined by the approved project drawing.
Determine whether the project needs a single spring-loaded contact, a multi-contact connector assembly, a specific mounting method or a customer-defined mechanical interface.
A single spring-loaded contact supplied for integration into the customer’s PCB, housing or connector structure.
Browse Individual Pogo Pins →A complete multi-contact assembly combining pogo pins, insulating housing, contact pitch and mounting structure.
Browse Connector Assemblies →Choose through-hole, surface mount, right-angle, double-ended or customer-specific termination.
Review Engineering Guides →Define travel, spring force, current path, housing, Pin Map and device-side mechanical constraints.
Submit Project Requirements →This 10-pin SMT pogo pin connector integrates ten spring-loaded electrical contacts into a compact 5 × 2 dual-row housing for PCB-mounted interfaces. Compared with installing individual pogo pins separately, the connector housing maintains the contact array as one mechanical assembly and can simplify PCB and mating-interface integration.
Each spring-loaded contact provides electrical connection and controlled compliance along the contact axis. Final connector position, compression and mechanical seating should be established by the approved PCB, housing and mating-interface design rather than by using the pogo contacts as structural stops.
The connector contains ten spring-loaded contacts arranged as five positions per row across two parallel rows. This 5 × 2 architecture provides multiple independently assignable electrical contact positions within a compact rectangular connector body.
Contact pitch, row spacing, pin numbering and mating-pad geometry should be confirmed from the approved connector drawing before PCB layout release.
This product is a multi-contact pogo pin connector assembly rather than an individual spring-loaded contact. The molded housing maintains the relative position of the ten contacts as one connector unit.
For engineers, this means the connector should be evaluated as a complete contact array including the housing geometry, PCB footprint, mating target, working stroke and tolerance stack-up.
The connector is intended for surface-mount PCB integration. The final PCB land pattern, solder-pad dimensions, component orientation and assembly process should follow the approved connector and PCB drawings.
Reflow conditions, solder paste design and production inspection requirements should be confirmed before volume assembly. SMT construction alone does not establish a specific reflow-temperature capability.
The 10-contact connector should be reviewed together with the PCB position, mating target and enclosure structure. Mechanical datums or housing features should establish the final connector relationship to the mating surface.
Each pogo contact should operate within the working stroke specified by the approved connector drawing. Working stroke is different from total available travel.
The mating structure should establish the final mechanical stop so that the pogo pins provide controlled electrical-contact compliance rather than carrying structural loads beyond the intended contact motion.
Ten physical contact positions do not determine their electrical functions. Power, return, signal, sensing, control or identification functions should be assigned through the approved customer pin map.
Pin numbering and mating orientation should also be defined clearly in the connector drawing to avoid ambiguity between the PCB layout and target contact interface.
Current capability should be evaluated across the complete conductive path:
Source → PCB → SMT termination → pogo contact → mating interface → target conductor → load
Neither the number of pins nor the visible contact diameter is sufficient to establish an approved current rating. PCB copper, solder joints, contact resistance, mating resistance and temperature rise should be included in the electrical review.
Where multiple contacts are connected in parallel, current sharing between contacts must also be considered.
A 10-pin connector provides ten available electrical contacts, but pin count does not define data bandwidth.
Signal capability should be evaluated from the actual pin map, return paths, contact pitch, contact geometry, PCB routing, mating target and the complete electrical channel.
| Product Type | Pogo Pin Connector |
|---|---|
| Pin Count | 10 Pin |
| Contact Layout | 5 × 2 |
| Row Configuration | Dual Row |
| Housing Shape | Compact Rectangular |
| Mounting Type | SMT / SMD |
| PCB Integration | Surface Mount |
| Contact Pitch | Defined by Approved Drawing |
| Row Spacing | Defined by Approved Drawing |
| PCB Footprint | Defined by Approved Drawing |
| Mating Interface | To Be Confirmed |
| Working Stroke | Defined by Approved Drawing |
| Total Travel | Available on Request |
| Spring Force | Project-Specific |
| Pin Assignment | Defined by Customer Pin Map |
| Current Capability | Project-Specific |
| Voltage | Project-Specific |
| Contact Resistance | To Be Confirmed |
| Signal Capability | Requires Interface Review |
| Data Capability | Requires Complete Channel Review |
| Contact / Plating Specification | Defined by Approved Specification |
| Cycle Life | To Be Confirmed |
| Reflow Requirements | To Be Confirmed |
| Operating Temperature | Project-Specific |
This 5 × 2 connector architecture can be evaluated for PCB-mounted electrical interfaces that require ten independently assigned spring-contact positions in one compact connector block.
Application suitability depends on the mating target, available PCB area, contact assignment, working stroke, electrical conditions, mechanical tolerance and operating environment.
Environmental performance should be defined according to the completed assembly. Contact plating, corrosion requirements, cycle life, operating temperature and PCB assembly conditions should only be specified when supported by approved material specifications or validation data.
SMT construction does not by itself establish lead-free, halogen-free, corrosion-resistant or high-temperature performance.
CTP can review project-specific pogo connector requirements including contact count, contact arrangement, housing dimensions, PCB footprint, working stroke, spring-force condition, pin assignment and mating-interface geometry.
Final dimensions and electrical specifications should be released through an approved connector drawing and PCB interface definition.
The connector uses a 5 × 2 dual-row arrangement, providing ten independently assignable spring-contact positions in one connector housing.
It is a pogo pin connector assembly. Ten spring-loaded contacts are integrated into one housing rather than installed as ten separate individual pogo pins.
SMT refers to surface-mount PCB integration. The final land pattern, solder-pad dimensions and assembly conditions should follow the approved connector and PCB drawings.
Contact pitch should be confirmed from the approved product drawing before PCB layout release. Do not rely on appearance alone when defining the land pattern.
Current capability is project-specific and should be evaluated across the complete path from the PCB and SMT joints through the pogo contacts and mating interface to the target load.
Parallel contacts can be evaluated for a specific design, but current sharing, PCB copper, solder-joint resistance, contact resistance and temperature rise must be considered.
Pin count alone does not define data capability. Signal performance depends on the pin map, return paths, contact geometry, PCB transitions and the complete electrical channel.
Provide the PCB space, contact arrangement, pin map, voltage, current, working stroke, mating-pad geometry, assembly requirements and available 2D drawings or PCB layout files.
If this 10-pin dual-row SMT pogo connector architecture is close to your PCB interface requirements, submit the pin map, PCB layout, available space, electrical conditions and mating-interface requirements for engineering review.
Request Custom Quote & Samples | Browse Pogo Pin Connectors
This product page presents a CTP magnetic connector configuration for engineering reference. Final dimensions, electrical ratings, materials, magnet structure, sealing level and reliability targets are not universal values; they are confirmed against the approved drawing, installation condition and model-specific validation plan.
CTP reviews the application and prepares a drawing or specification for approval before sample production. Test scope, acceptance criteria and report format should identify the model, sample status, method, conditions, result and review date.
Yes. Customization can cover geometry, contact layout, materials, cable construction, magnetic structure, sealing and appearance. Feasibility depends on the application and approved specification.
No. Current, voltage, resistance, temperature rise and ingress-protection claims apply only to the identified model and stated test conditions.
Timing is confirmed after the drawing, materials, tooling, sample quantity, validation scope and production requirements have been reviewed.
The development route depends on whether an existing pogo pin can be used, modified or assembled into a customized multi-contact connector.
Confirm product type, dimensions, stroke, force, current, mounting and project quantity.
Match the contact geometry, tail structure, housing, Pin layout and installation method.
Confirm dimensional tolerances, material requirements and sample configuration.
Review electrical, mechanical, assembly and application-specific validation conditions.
Submit the product type, dimensions, mounting method, working stroke, spring-force condition, electrical requirements, Pin Map, PCB layout and available drawings for project review.
