Magnetic Mating Interface
Confirm Pin count, contact allocation, magnet arrangement, connector shape, polarity control and mating direction.

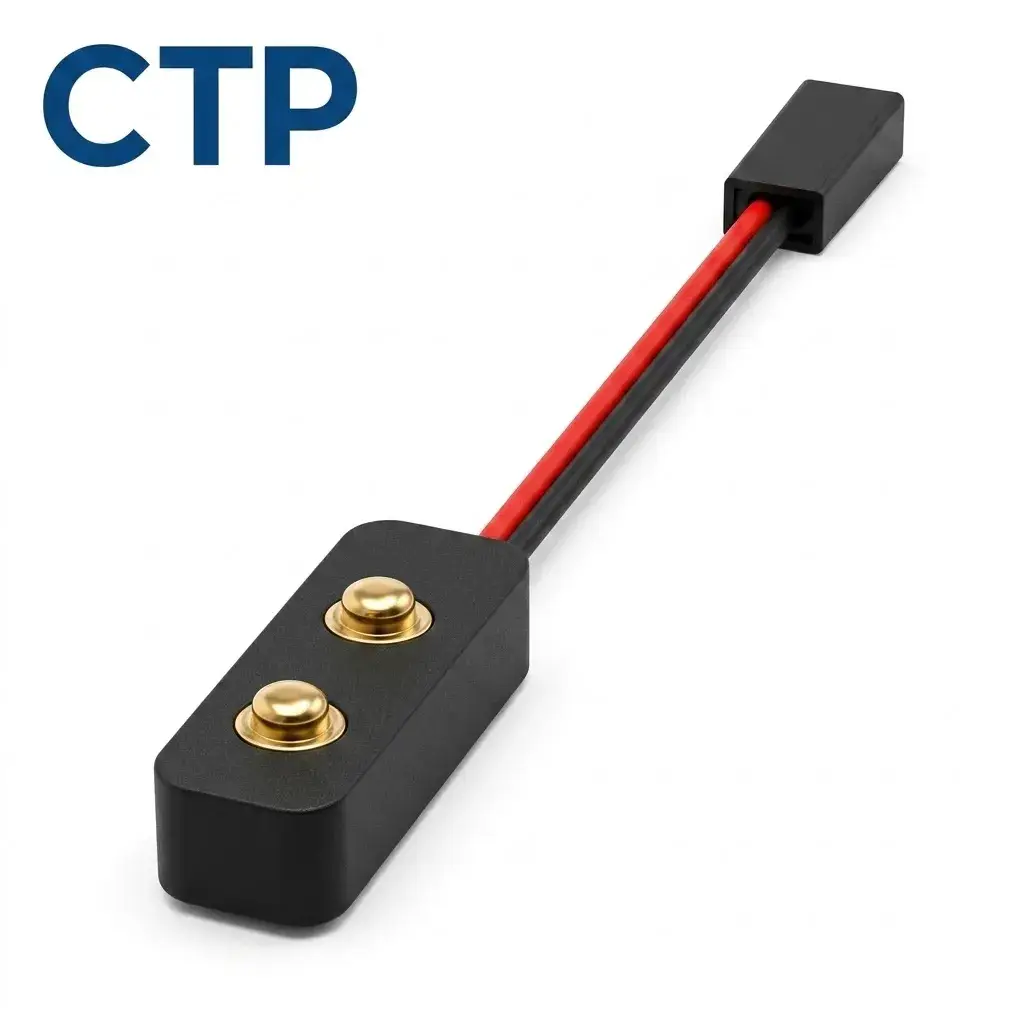

This custom 2-pin magnetic pogo pin data cable combines a compact two-contact magnetic interface with a molded opposite-end termination for project-specific signal, detection, communication or low-voltage connections. The contact allocation, cable length, conductor gauge, wiring sequence, magnetic retention, connector housing, strain relief and device-side mating interface can be customized according to the approved schematic and mechanical drawing.
The finished assembly must define the magnetic mating component, internal conductor arrangement, cable construction and the opposite-end connection as one complete electrical system.
Confirm Pin count, contact allocation, magnet arrangement, connector shape, polarity control and mating direction.
Define cable length, conductor count, wire specification, shielding requirements, jacket and flexibility.
Select USB, Type-C, DC plug, bare wire, terminal, PCB connection or another customized termination.
Confirm installation space, outlet direction, strain relief, exposed-contact state and user operation.
Engineering Summary: This custom 2-pin magnetic pogo pin data cable integrates a compact two-contact magnetic interface, a two-conductor cable and a molded opposite-end termination. The electrical function, wiring sequence, cable construction and mating interface must be confirmed together in the approved project drawing.
The magnetic end provides two project-defined electrical contact paths. These contacts may be assigned to a signal and reference path, detection circuit, low-voltage power connection or another application-specific function.
The pogo contacts provide the electrical contact pressure, while the magnetic structure assists capture and retention. Final alignment, working compression and mechanical stopping should be controlled by the connector housing and device-side structure.
| Assembly Element | Engineering Function |
|---|---|
| Two-contact magnetic interface | Provides two project-defined electrical paths |
| Pogo pin contacts | Provide controlled spring-loaded contact pressure |
| Magnetic structure | Assists connector capture and retention |
| Two-conductor cable | Connects the magnetic interface to the opposite termination |
| Molded termination | Provides the project-specific opposite-end connection |
| Strain relief | Reduces bending and pulling loads at the cable exits |
Two physical contacts do not define one universal communication method. The contact allocation must be confirmed from the customer schematic and internal cable wiring.
| Possible Architecture | Typical Definition |
|---|---|
| Signal or data interface | One signal path and one reference return |
| Detection interface | Detection signal and reference return |
| Power interface | Positive supply and return |
| Custom interface | Two customer-defined electrical functions |
Engineering Note: Two contacts do not automatically provide simultaneous charging and standard data transmission. Any combined function requires a defined circuit architecture and complete application validation.
| Specification | Product Definition |
|---|---|
| Product Type | Magnetic pogo pin data cable assembly |
| Pin Count | 2 Pin |
| Contact Allocation | Project-specific |
| Opposite-End Termination | Molded or customized according to the drawing |
| Cable Length | Customized according to installation requirements |
| Wire Gauge | Selected according to signal, current and cable length |
| Data Function | Confirmed through complete cable and device validation |
| Magnetic Retention | Defined according to device structure and release direction |
| Environmental Protection | Dependent on the complete connector and device assembly |
Yes, when one contact is used for the signal and the other provides the required reference path, and when the complete cable and device channel are validated.
Not automatically. Simultaneous power and data requires a project-specific circuit or communication architecture.
No. Wire color may indicate polarity in some designs, but the final function must be confirmed from the approved wiring diagram.
Yes. The opposite end can be evaluated as a molded termination, terminal, connector, PCB interface or another project-specific structure.
Submit your wiring diagram, signal requirements, cable dimensions and device-side drawing through the Get Quote & Samples page.
CTP can review the two-contact electrical definition, cable construction, magnetic interface, molded termination and device-side mating structure before prototype development.
This product page presents a CTP magnetic cable assembly configuration for engineering reference. Final dimensions, electrical ratings, materials, magnet structure, sealing level and reliability targets are not universal values; they are confirmed against the approved drawing, installation condition and model-specific validation plan.
CTP reviews the application and prepares a drawing or specification for approval before sample production. Test scope, acceptance criteria and report format should identify the model, sample status, method, conditions, result and review date.
Yes. Customization can cover geometry, contact layout, materials, cable construction, magnetic structure, sealing and appearance. Feasibility depends on the application and approved specification.
No. Current, voltage, resistance, temperature rise and ingress-protection claims apply only to the identified model and stated test conditions.
Timing is confirmed after the drawing, materials, tooling, sample quantity, validation scope and production requirements have been reviewed.
A reference product image is not enough to define a cable assembly. Confirm the following information before drawing, sampling or quotation review.
The exact project route depends on whether an existing product can be used, modified or requires a new cable assembly design.
Confirm product scope, Pin Map, cable length, termination, quantity and application conditions.
Match magnetic contacts to conductors, source-side wiring and device-side functions.
Confirm dimensions, outlet direction, cable construction and required sample configuration.
Review electrical, mechanical and environmental conditions before production approval.
Submit the magnetic-end structure, electrical functions, cable length, conductor requirements, opposite-end interface, installation space and available drawings for project review.
Review related cable assemblies by contact count, shape, termination and project supply scope.
