Pin Map and Contact Functions
Define the function of each power, return, signal, control or detection contact.

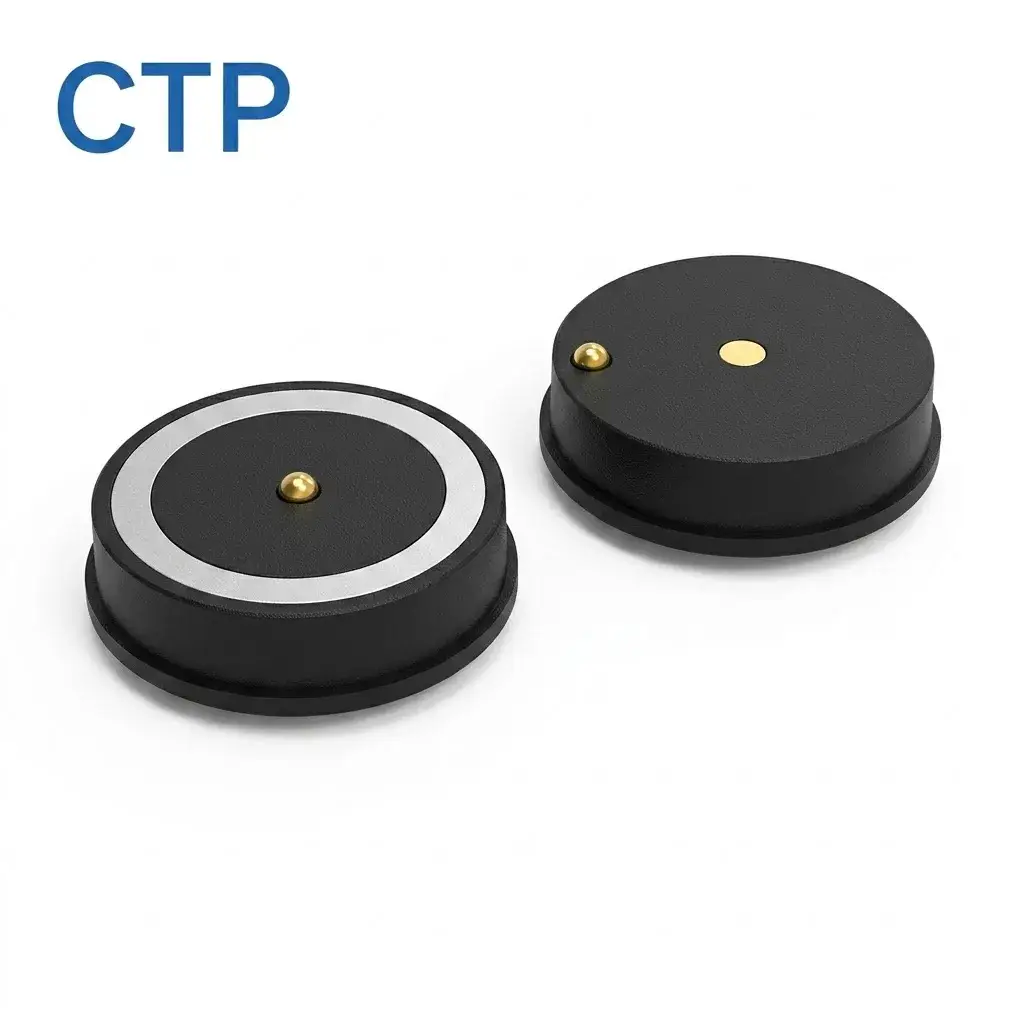

CTP® 8mm Fast Charging 2-Pin 10A Magnetic Pogo Pin Connector Engineered specifically for advanced smartwatches and high-power wearables, this ultimate 2 pin 10A magnetic pogo pin connector features an 8mm footprint and a specialized fast-charging design. It guarantees exceptionally fast power delivery and secure docking.
Design: 8mm form factor tailored for smartwatches with advanced fast charging capabilities.
Performance: Unmatched 10A rated current, 12V voltage, and an ultra-low contact resistance of ≤ 30mΩ.
Durability: Ultra-long mechanical lifespan with up to 50,000 mating cycles.
Protection: Standard IP54 waterproof rating and rigorous 48-hour salt spray testing.
Product specifications should be reviewed together with the customer device, PCB, electrical assignment and mechanical mating conditions.
Define the function of each power, return, signal, control or detection contact.
Provide voltage, continuous current, peak current and required signal conditions.
Provide available length, width, height, PCB area and required mating orientation.
Provide application, expected quantity, environment and customer validation requirements.
Review the product-specific description, technical parameters, contact arrangement, mechanical structure and project conditions below.
Our premium 2 pin 10A magnetic pogo pin connector provides the ultimate reliable high-power solution for modern smartwatches and fast-charging wearables. By integrating a specialized 8mm design with extreme current capabilities, this 2 pin 10A magnetic pogo pin connector guarantees exceptionally rapid power delivery and a seamless charging experience for high-end consumer devices.
Achieving fast charging in compact wearable devices is a significant engineering challenge. That is exactly why our 2 pin 10A magnetic pogo pin connector utilizes a highly advanced internal structure capable of carrying an astonishing 10A rated current. The built-in heavy-duty magnets provide a steady 500-800g magnetic force, allowing for fast, automatic, and secure blind-mating alignment. This ensures the connection remains stable even under extreme power loads.
Furthermore, this high-performance 2 pin 10A magnetic pogo pin connector is built for extreme daily longevity. With an exceptional mechanical life of up to 50,000 mating cycles and an ultra-low contact resistance of ≤ 30mΩ, it guarantees safe and efficient energy transfer without overheating. The standard IP54 waterproof rating combined with rigorous 48-hour salt spray testing ensures excellent corrosion resistance against sweat and moisture.

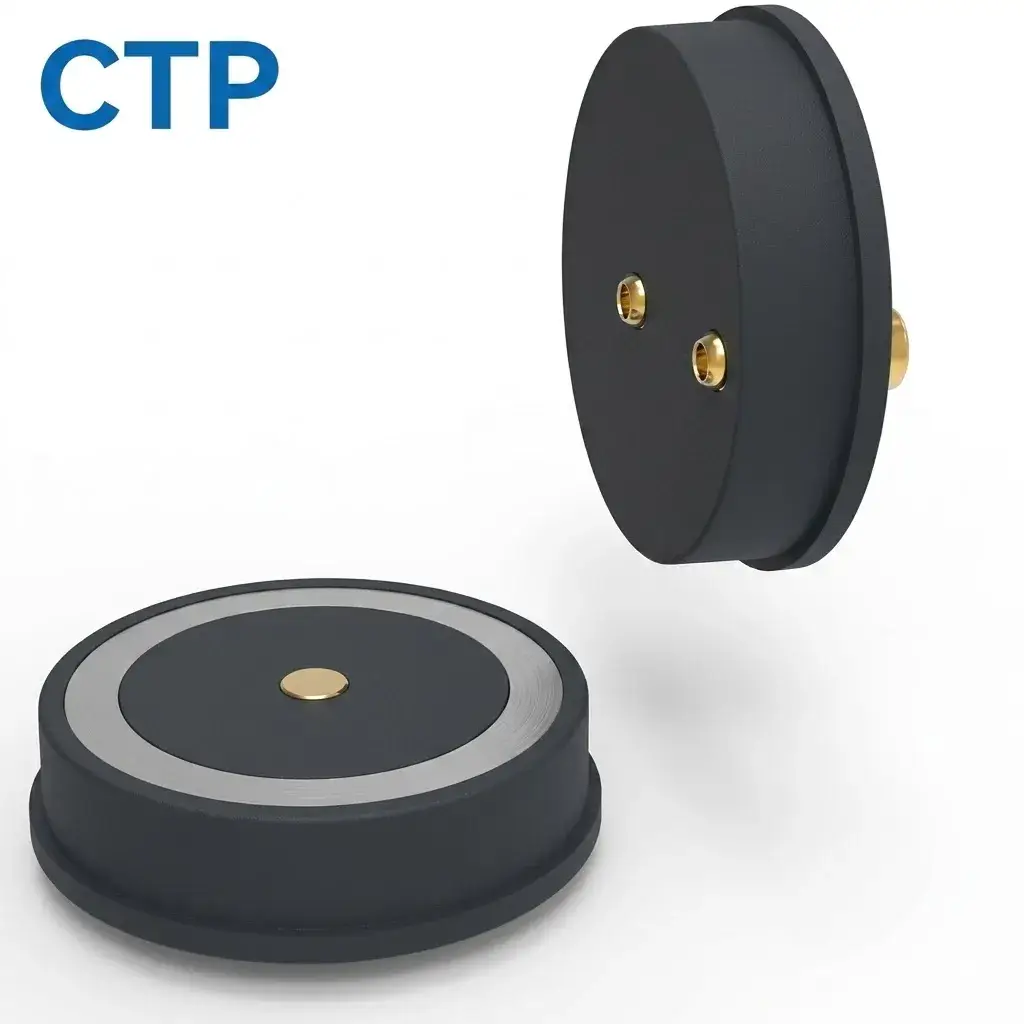

Review the detailed parameters of our industry-leading 2 pin 10A magnetic pogo pin connector below:
| Specification / Feature | Details & Parameters |
|---|---|
| Product Name | High Current 8mm Magnetic Pogo Pin |
| Pin Count | 2 Pin |
| Core Selling Point | Fast charging design / 10A Ultra-high current |
| Rated Current / Voltage | 10A / 12V |
| Contact Resistance | ≤ 30mΩ |
| Magnetic Force | 500-800g |
| Mating Cycles (Life) | 50,000 cycles |
| Waterproof Rating | IP54 |
| Surface Plating | 3-5μ” (Micro-inches) |
| Salt Spray Test | 48 Hours |
| Primary Applications | Smartwatches, Fast-charging Wearables |
Upgrade your smartwatch’s fast-charging capabilities with our robust 2 pin 10A magnetic pogo pin connector solutions. Contact the CTP manufacturing team today for samples or custom high-current project inquiries!
Submit your Pin Map, electrical requirements, available space, mating structure and project quantity for connector selection or custom development review.
