Magnetic Mating Interface
Confirm Pin count, contact allocation, magnet arrangement, connector shape, polarity control and mating direction.
A custom round magnetic charging cable with a recessed concentric cable head and separate cylindrical mating component. The actual electrical contact count, center-contact function, outer-ring function, return path, voltage, current capability, cable construction and opposite-end termination are defined according to the approved project drawing.
The finished assembly must define the magnetic mating component, internal conductor arrangement, cable construction and the opposite-end connection as one complete electrical system.
Confirm Pin count, contact allocation, magnet arrangement, connector shape, polarity control and mating direction.
Define cable length, conductor count, wire specification, shielding requirements, jacket and flexibility.
Select USB, Type-C, DC plug, bare wire, terminal, PCB connection or another customized termination.
Confirm installation space, outlet direction, strain relief, exposed-contact state and user operation.
ROUND MAGNETIC CHARGING CABLE ASSEMBLY

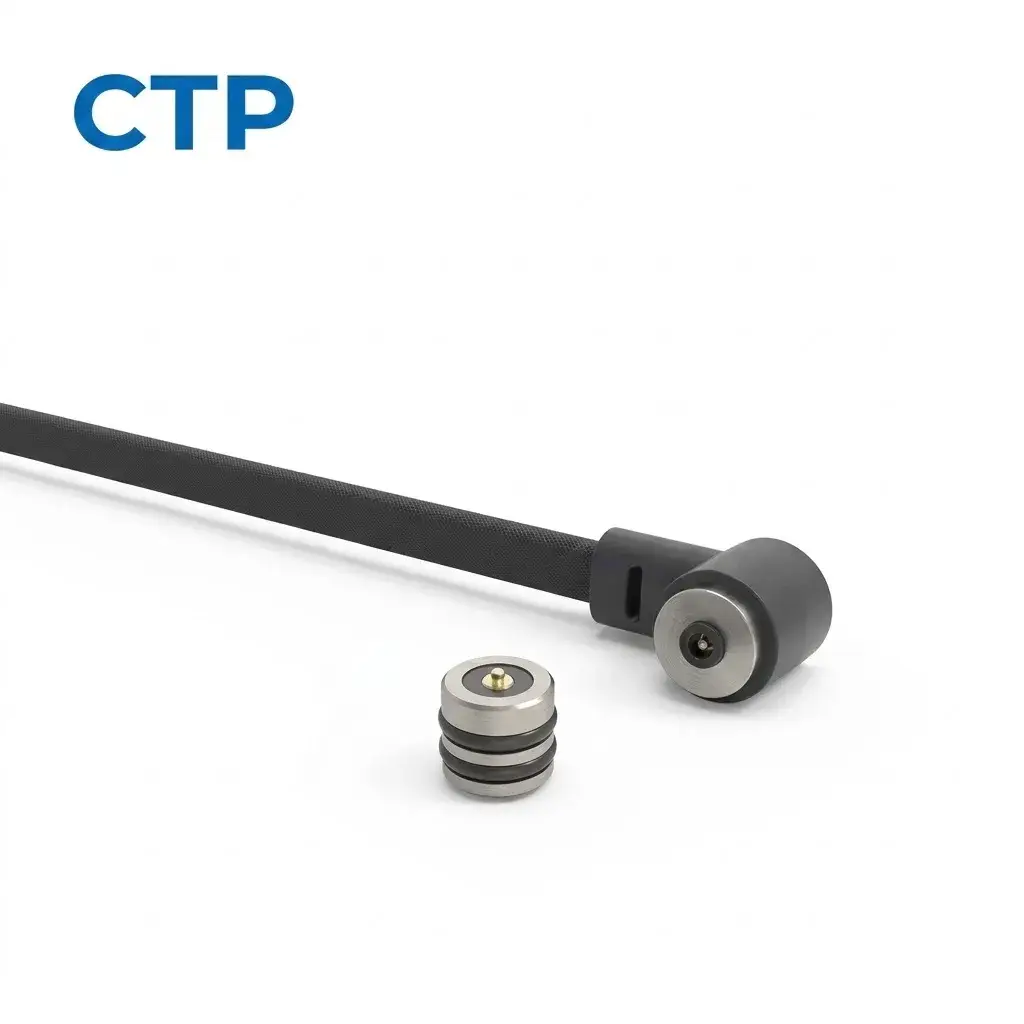

This round magnetic charging cable combines an integrated cable-side magnetic head with a separate cylindrical mating component. The visible interface uses a recessed circular face with a central contact position and concentric surrounding structure.
The actual electrical contact count must be defined by the approved wiring diagram. The central contact is visible, but the electrical function of the concentric outer ring cannot be confirmed from appearance alone.
Magnets primarily assist capture and retention. Final position, alignment and seating should be controlled by the circular mating geometry and mechanical datums rather than magnetic attraction alone.
The cable-side head uses a recessed round mating face, while a separate cylindrical component forms the opposite side of the magnetic interface.
The concentric geometry can support a compact detachable charging interface, but rotational freedom, polarity behavior and mechanical keying must be confirmed from the approved design.
Interface Shape Round / circular
Mating Geometry Concentric recessed interface
Separate Mate Cylindrical mating component visible
Primary Function Project-defined charging
One central contact position is visible, but the complete electrical contact count should not be determined from the product image alone.
A charging interface requires a complete conductive loop. The approved wiring diagram should therefore identify the central-contact function, outer-ring function, polarity and complete return path.
Central Contact Function → To Be Confirmed
Outer Ring Function → To Be Confirmed
Complete Return Path → Defined by Approved Wiring Diagram
If the outer ring participates in the electrical return path, its material, surface finish, mating resistance and cable connection should be included in the complete electrical validation.
A circular interface should not automatically be described as a 360-degree electrical connection.
Rotational mating depends on the electrical symmetry of the center contact and outer ring, polarity requirements, mechanical keying and the device-side mating architecture.
Any claim regarding unrestricted rotational mating should be confirmed by the approved electrical and mechanical drawings.
The magnetic structure assists approach and retention after the mating components engage.
Capture force, retention force, separation force and peel force describe different mechanical conditions and should be specified separately where required.
Stronger magnetic attraction is not automatically better. Retention should be balanced with cable direction, device mass, enclosure strength and the intended release behavior.
Final alignment and seating should be controlled by the mechanical mating geometry.
The image confirms a central contact position, but the internal spring-loaded structure cannot be established from appearance alone.
If a pogo contact is used, the approved drawing should separately define working stroke, total travel, spring force and installed compression.
Working stroke represents the intended operating compression and should not be confused with maximum total travel.
The contact should provide electrical connection and controlled compliance rather than serve as the primary mechanical hard stop.
Charging-current capability cannot be determined from the circular connector size or visible contact diameter alone.
Power Source → Opposite-End Termination → Cable Conductors → Magnetic Cable Head → Contact Interface → Confirmed Return Path → Device PCB → Charging Circuit → Battery / Load
Vdrop = I × Rpath
Ploss = I² × Rpath
Cable length, wire gauge, termination resistance, contact resistance, return-path resistance, mating condition, PCB copper and temperature rise should be reviewed together before releasing a continuous-current rating.
The round magnetic head is only one part of the complete charging cable assembly.
Cable length, conductor count, wire gauge, jacket construction, flexibility, strain relief and opposite-end termination should be defined according to the finished device requirements.
USB-A, USB-C, DC plug, bare wire, terminal or another interface should only be stated after the approved cable drawing confirms the actual configuration.
This round magnetic charging cable architecture can be evaluated for compact electronic products requiring a detachable circular charging interface.
Smart blindfold integration can be evaluated when the electrical, mechanical and environmental requirements of the specific device are confirmed.
| Specification | Details |
|---|---|
| Product Type | Round Magnetic Charging Cable Assembly |
| Primary Function | Charging |
| Interface Shape | Round / Circular |
| Mating Geometry | Concentric Recessed Interface |
| Electrical Pin Count | To Be Confirmed |
| Central Contact | One Visible Central Contact Position |
| Outer Ring Function | To Be Confirmed |
| Return Path | Defined by Approved Wiring Diagram |
| Separate Mating Component | Visible; Supply Scope To Be Confirmed |
| Magnetic Function | Capture + Retention |
| Final Position / Alignment | Controlled by Mechanical Mating Geometry |
| Rotational Mating | To Be Confirmed |
| Cable Length | Project-Specific |
| Opposite-End Termination | To Be Confirmed |
| Voltage | Project-Specific |
| Continuous Current | To Be Confirmed |
| Peak Current | To Be Confirmed |
| Current Capability | Validate Complete Conductive Path |
| Contact Type | To Be Confirmed |
| Working Stroke | To Be Confirmed |
| Total Travel | To Be Confirmed |
| Magnetic Retention | Project-Specific |
| Cycle Life | To Be Confirmed |
| Material / Plating | To Be Confirmed |
| IP Rating | To Be Confirmed at Complete Assembly Level |
Explore related Round Magnetic Cable Connectors for alternative circular magnetic cable architectures.
It is a magnetic cable assembly using a round cable-side charging head and a separate mating component. This version uses a concentric circular interface.
One central contact position is visible, but the complete electrical contact count must be confirmed because the surrounding ring may have an electrical, magnetic or mechanical function.
This cannot be confirmed from appearance alone. The outer-ring function and complete return path should be defined by the approved wiring diagram.
Circular geometry alone does not establish unrestricted rotational mating. Electrical symmetry, polarity, mechanical keying and contact functions must be confirmed.
Current capability is project-specific and must be validated through the complete conductive path, including the cable, termination, contact interface, return path, device PCB and charging circuit.
A central contact position is visible, but the internal spring-loaded structure, working stroke and total travel should be confirmed from the approved contact drawing.
The project should distinguish capture, retention, separation and peel conditions. A single magnetic-force value should not be used without defining the test direction and mating state.
The round architecture can be evaluated for smart blindfold and other wearable charging projects when the electrical rating, available installation space, mating geometry and environmental requirements are confirmed.
Provide the electrical contact functions, return path, voltage, continuous and peak current, cable length, wire gauge, opposite-end termination, mating dimensions, rotational requirements and available 2D or 3D drawings.
CUSTOM ROUND MAGNETIC CHARGING CABLE DEVELOPMENT
Send CTP your contact functions, complete return-path design, voltage, continuous and peak current, cable length, wire gauge, opposite-end termination, round mating dimensions, rotational requirements, magnetic requirements and device-side drawings. Our engineering team can review the complete charging interface before quotation and sample development. Request Custom Quote & Samples
This product page presents a CTP magnetic cable assembly configuration for engineering reference. Final dimensions, electrical ratings, materials, magnet structure, sealing level and reliability targets are not universal values; they are confirmed against the approved drawing, installation condition and model-specific validation plan.
CTP reviews the application and prepares a drawing or specification for approval before sample production. Test scope, acceptance criteria and report format should identify the model, sample status, method, conditions, result and review date.
Yes. Customization can cover geometry, contact layout, materials, cable construction, magnetic structure, sealing and appearance. Feasibility depends on the application and approved specification.
No. Current, voltage, resistance, temperature rise and ingress-protection claims apply only to the identified model and stated test conditions.
Timing is confirmed after the drawing, materials, tooling, sample quantity, validation scope and production requirements have been reviewed.
A reference product image is not enough to define a cable assembly. Confirm the following information before drawing, sampling or quotation review.
The exact project route depends on whether an existing product can be used, modified or requires a new cable assembly design.
Confirm product scope, Pin Map, cable length, termination, quantity and application conditions.
Match magnetic contacts to conductors, source-side wiring and device-side functions.
Confirm dimensions, outlet direction, cable construction and required sample configuration.
Review electrical, mechanical and environmental conditions before production approval.
Submit the magnetic-end structure, electrical functions, cable length, conductor requirements, opposite-end interface, installation space and available drawings for project review.
Review related cable assemblies by contact count, shape, termination and project supply scope.
