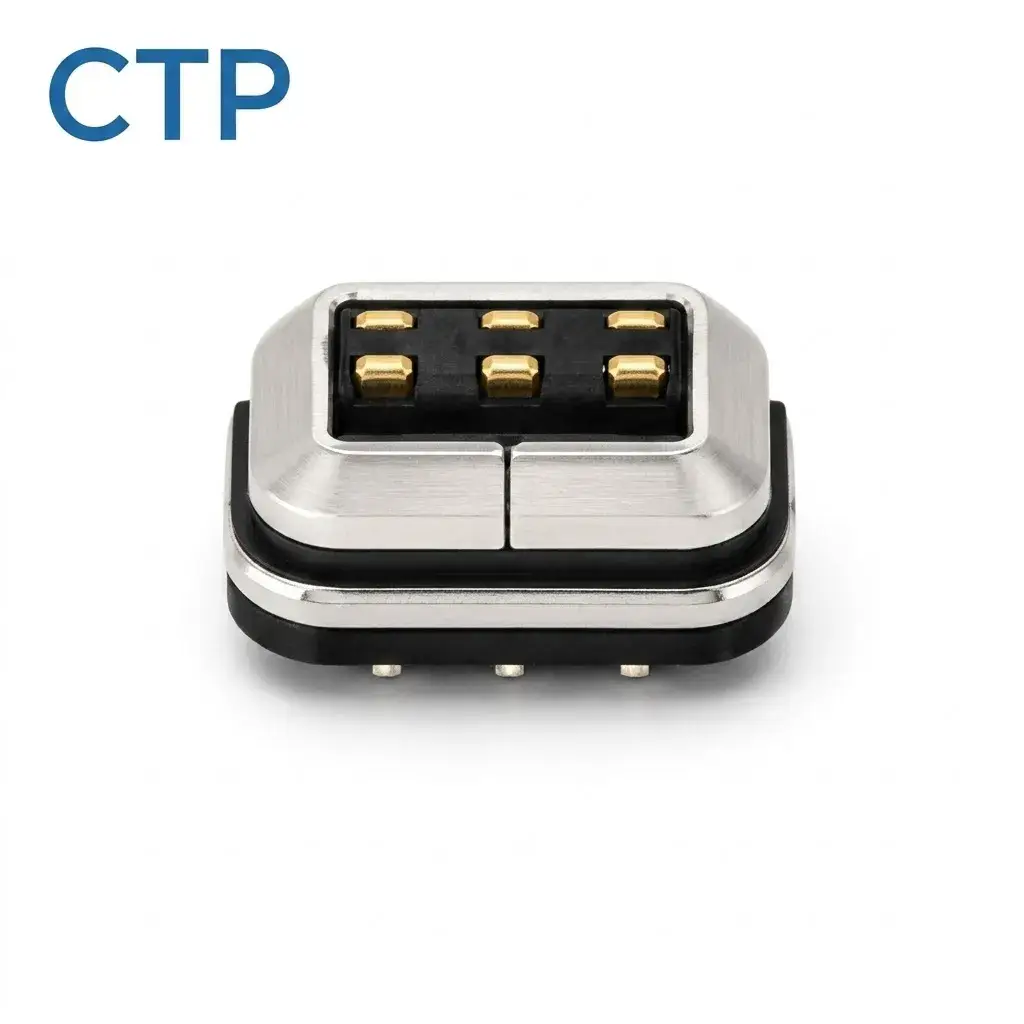

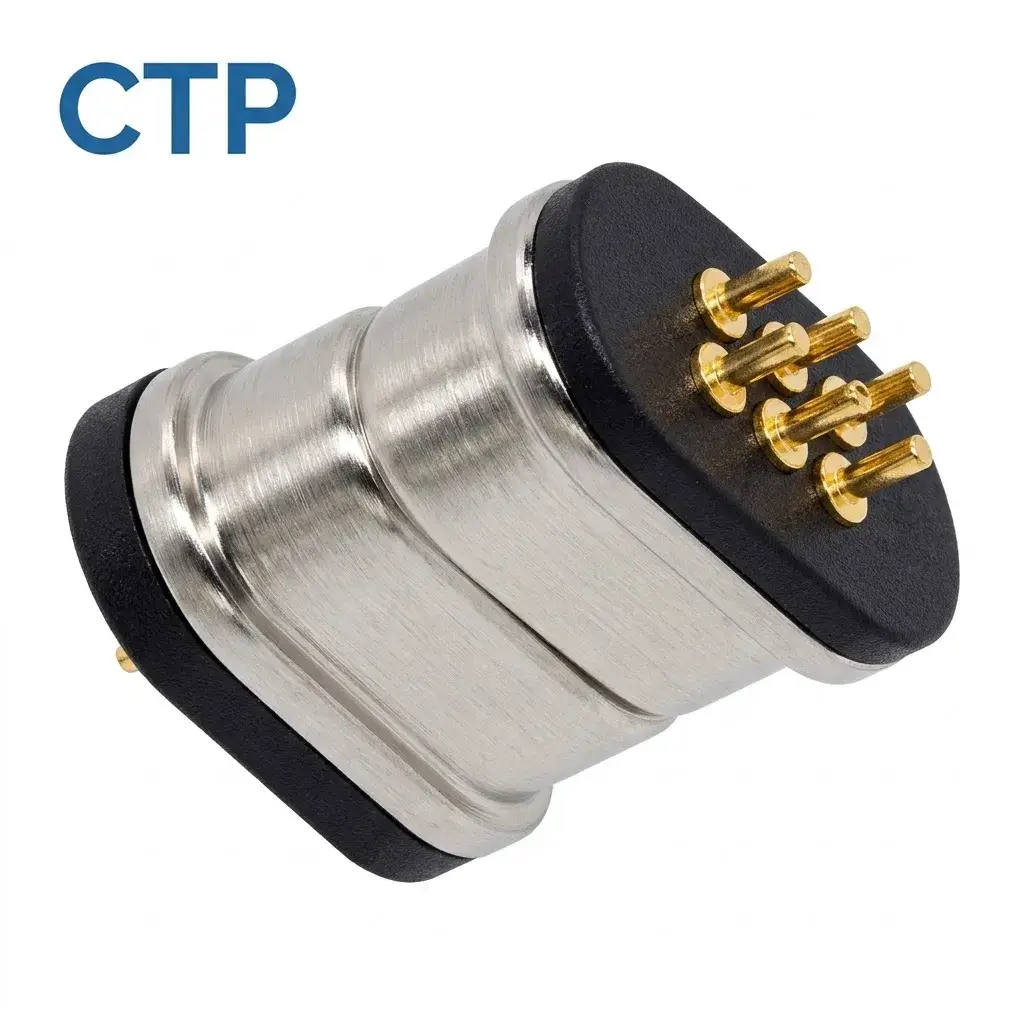

CTP® Racetrack Shape 6-Pin Magnetic Pogo Pin Connector Engineered specifically for smart wearables and consumer electronics, this ultimate 6 pin magnetic pogo pin connector features an innovative racetrack (oval) shape with a fool-proof, anti-mismating design. It guarantees secure, stable, and error-free connections every time.
Design: Racetrack shape for perfect alignment and anti-mismating.
Durability: Ultra-high lifespan with up to 30,000 mating cycles.
Performance: Reliable 2A current, strong 500-800g magnetic force, and IP54 waterproof rating.
Applications: Ideal for smartwatches, TWS earphones, and high-end consumer electronics.
Our premium 6 pin magnetic pogo pin connector provides the ultimate reliable connection for smart wearables and consumer electronics. By integrating an innovative racetrack (oval) shape with an advanced anti-mismating design, this 6 pin magnetic pogo pin connector guarantees stable, error-free charging and data transfer every single time you use it.
User experience is absolutely critical in modern consumer electronics. That is exactly why our 6 pin magnetic pogo pin connector utilizes a highly effective fool-proof design. The built-in magnets provide a robust 500-800g magnetic force, allowing for automatic, blind-mating alignment without any risk of incorrect insertion.
Furthermore, this high-performance 6 pin magnetic pogo pin connector is built to last. With an exceptional mechanical life of up to 30,000 mating cycles and an IP54 waterproof rating, it guarantees long-lasting stability even in demanding daily use environments. Extensive 48-hour salt spray testing ensures excellent corrosion resistance for outdoor and sports applications.
Review the detailed parameters of our industry-leading 6 pin magnetic pogo pin connector below:
| Specification / Feature | Details & Parameters |
|---|---|
| Product Name | Racetrack Magnetic Pogo Pin Connector |
| Pin Count | 6 Pin |
| Core Selling Point | Racetrack shape / Anti-mismating (fool-proof) design |
| Rated Current / Voltage | 2A / 12-24V |
| Contact Resistance | ≤ 50mΩ |
| Magnetic Force | 500-800g |
| Mating Cycles (Life) | 30,000 cycles |
| Waterproof Rating | IP54 |
| Surface Plating | 3-5μ” (Micro-inches) |
| Salt Spray Test | 48 Hours |
| Primary Applications | Smart Wearables, Consumer Electronics |
Upgrade your product’s charging capabilities with our advanced 6 pin magnetic pogo pin connector solutions. Contact the CTP manufacturing team today for samples or custom project inquiries!
