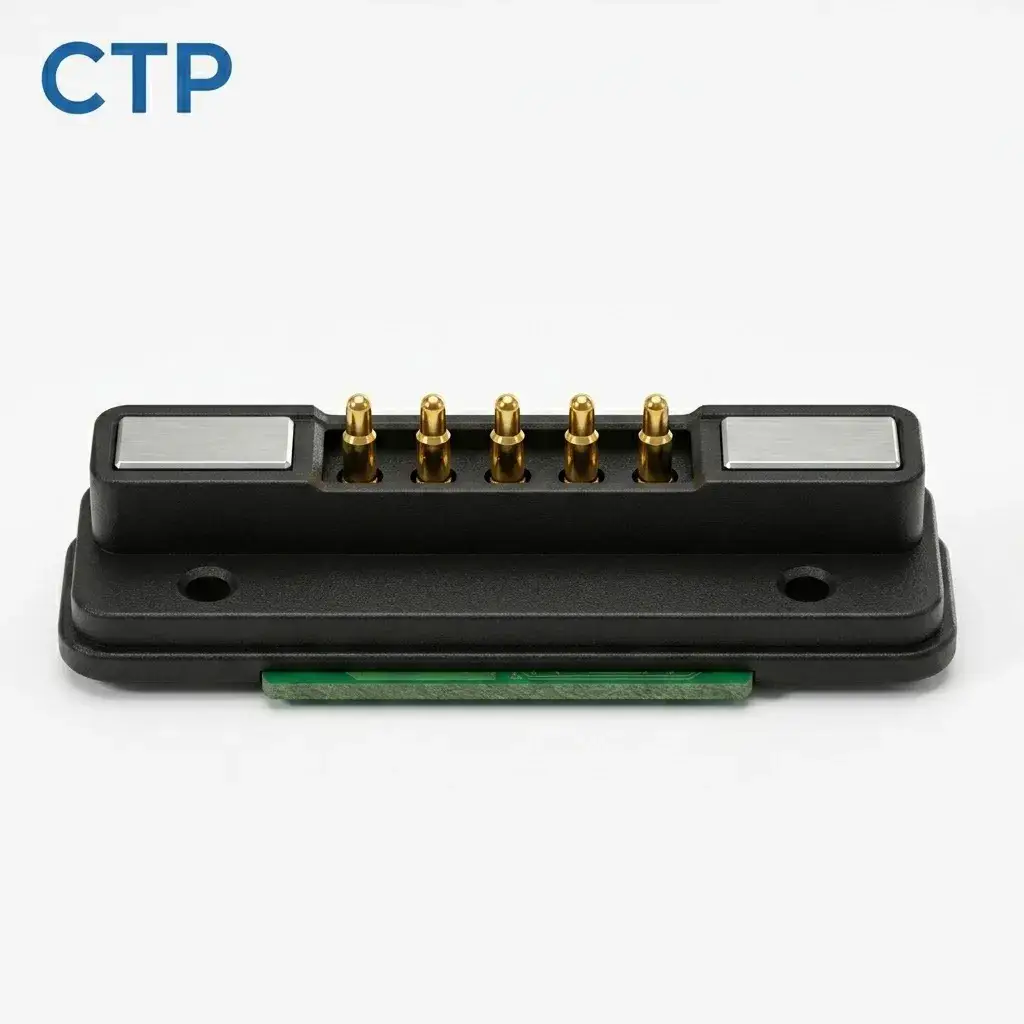

CTP® Wide Range 5-Pin Male Female Magnetic Pogo Pin Connector Engineered for versatile smart home appliances, this ultimate 5 pin male female magnetic pogo pin connector features a highly customizable parameter range. It guarantees secure docking and flexible power delivery tailored to your specific project needs.
Design: Specialized male and female docking structure for secure, foolproof connections.
Performance: Exceptional wide-range options supporting 1A to 30A current and 5V to 60V voltage.
Durability: Ultra-long mechanical lifespan tested up to 50,000 mating cycles.
Protection: Customizable IP54 to IP67 waterproof ratings paired with rigorous 72-hour salt spray testing.
Product specifications should be reviewed together with the customer device, PCB, electrical assignment and mechanical mating conditions.
Define the function of each power, return, signal, control or detection contact.
Provide voltage, continuous current, peak current and required signal conditions.
Provide available length, width, height, PCB area and required mating orientation.
Provide application, expected quantity, environment and customer validation requirements.
Review the product-specific description, technical parameters, contact arrangement, mechanical structure and project conditions below.
Our premium 5 pin male female magnetic pogo pin connector provides the ultimate highly customizable power solution for modern smart home appliances. By integrating a versatile parameter range with a highly secure docking structure, this 5 pin male female magnetic pogo pin connector guarantees stable power delivery and seamless integration for practically any electronic requirement.
Flexibility and connection security are absolutely critical in smart appliance manufacturing. That is exactly why our 5 pin male female magnetic pogo pin connector utilizes a specialized male-to-female mating design. The built-in heavy-duty magnets provide a steady 350-550g magnetic force, ensuring precise, foolproof, and automatic blind-mating. This unique design safely supports an incredibly wide range of electrical requirements, offering customizable options from 1A up to 30A rated current, and voltages from 5V to 60V.
Furthermore, this high-performance 5 pin male female magnetic pogo pin connector is built for extreme adaptability and longevity. With an exceptional mechanical life of up to 50,000 mating cycles, it guarantees efficient energy transfer without degradation. The customizable IP54 to IP67 waterproof ratings combined with superior 5u’ surface plating and 72-hour salt spray testing ensure excellent durability against moisture and corrosion in diverse household environments.
Review the detailed parameters of our highly versatile 5 pin male female magnetic pogo pin connector below:
| Specification / Feature | Details & Parameters |
|---|---|
| Product Name | Smart Appliance Male/Female Magnetic Pogo Pin |
| Pin Count | 5 Pin |
| Core Selling Point | Male-female docking / Wide range of optional parameters |
| Rated Current Options | 1A – 30A (Highly Customizable) |
| Rated Voltage Options | 5V – 60V |
| Resistance Parameter | 500MΩ |
| Magnetic Force | 350-550g |
| Mating Cycles (Life) | 50,000 cycles |
| Waterproof Rating | IP54 – IP67 (Optional) |
| Surface Plating | 5u’ |
| Salt Spray Test | 72 Hours |
| Primary Applications | Smart Small Home Appliances |
Upgrade your smart appliances with our highly versatile 5 pin male female magnetic pogo pin connector solutions. Contact the CTP manufacturing team today for samples or to discuss your specific custom parameter requirements!
