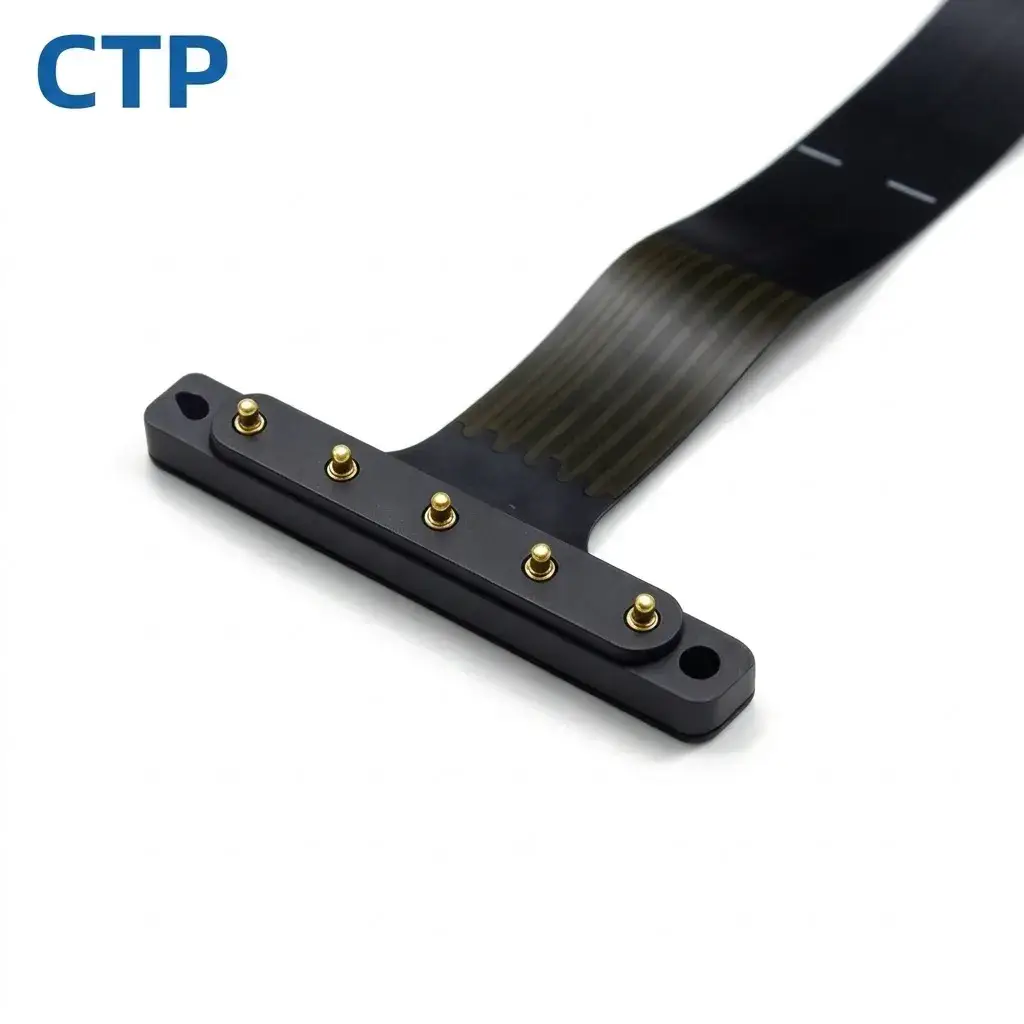

Premium 5-Pin Magnetic FPC Connector Custom Solutions
The 5 pin magnetic fpc connector module launched by CTP provides a revolutionary flexible connection solution for modern smart wearables, portable medical devices, and high-end consumer electronics. By seamlessly integrating highly resilient FPC flexible cables with high-performance magnetic technology, this 5 pin magnetic fpc connector not only breaks the space limitations of traditional rigid PCB wiring but also achieves free bending within narrow and complex structures, freeing up extremely valuable internal space for thin and light smart devices.
Zero-Blind-Touch Experience & IP67 Industrial-Grade Protection
In smart automotive terminals and outdoor sports equipment, the convenience of one-handed operation and protection in harsh environments are crucial. Our 5 pin magnetic fpc connector features an internal array of high-performance N52 neodymium magnets, providing a 400g golden-ratio magnetic force. Simply bring them close to achieve precise automatic alignment and zero-blind-touch mating, significantly reducing physical wear and offering superior anti-drop capabilities. In addition, the product uses cutting-edge in-mold injection technology to perfectly meet the IP67 waterproof standard, combined with the latest electroplating coating technology and a 48-hour salt spray test, fearlessly facing daily sweat corrosion and humid environment challenges.
Beyond outstanding protection, the electrical and mechanical performance of this module is equally exceptional. The rated current and voltage reach 1.5A / 5V DC, and combined with surface gold plating, the contact resistance is strictly controlled at ≤ 30mΩ. The carefully selected imported cold-stamped materials and the moderate single-pin elastic force of 80g ensure an extreme mating lifespan of up to 50,000 cycles. All products undergo a 100% screening by CTP’s fully automatic visual inspection system before leaving the factory, ensuring that every connector delivered is of premium quality.
Core Technical Specifications
Please review the detailed parameters of our industry-leading 5 pin magnetic fpc connector module:
| Specification / Feature | Details & Parameters |
|---|---|
| Pin Count & Pitch | 5 Pin / 2.54mm Pitch (Precision Array) |
| Rated Current / Voltage | 1.5A / 5V DC |
| Contact Resistance | ≤ 30 mΩ |
| Magnetic Force | 400g (N52 Neodymium Magnets) |
| Mating Cycles (Life) | 50,000 cycles |
| Working Stroke / Spring Force | 0.8 mm / 80g per pin |
| Waterproof Rating | IP67 (In-mold Injection Process) |
| Surface Plating | 5μ” Gold Plating |
| Salt Spray Test | 48 Hours |
| Operating Temperature | -40°C ~ +85°C |
| Main Body Material | High-Temperature LCP Plastic (UL94V-0) |
Frequently Asked Questions (FAQ)
Why does this magnetic connector use an FPC flexible cable design?
Traditional rigid PCBs are difficult to route inside devices with extremely compact internal spaces (such as smartwatches, AR/VR glasses, and TWS earbuds). Adopting a high-resilience FPC flexible integration design allows for arbitrary bending within narrow and complex structures, greatly freeing up motherboard space, making it an ideal choice for thin and light smart devices.
How is the waterproof and anti-corrosion performance of this 5-pin connector?
This module utilizes an advanced in-mold injection process to achieve the top-tier IP67 waterproof and dustproof standard. Simultaneously, the surface features 5μ” gold plating and has successfully passed a 48-hour salt spray test. Even under sweat corrosion during outdoor sports or daily wiping in medical environments, it maintains an ultra-low impedance of ≤ 30mΩ for absolutely stable signal and power transmission.
What is the mating lifespan and magnetic feel of this product?
The interior features high-performance N52 magnets that provide a 400g stable magnetic force, ensuring zero-blind-touch automatic alignment and preventing shock detachment. Its precision cold-stamped materials and 80g single-pin spring force design enable a mating lifespan of up to 50,000 cycles, ensuring no pin jamming or loss of elasticity throughout the product’s long lifecycle.
