Individual Pogo Pin
A single spring-loaded contact supplied for integration into the customer’s PCB, housing or connector structure.
Browse Individual Pogo Pins →

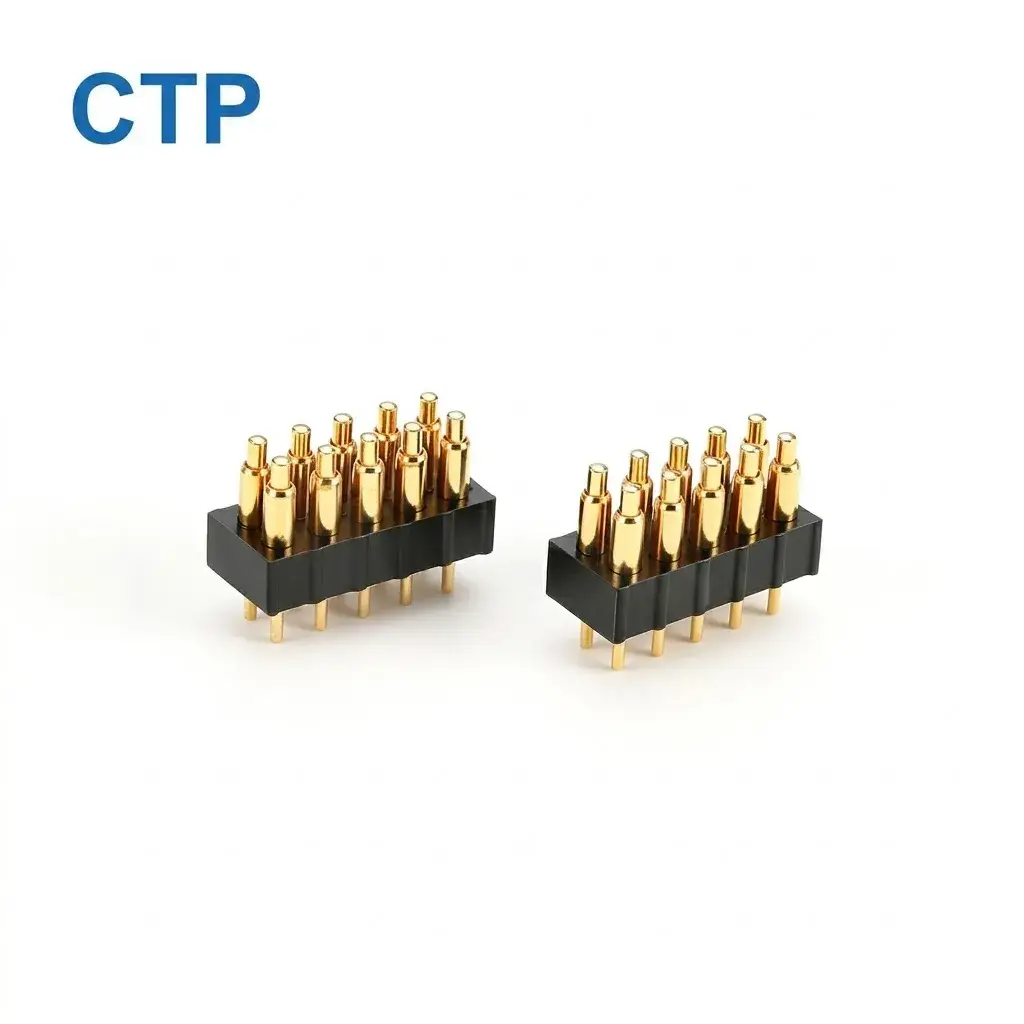

Custom 10-pin through-hole pogo pin connector with a 5 × 2 dual-row spring-contact arrangement and straight PCB tails. The integrated housing maintains ten contact positions as one connector assembly, while each spring-loaded contact provides electrical connection and controlled Z-axis compliance. Contact pitch, PCB footprint, working stroke, pin assignment and electrical ratings are defined by the approved project drawing.
Determine whether the project needs a single spring-loaded contact, a multi-contact connector assembly, a specific mounting method or a customer-defined mechanical interface.
A single spring-loaded contact supplied for integration into the customer’s PCB, housing or connector structure.
Browse Individual Pogo Pins →A complete multi-contact assembly combining pogo pins, insulating housing, contact pitch and mounting structure.
Browse Connector Assemblies →Choose through-hole, surface mount, right-angle, double-ended or customer-specific termination.
Review Engineering Guides →Define travel, spring force, current path, housing, Pin Map and device-side mechanical constraints.
Submit Project Requirements →This 10-pin through-hole pogo pin connector integrates ten spring-loaded electrical contacts into a 5 × 2 dual-row housing with straight PCB tails. The straight through-hole architecture provides a defined PCB-mounted contact array for interfaces that do not require surface-mount or right-angle termination.
Each spring-loaded contact provides electrical connection and controlled compliance along the contact axis. Final connector position, working compression and mechanical seating should be established by the PCB, mating target and device-level structure rather than by using the pogo contacts as structural stops.
Ten spring-loaded contacts are arranged as five positions across two parallel rows. The integrated housing maintains all ten contact positions in one defined connector assembly rather than requiring ten individual pogo contacts to be positioned separately.
Exact contact pitch, row spacing, Pin 1 location and contact-center coordinates should be confirmed from the approved connector drawing before PCB or mating-interface design is released.
This connector uses straight PCB tails rather than flat SMT terminations or right-angle bent tails. The straight through-hole configuration allows the connector body and contact axis to be integrated directly through a matching dual-row PCB hole pattern.
Final tail diameter, tail length, finished-hole diameter, pad geometry and PCB thickness should follow the released PCB footprint.
Pogo pin connectors with the same 10-pin count can use different PCB integration architectures. This version uses a 5 × 2 dual-row layout with straight through-hole tails.
The correct structure should be selected according to PCB layout, mating direction, enclosure geometry and production assembly requirements.
Mechanical design should consider the PCB position, connector height, mating direction, target-contact geometry and assembly tolerance. Device-level datums and mechanical stops should establish the final mating position.
Each spring-loaded contact should operate within the working stroke defined by the approved connector drawing. Working stroke is the intended operating compression range and is different from the total available mechanical travel of the contact.
The completed device should provide the final mechanical stop so that the pogo contacts remain within their intended operating range rather than acting as structural stops.
Ten physical contacts provide ten available electrical positions, but the pin count does not determine their functions. Power, return, sensing, control, identification and signal functions should be assigned through the approved customer pin map.
Pin numbering should include a clear Pin 1 reference and viewing direction because a 5 × 2 dual-row array can otherwise create orientation ambiguity between the PCB side and mating side.
Current capability should be evaluated across the complete conductive path:
Source → PCB copper → through-hole solder joint → connector tail → pogo contact → mating interface → target conductor → load.
Pin count, contact diameter or a previous page rating is not sufficient to establish an approved current capability. PCB copper, solder-joint resistance, connector resistance, mating resistance and temperature rise should be reviewed together.
Multiple contact positions can be evaluated in parallel for project-specific power paths, but total current should not be calculated by simply multiplying one contact rating by the number of parallel pins.
Current sharing depends on PCB routing, solder-joint resistance, contact-resistance variation, mating-target geometry, compression consistency and thermal conditions.
A 10-pin connector provides ten physical contact positions but does not automatically support a particular communication protocol or data bandwidth.
Signal performance depends on the approved pin map, ground and return-path allocation, contact pitch, contact geometry, PCB transition, mating target and the complete electrical channel.
This 5 × 2 straight through-hole connector architecture can be evaluated for PCB-mounted electrical interfaces requiring ten independently assigned spring-contact positions in one connector assembly.
Application suitability depends on PCB space, mating-target geometry, pin assignment, working stroke, electrical conditions, mechanical tolerance and production assembly requirements.
Contact material, plating, cycle life, operating temperature, corrosion requirements and compliance status should only be published when supported by approved specifications or validation records.
A gold-colored contact surface does not establish a gold-plating specification, and visible connector construction does not establish cycle-life or environmental performance.
CTP can review project-specific requirements for contact pitch, row spacing, housing dimensions, straight PCB-tail geometry, footprint, working stroke, spring-force condition, pin assignment and mating-target geometry.
Final mechanical and electrical specifications should be released through an approved connector drawing.
The connector uses a 5 × 2 dual-row architecture with ten spring-loaded contact positions integrated into one housing.
This version uses straight tails that pass through PCB holes, while an SMT connector uses surface-mount terminations. The correct architecture depends on PCB layout, assembly process and mechanical requirements.
This connector uses straight through-hole tails. A right-angle version uses bent tails to change the relationship between the mating direction and PCB termination direction.
The exact contact pitch and row spacing should be confirmed from the approved product drawing before PCB layout release.
Finished-hole diameter depends on the approved tail dimensions, PCB fabrication tolerance, board thickness and soldering requirements. Use the released footprint for PCB design.
Current capability is project-specific and should be evaluated across the PCB, solder joints, connector tails, pogo contacts, mating interface and complete load path.
Parallel contact assignments can be evaluated, but current sharing, resistance variation, PCB routing and temperature rise should be included in the design review.
No. Pin count alone does not determine data capability. Signal performance depends on the pin map, return paths, contact geometry, PCB transition and complete channel.
Project-specific pitch, row spacing, housing dimensions, PCB-tail geometry and contact functions can be reviewed according to PCB and mating-interface requirements.
If this 10-pin dual-row through-hole connector architecture is close to your PCB interface requirements, submit the contact pitch, row spacing, footprint, pin map, working stroke, mating target and electrical conditions for engineering review.
Request Custom Quote & Samples | Browse Pogo Pin Connectors
This product page presents a CTP magnetic connector configuration for engineering reference. Final dimensions, electrical ratings, materials, magnet structure, sealing level and reliability targets are not universal values; they are confirmed against the approved drawing, installation condition and model-specific validation plan.
CTP reviews the application and prepares a drawing or specification for approval before sample production. Test scope, acceptance criteria and report format should identify the model, sample status, method, conditions, result and review date.
Yes. Customization can cover geometry, contact layout, materials, cable construction, magnetic structure, sealing and appearance. Feasibility depends on the application and approved specification.
No. Current, voltage, resistance, temperature rise and ingress-protection claims apply only to the identified model and stated test conditions.
Timing is confirmed after the drawing, materials, tooling, sample quantity, validation scope and production requirements have been reviewed.
The development route depends on whether an existing pogo pin can be used, modified or assembled into a customized multi-contact connector.
Confirm product type, dimensions, stroke, force, current, mounting and project quantity.
Match the contact geometry, tail structure, housing, Pin layout and installation method.
Confirm dimensional tolerances, material requirements and sample configuration.
Review electrical, mechanical, assembly and application-specific validation conditions.
Submit the product type, dimensions, mounting method, working stroke, spring-force condition, electrical requirements, Pin Map, PCB layout and available drawings for project review.
