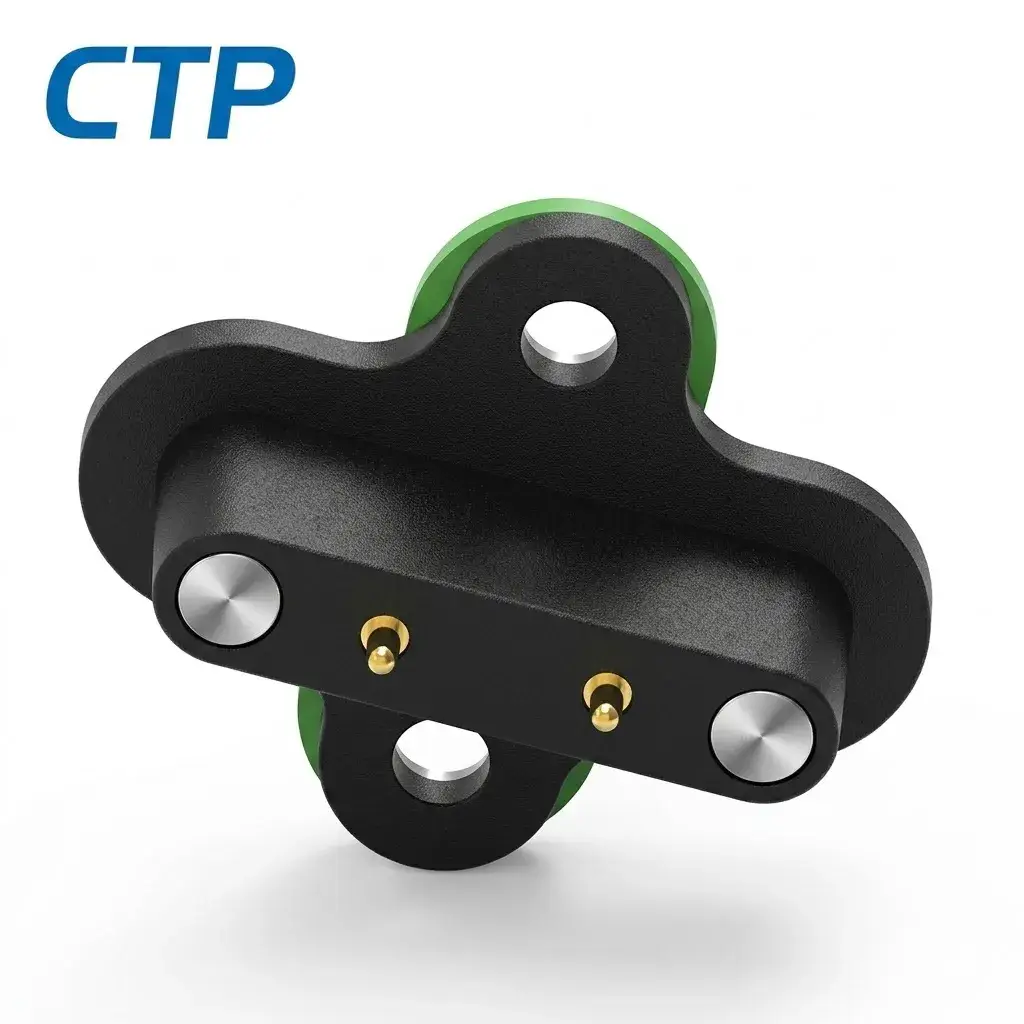

CTP® 2-Pin Contact Style Magnetic Pogo Pin Connector Engineered specifically for consumer electronics, this ultimate 2 pin contact magnetic pogo pin connector features a highly reliable contact-style design. It guarantees secure docking and stable daily power delivery.
Design: Contact-style connection for straightforward, flat, and secure device integration.
Performance: Reliable 2A rated current, 12V voltage, and a steady 350-550g magnetic force.
Durability: Long-lasting mechanical lifespan with up to 30,000 mating cycles.
Protection: Standard IP54 waterproof rating and rigorous 48-hour salt spray testing.
Product specifications should be reviewed together with the customer device, PCB, electrical assignment and mechanical mating conditions.
Define the function of each power, return, signal, control or detection contact.
Provide voltage, continuous current, peak current and required signal conditions.
Provide available length, width, height, PCB area and required mating orientation.
Provide application, expected quantity, environment and customer validation requirements.
Review the product-specific description, technical parameters, contact arrangement, mechanical structure and project conditions below.

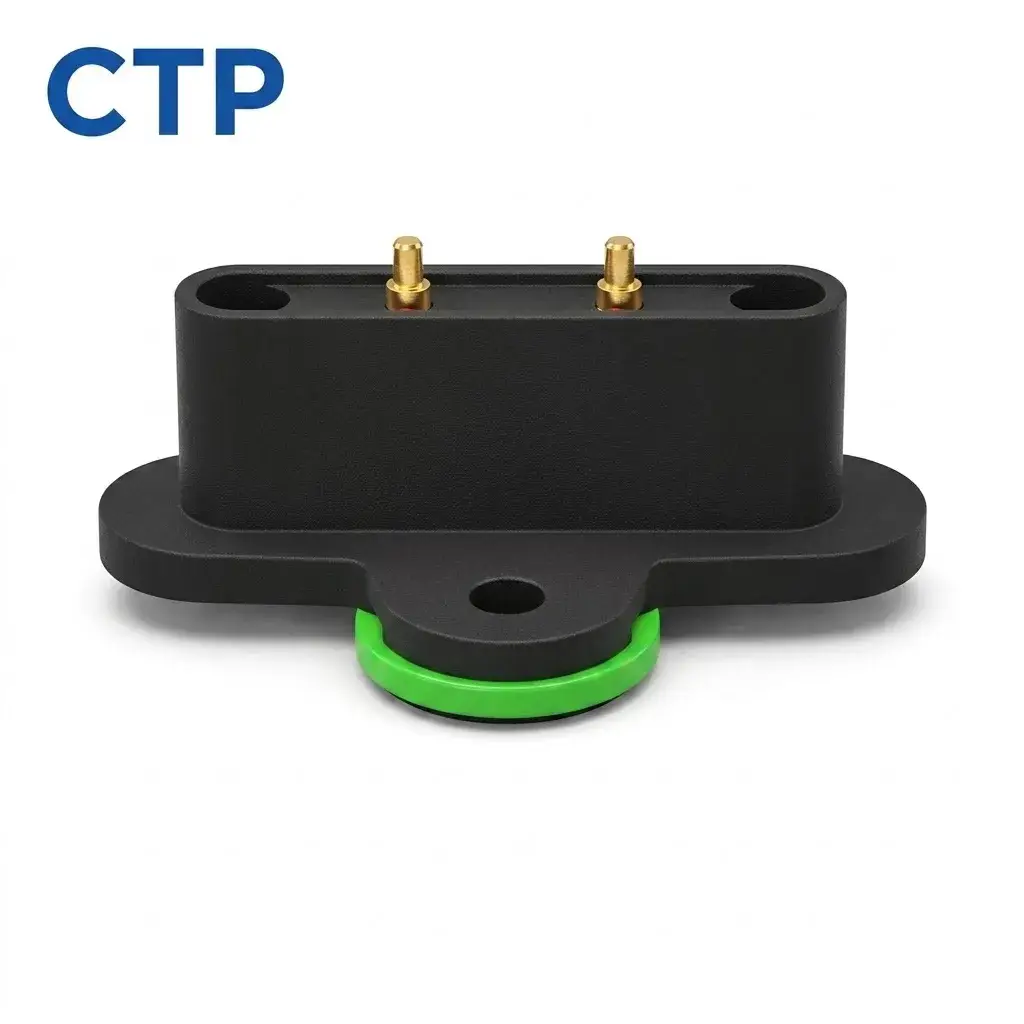

Our premium 2 pin contact magnetic pogo pin connector provides the ultimate reliable solution for modern consumer electronics. By integrating a specialized contact-style connection design, this 2 pin contact magnetic pogo pin connector guarantees stable power delivery and a seamless charging experience for everyday devices.
Ease of use and consistent stability are critical in consumer hardware. That is exactly why our 2 pin contact magnetic pogo pin connector utilizes a highly effective contact-pad mating structure. The built-in heavy-duty magnets provide a steady 350-550g magnetic force, allowing for fast, automatic, and secure blind-mating alignment. This ensures the 2-pin connection remains uninterrupted during regular high-frequency consumer use.
Furthermore, this high-performance 2 pin contact magnetic pogo pin connector is built for daily longevity. With an exceptional mechanical life of up to 30,000 mating cycles and a standard IP54 waterproof rating, it guarantees long-lasting stability against dust and moisture. The rigorous 48-hour salt spray testing combined with premium 3-5μ” surface plating ensures excellent corrosion resistance over time.
Review the detailed parameters of our industry-leading 2 pin contact magnetic pogo pin connector below:
| Specification / Feature | Details & Parameters |
|---|---|
| Product Name | Contact-Style Magnetic Pogo Pin |
| Pin Count | 2 Pin |
| Core Selling Point | Contact-style connection |
| Rated Current / Voltage | 2A / 12V |
| Contact Resistance | ≤ 50mΩ |
| Magnetic Force | 350-550g |
| Mating Cycles (Life) | 30,000 cycles |
| Waterproof Rating | IP54 |
| Surface Plating | 3-5μ” (Micro-inches) |
| Salt Spray Test | 48 Hours |
| Primary Applications | Consumer Electronics |
Upgrade your device’s charging interface with our robust 2 pin contact magnetic pogo pin connector solutions. Contact the CTP manufacturing team today for samples or custom project inquiries!
