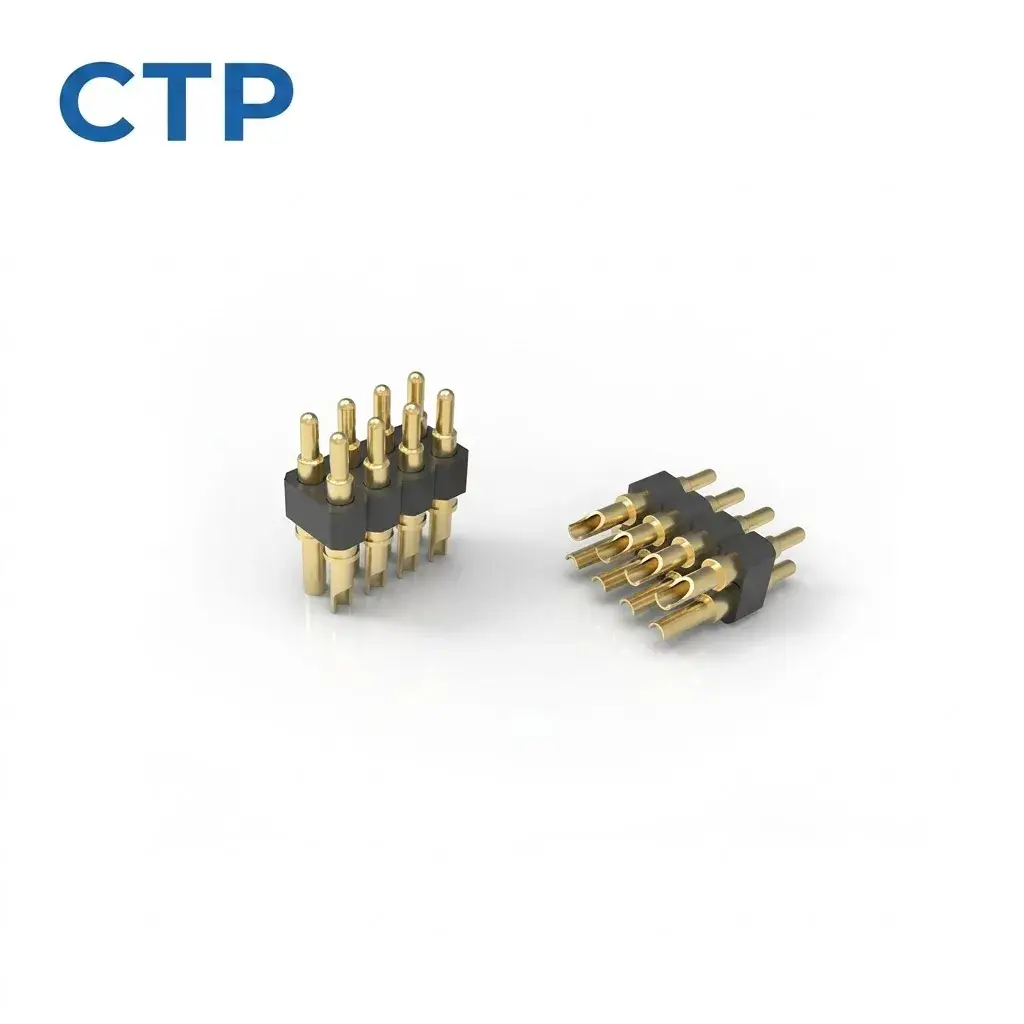

Custom 8-pin through-hole pogo pin connector with a compact 4 × 2 dual-row spring-contact arrangement and straight PCB tails. The integrated housing maintains eight contact positions as one connector assembly, while each spring-loaded contact provides electrical connection and controlled Z-axis compliance. Contact pitch, PCB footprint, working stroke, pin assignment and electrical ratings are defined by the approved project drawing.
Determine whether the project needs a single spring-loaded contact, a multi-contact connector assembly, a specific mounting method or a customer-defined mechanical interface.
A single spring-loaded contact supplied for integration into the customer’s PCB, housing or connector structure.
Browse Individual Pogo Pins →A complete multi-contact assembly combining pogo pins, insulating housing, contact pitch and mounting structure.
Browse Connector Assemblies →Choose through-hole, surface mount, right-angle, double-ended or customer-specific termination.
Review Engineering Guides →Define travel, spring force, current path, housing, Pin Map and device-side mechanical constraints.
Submit Project Requirements →This 8-pin through-hole pogo pin connector integrates eight spring-loaded electrical contacts into a compact 4 × 2 dual-row housing with straight PCB tails. The structure is intended for PCB-mounted interfaces requiring multiple independently assignable spring-contact positions in one connector assembly.
Each pogo contact provides electrical connection and controlled compliance along the contact axis. Final connector position, working compression and mechanical seating should be established by the PCB, mating target and device-level structure rather than by using the pogo contacts as structural stops.
Eight spring-loaded contacts are arranged as four positions across two parallel rows. The dual-row architecture reduces the required contact-array length compared with an eight-position single-row connector while maintaining eight independently assignable electrical positions.
Exact contact pitch, row spacing, contact-center coordinates and Pin 1 orientation should be confirmed from the approved connector drawing.
Straight metallic tails are visible on the termination side of the connector and are consistent with through-hole PCB integration. This structure should be distinguished from a wire solder cup termination, which uses a defined receptacle or cup geometry for soldering conductors.
Final tail diameter, tail length, PCB finished-hole diameter, pad dimensions and board thickness should follow the released connector and PCB drawings.
The previous product-page description identified this connector as a solder cup design. The visible product structure, however, is more consistent with straight PCB tails. Solder cup terminology should only be retained if the approved mechanical drawing confirms a wire-termination cup structure.
PCB through-hole termination and solder cup wire termination describe different interface architectures and should not be treated as interchangeable terms.
This product is a complete 8-contact pogo pin connector assembly rather than eight individually installed spring-loaded contacts. The housing maintains the relative position of all eight contact axes within one defined 4 × 2 arrangement.
Engineers should evaluate the housing geometry, PCB footprint, contact spacing, working stroke, mating target and tolerance stack-up as one complete interface.
Mechanical integration should consider PCB position, connector height, mating direction, target-contact geometry and available assembly tolerance. Device-level datums and mechanical stops should establish the final connector position.
Each pogo contact should operate within the working stroke defined by the approved connector drawing. Working stroke is the intended operating compression range and is different from total available mechanical travel.
The completed device should provide a defined mechanical stop so the spring-loaded contacts remain within their intended operating range rather than acting as structural stops.
Eight physical contacts provide eight available electrical positions, but the pin count does not determine their functions. Power, return, sensing, control, identification or signal functions should be assigned through the approved customer pin map.
A clear Pin 1 reference and viewing direction should be included because a 4 × 2 dual-row array can otherwise create orientation ambiguity between the PCB side and mating side.
Current capability should be evaluated across the complete conductive path:
Source → PCB copper → through-hole solder joint → connector tail → pogo contact → mating interface → target conductor → load.
Pin count or visible contact diameter alone is not sufficient to establish an approved current rating. PCB copper, solder-joint resistance, contact resistance, mating resistance and temperature rise should be evaluated together.
Multiple contacts may be evaluated in parallel for project-specific power paths, but total current should not be calculated by simply multiplying one contact rating by the number of parallel pins.
PCB routing, contact-resistance variation, mating geometry, compression consistency and thermal conditions should be included in the current-sharing review.
Eight physical contact positions do not automatically define data bandwidth, communication protocol or signal integrity performance.
Signal capability depends on the approved pin map, ground and return-path allocation, contact geometry, pitch, PCB transition, mating target and complete electrical channel.
This 4 × 2 dual-row through-hole architecture can be evaluated for PCB-mounted electrical interfaces requiring eight independently assigned spring-contact positions in one connector assembly.
Application suitability depends on PCB space, mating-target geometry, contact assignment, working stroke, electrical conditions and mechanical tolerance.
Contact material, plating, cycle life, operating temperature and compliance status should only be published when supported by approved specifications or validation records.
Gold-colored contact surfaces do not establish a gold-plating specification, and visible connector construction does not establish environmental or lifetime performance.
CTP can review project-specific requirements for contact pitch, row spacing, housing dimensions, straight PCB-tail geometry, footprint, working stroke, spring-force condition, pin assignment and mating-target geometry.
Final mechanical and electrical specifications should be released through an approved connector drawing.
The connector uses a 4 × 2 dual-row architecture with eight spring-loaded electrical contact positions integrated into one housing.
The visible product structure appears more consistent with straight PCB tails than a wire solder cup termination. Solder cup terminology should only be used if confirmed by the approved mechanical drawing.
The visible straight metallic tails are consistent with through-hole PCB integration. Final hole diameter, pad dimensions and PCB footprint should follow the approved drawing.
Through-hole tails are designed for insertion into PCB holes and soldering to the board. Solder cup terminals are designed to accept and solder individual wires or conductors. The two termination types should not be treated as interchangeable.
The exact contact pitch and row spacing should be confirmed from the approved connector drawing before PCB layout release.
Current capability is project-specific and should be evaluated across the PCB, solder joints, connector tails, pogo contacts, mating interface and complete load path.
Parallel contact assignments can be evaluated, but current sharing, contact-resistance variation, PCB routing and temperature rise should be included in the design review.
No. Pin count alone does not establish data capability. Signal performance depends on the pin map, return paths, contact geometry, PCB transition and complete electrical channel.
Project-specific pitch, row spacing, housing dimensions, PCB-tail geometry, working stroke and contact functions can be reviewed according to PCB and mating-interface requirements.
If this 8-pin dual-row through-hole connector architecture is close to your PCB interface requirements, submit the contact pitch, row spacing, footprint, pin map, working stroke, mating target and electrical conditions for engineering review.
