Magnetic Mating Interface
Confirm Pin count, contact allocation, magnet arrangement, connector shape, polarity control and mating direction.

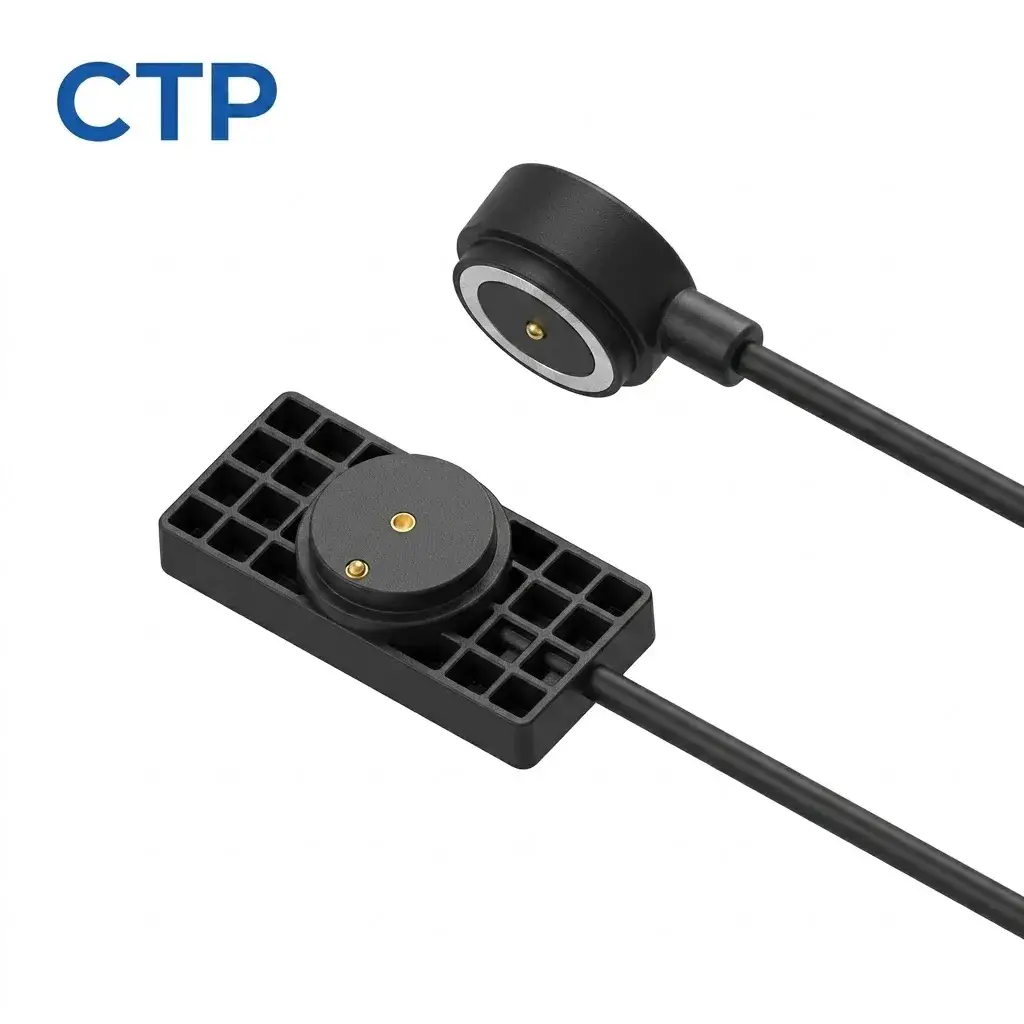

This custom 1-pin round magnetic pogo pin data cable assembly includes a circular cable-side magnetic connector and a matching device-side receptacle for project-specific signal, detection, communication or low-voltage connections. The center-contact function, outer-ring function, cable length, conductor construction, magnetic retention, housing, strain relief and installation structure can be customized according to the approved schematic and mechanical drawing.
The finished assembly must define the magnetic mating component, internal conductor arrangement, cable construction and the opposite-end connection as one complete electrical system.
Confirm Pin count, contact allocation, magnet arrangement, connector shape, polarity control and mating direction.
Define cable length, conductor count, wire specification, shielding requirements, jacket and flexibility.
Select USB, Type-C, DC plug, bare wire, terminal, PCB connection or another customized termination.
Confirm installation space, outlet direction, strain relief, exposed-contact state and user operation.
Engineering Summary: This custom 1-pin round magnetic pogo pin data cable assembly combines a circular cable-side connector with a matching device-side receptacle. The center contact, concentric outer ring, cable wiring, magnetic retention and installation structure must be defined together in the approved project drawing.
The visible interface uses one central gold contact surrounded by a concentric metal ring. The term “1 Pin” refers to the center pogo contact and does not automatically define the total number of conductive paths in the complete connector.
For a data or signal application, the project must confirm whether the outer ring provides the reference, return or second electrical path. The magnetic structure assists capture and retention, while the housing controls final alignment and working compression.
| Assembly Element | Engineering Function |
|---|---|
| Central pogo contact | Provides one spring-loaded electrical path |
| Concentric outer ring | Function confirmed according to the wiring design |
| Cable-side magnetic connector | Provides detachable connection and cable integration |

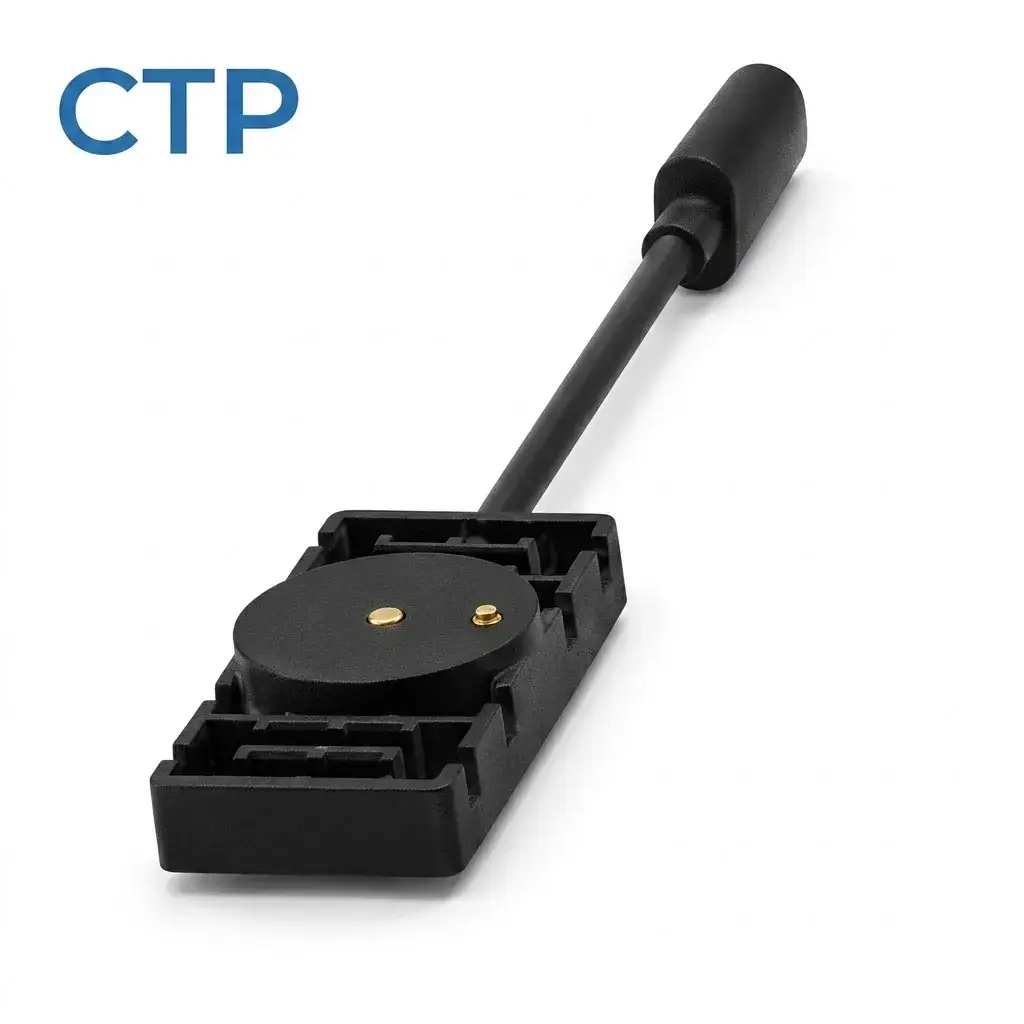

| Device-side receptacle | Provides the matching installed contact interface |
| Magnetic structure | Assists connector capture and retention |
| Cable and strain relief | Connect the interface while reducing cable-exit loads |
The electrical function must be confirmed from the schematic and internal wiring rather than from the visible pogo pin count alone.
| Possible Function | Required Confirmation |
|---|---|
| Single-wire data | Signal contact, reference path, protocol and data rate |
| Detection or identification | Logic level, reference path and connection-state circuit |
| Power connection | Positive path, return path, polarity and temperature rise |
| Power and signal | Project-specific circuit and complete system validation |
Engineering Note: One visible pogo pin does not by itself establish a complete data or power circuit. Confirm whether the concentric outer ring is electrically conductive and how both contact paths are connected.
| Specification | Product Definition |
|---|---|
| Product Type | Round magnetic pogo pin cable and receptacle assembly |
| Pogo Pin Count | 1 central spring-loaded contact |
| Contact Geometry | Round concentric interface |
| Outer Ring Function | Confirmed according to the approved wiring diagram |
| Electrical Function | Project-specific power, signal, detection or data |
| Cable Length | Customized according to installation requirements |
| Current and Voltage | Confirmed through complete current-path validation |
| Magnetic Retention | Defined according to installation and release direction |
| Environmental Protection | Dependent on the complete installed assembly |
Yes, when a complete signal and reference path is defined and the connector, cable and device channel are validated for the required protocol.
It may be, but its function must be confirmed from the product wiring diagram and mating-interface design.
The current rating must be verified across the complete path, including both contacts, cable conductors, terminations, mating interface and device load.
Yes. The mounting base, cable exit, dimensions, contact structure and installation method can be customized for the device.
Submit your wiring diagram, current or signal requirements, cable length and installation drawing through the Get Quote & Samples page.
CTP can review the center and outer-contact functions, cable construction, magnetic structure and device-side installation before prototype development.
A reference product image is not enough to define a cable assembly. Confirm the following information before drawing, sampling or quotation review.
The exact project route depends on whether an existing product can be used, modified or requires a new cable assembly design.
Confirm product scope, Pin Map, cable length, termination, quantity and application conditions.
Match magnetic contacts to conductors, source-side wiring and device-side functions.
Confirm dimensions, outlet direction, cable construction and required sample configuration.
Review electrical, mechanical and environmental conditions before production approval.
Submit the magnetic-end structure, electrical functions, cable length, conductor requirements, opposite-end interface, installation space and available drawings for project review.
