What Factors Affect the Life Cycle of a Pogo Pin, and How Can It Be Extended?

Are pogo pins failing prematurely?
This causes costly problems and erodes trust, especially in critical medical or industrial applications.
It’s frustrating! Understanding wear factors and using strategies to extend pogo pin connector life saves resources and boosts your device’s reliability.

The life of a pogo pin, a key component for reliable connections, depends on its material, design, environment, and how it’s used.
To make a pogo pin or a spring loaded pin last longer, choose quality materials like gold-plated stainless steel, ensure precise manufacturing, use them correctly, and maintain them well.

Understanding these details can make a difference in the reliability of your devices.
As a reliable pogo pin manufacturer, we at CTP have seen firsthand how focusing on these aspects improves product performance and customer satisfaction.
Let’s explore this more to help you get the best out of your pogo pin connectors.

Understanding the Pogo Pin Life Cycle: What Does It Mean?

You rely on pogo pins for consistent connections, but what happens when they wear out unexpectedly?
This can disrupt your product’s performance and your customer’s experience.
Understanding the life cyclehelps you set realistic expectations and choose the right components for your needs.

A pogo pin’s life cycle is how many times it can be pressed (a mating cycle) before it stops working well.
This can be from 50,000 to over 1,000,000 cycles.
High-quality pogo pins, especially those from a trusted pogo pin supplier, designed for specific uses will last longer.

Defining Pogo Pin Longevity and Expectations

When we talk about the life cycle of a pogo pin, or a spring loaded pin, we’re essentially measuring its durability.
It’s about how many compression cycles it can endure before its electrical or mechanical performance degrades significantly.
Think of it like the mileage on a car; a well-maintained, high-quality car will run smoothly for far longer.

• Mating Cycles: This is the primary metric.
  A standard pogo pin might be rated for 50,000 cycles, while a high-performance one, perhaps from a specialized magnetic pogo pin manufacturer, could exceed 1,000,000 cycles.

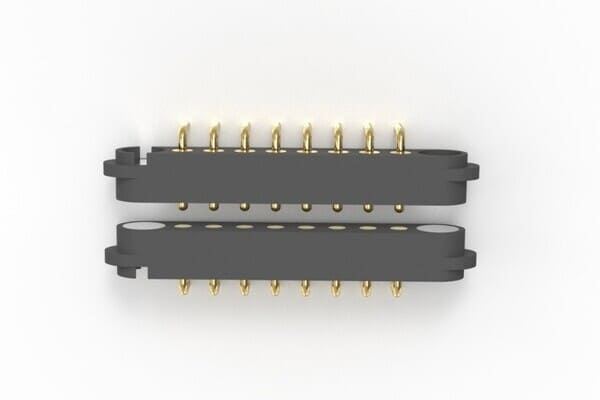

  For example, in our lab, we once tested a custom magnetic pogo pin connector designed for a medical device.
  The client needed extreme reliability. We pushed it, and it consistently performed beyond 800,000 cycles, which was a great result.

• Performance Degradation: This isn’t just about the pin breaking.
  It can mean increased electrical resistance, reduced spring force, or physical wear that affects the connection.
• Quality Matters: A premium pogo pin manufacturer will use better materials and more precise manufacturing processes.
  This directly translates to a longer life cycle.
  Lower-quality pins might save a few cents initially but can cost more in the long run due to frequent failures and replacements.
• Application Specifics: A pogo pin used in a consumer gadget that’s connected once a day will have different life cycle demands than one in an industrial robot that cycles thousands of times daily.

Understanding these aspects helps you select the right pogo pin connector for your application, ensuring reliability and longevity.

What Key Factors Determine Pogo Pin Life Cycle?

Ever wondered why some pogo pins last for ages while others fail quickly?
It’s frustrating when a tiny component causes big headaches.
The truth is, that several factors are at play, and understanding them is crucial for any pogo pin buyer.

The lifespan of a pogo pin, including magnetic pogo pin types, is influenced by its material, construction quality, the environment it operates in, how it’s used, manufacturing precision, and even electrical loads.
These elements collectively dictate how long a pogo pin connector will reliably function.

Exploring Influences on Pogo Pin Durability

Many things can affect how long a pogo pin or spring loaded pin connector lasts.
As an experienced pogo pin manufacturer, we’ve seen how these factors interact.
Let’s break them down:

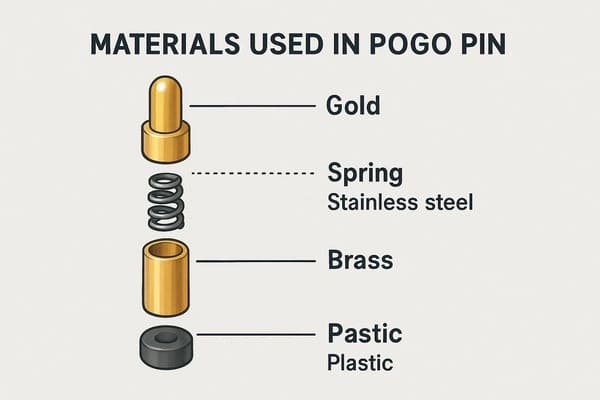

• Material and Construction:

  • Metal Type: Stainless steel is tougher against rust than brass.
    Brass can wear out faster.
  • Plating: Gold or nickel plating is key.
    It stops oxidation and keeps electrical contact good.
    At CTP, our Super AP Plating is a point of pride for its anti-corrosion properties.
  • Spring Design: The spring inside needs to stay bouncy to give steady contact force over many uses.

• Environmental Factors:

  • Temperature: Very hot or cold conditions can weaken materials and make them wear out quickly.
  • Humidity: Lots of moisture causes corrosion, shortening the pin’s life.
  • Corrosive Substances: Exposure to gases or chemicals can eat away at the pin’s surface.
    I remember a client who had issues with pogo pins in a coastal application.
    The salty air was causing rapid corrosion until we switched them to a specialized marine-grade pogo pin with enhanced plating.

• Usage Patterns:

  • Frequency of Use: Using pins a lot (many mating cycles) can tire out the spring.
  • Applied Force: Pushing too hard or bending the pin when connecting can break it.
  • Alignment: If pins don’t line up right, they can wear unevenly or fail.

• Design and Manufacturing Quality:

  • Precision: High-precision manufacturing means pins work consistently well and have fewer faults.
    This is something we, as a precision pogo pin supplier, focus heavily on.
  • Quality Control: Good testing during making ensures pins are consistently good.

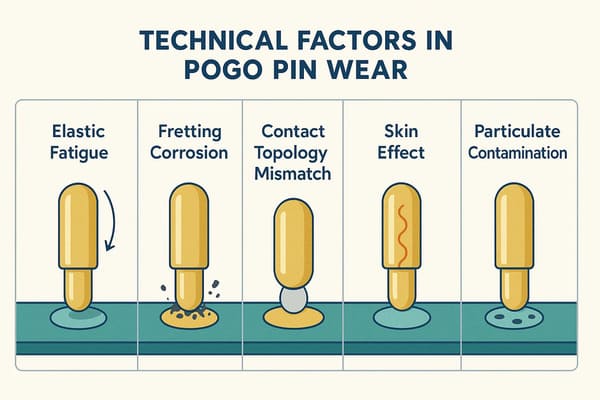

• Technical Factors:

  • Elastic Fatigue: Repeated pressing makes the spring tired at a tiny level, reducing its force.
  • Fretting Corrosion: Tiny movements between contact surfaces can create rust-like layers, making it harder for electricity to flow.
  • Contact Topology Mismatch: If surfaces don’t match well (like one is much harder or rougher), they wear out faster.
  • Skin Effect: In high-frequency uses, bad surface coatings can cause local heating and failure.
  • Particulate Contamination: Dust or tiny metal bits can get in the way, causing wear and bad signals.


• Electrical Factors:

  • Current Load: Too much current can create heat or sparks.
  • Voltage: High voltage can cause issues, though it’s less common for typical pogo pins.

Here’s a simple table summarizing some material impacts:

Understanding these factors helps buyers and designers choose the best pogo pin or magnetic pogo pin connector for their needs, ensuring longer life and better performance.

How Can We Effectively Extend Pogo Pin Life Cycle?

Are you tired of pogo pins failing too soon in your devices?
This common issue can lead to increased maintenance and unhappy customers.
The good news is, there are practical ways to make these critical components last longer.

To extend the life of pogo pins, including magnetic pogo pin connectors, select superior materials like gold-plated stainless steel, optimize the design for durability, manage the operating environment, ensure proper usage, and perform regular maintenance.
Advanced techniques also play a role.

Strategies for Enhancing Pogo Pin and Spring Loaded Pin Longevity

Making pogo pins last longer involves a mix of smart choices in design, materials, and how they’re used.
As a dedicated pogo pin manufacturer, we often guide our clients through these.
My team once worked with a company developing rugged outdoor sensors.
Their early prototypes had pogo pins failing due to moisture.
We helped them select a sealed pogo pin design with specialized plating, and it solved their problem.
Here’s how you can boost their lifespan:

• Material Selection:

  • Choose stainless steel for the body if corrosion is a concern.
  • Always opt for gold or nickel plating on contact surfaces. Gold is excellent for low resistance and corrosion protection.

• Design Optimization:

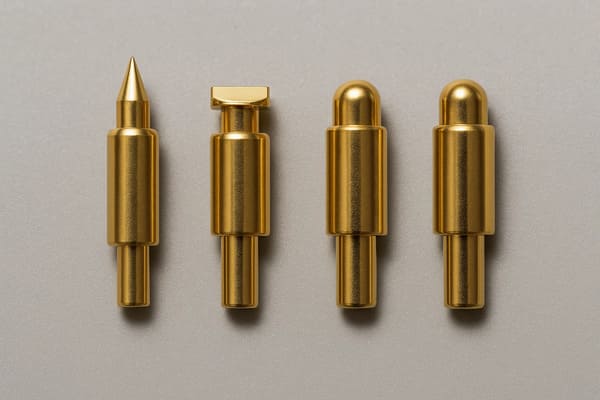

  • Look for pogo pins with hardened tips, especially if high wear is expected.
  • Select spring systems designed for consistent force over many cycles.
    Some designs, like a ball structure, can improve current flow and stability.

• Environmental Management:

  • If pins are in harsh places (high humidity, corrosive gases), use protective covers or special coatings.
  • Consider IP-rated pogo pins for challenging environments.

• Proper Usage:

  • Always follow the pogo pin supplier’s instructions for installing and handling.
    Don’t press them too hard or at an angle.
  • Use the right tools for setup to avoid accidental damage.

• Maintenance:

  • Clean pogo pins regularly to get rid of dust or other gunk.
  • Check for signs of wear like weak spring force or rust.
    Replace worn pins quickly.



• Advanced Techniques:

  • Precision Design: Use materials like piano steel for springs to keep contact force steady.
  • Surface Treatment: Advanced coatings like PVD (Physical Vapor Deposition) with gold or palladium can make surfaces harder and stop oxidation.
  • High-Frequency Design: For high-frequency uses, make sure the current spreads out evenly to reduce heat.
    Keeping temperature rise low (e.g., under 20°C) is important.

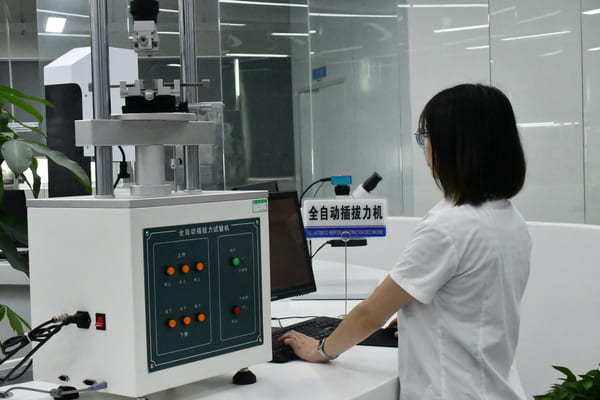

  • Quality Control: A rigorous pogo pin manufacturer will have strict quality checks (like our 23-step process at CTP) to ensure every pin is reliable.

Implementing these strategies can significantly improve the durability of your pogo pin connectors and spring loaded pin components.

Case Study: How Did a German Connector Company Extend Pogo Pin Life?

It’s one thing to talk about theories, but real-world examples show what’s possible.
A German connector company faced issues with pogo pin longevity in their high-frequency applications, leading to user complaints and increased service calls.
They needed a reliable solution.

By using innovative composite coatings and reinforcing spring sections in their pogo pins, the company successfully increased the operational life from 50,000 to over 200,000 cycles.
This dramatically improved product reliability and customer satisfaction.

Real-World Success in Enhancing Pogo Pin Durability

This German company, a well-known pogo pin buyer for their advanced telecom equipment, was struggling.
Their existing pogo pins, sourced from a generic pogo pin supplier, were rated for about 50,000 cycles.
However, in their demanding high-frequency devices, these pins were failing much sooner, sometimes around 30,000-40,000 cycles.
This caused signal integrity issues and intermittent connections.

They decided to partner with a specialized pogo pin manufacturer, much like us at CTP, to re-engineer the pogo pin solution.
Here’s a breakdown of what they did and the benefits:

• The Challenge:

  • Premature failure in high-frequency applications.
  • Increased maintenance costs due to frequent replacements.
  • Negative impact on product reliability and brand reputation.



• The Solution – A Multi-Faceted Approach:

  • Composite Coatings: Instead of standard gold plating, they adopted a multi-layer composite PVD (Physical Vapor Deposition) coating.
    This new coating offered superior hardness, lower friction, and enhanced resistance to fretting corrosion – a common issue in their vibrating environments.
  • Reinforced Spring Sections: The internal springs were redesigned using a higher-grade alloy (similar to the piano wire but with better fatigue resistance).
    Critical sections of the spring were also slightly thickened to better withstand the stresses of repeated compression.
  • Optimized Contact Geometry: The plunger tip geometry was refined to ensure a more stable contact point and distribute stress more evenly, reducing localized wear.

• The Impressive Results:

  • Extended Life Cycle: Rigorous testing showed the new pogo pins consistently exceeded 200,000 mating cycles, a fourfold improvement!
  • Reduced Maintenance Costs: The need for field replacements dropped significantly, saving the company substantial operational expenses.
  • Improved Reliability: End-users experienced far fewer connection issues, leading to higher satisfaction and trust in the product.
  • Enhanced Performance: The improved contact integrity also led to better signal performance in their high-frequency applications.


This case clearly shows how focused engineering and material science, often driven by a knowledgeable magnetic pogo pin manufacturer or spring loaded pin expert, can lead to substantial improvements in pogo pin lifespan and overall product quality.

Conclusion

Understanding what affects a pogo pin’s life and how to extend it is key for reliable electronics.
By choosing the right materials, designs, and using them correctly, you can make your pogo pins, magnetic pogo pins, and pogo pin connectors last much longer.
This means better performance and less hassle.

At CTP, we’re committed to providing high-quality pogo pin solutions.
If you’re looking for a reliable pogo pin manufacturer or have questions about extending the life of your connectors, visit our website or contact us directly at our contact page.
We’re here to help you find the best pogo pin for your needs.
