Why Are Precision-Made Pogo Pin Connectors Critical for Medical Devices?

Faulty pogo pin connectors in your medical device pose a serious risk.
Picture life-saving machines failing or diagnostics providing inaccurate data, jeopardizing patient outcomes.
Manufacturers know reliable pogo pins are foundational for safety and compliance.

Precision-made pogo pin connectors are crucial for medical devices because they ensure reliability and maintain signal integrity for accurate diagnostics.
They also support essential miniaturization, which is vital for compact medical equipment.
These factors are paramount for patient safety and optimal device performance in demanding medical environments.

Precision pogo pin connectors for medical devices

Medical technology presents unique challenges that directly influence component selection.
Understanding how these demands underscore the necessity of high-quality pogo pin solutions is crucial.
This insight is fundamental for developing more effective and reliable medical devices.

What Are The Unique Demands for Medical Device Pogo Pin Connectivity?

Are your device components truly adequate?
Standard connectors often fail in medical applications, which can risk patient care.
Specialized pogo pins, however, are designed to meet these strict demands effectively.

Medical device connectivity needs top reliability and signal integrity, it also needs compact designs.
Connectors must endure sterilization, constant use, and harsh environments, while biocompatibility is also key for patient safety.

Medical devices work in very tough conditions.
I recall a client in Germany, who made a portable ultrasound wand, and their first design struggled when connectors failed after gel use and cleaning.
This experience showed the non-negotiable needs of this sector, which include:

  • Unyielding Reliability and Durability for Pogo Pins:

    Medical connectors must work perfectly, often going through thousands of uses.
    Think of diagnostic probes or wearable monitors.
    Different pogo pin structures, like standard, guided, or sealed types, enhance durability for specific needs.
    They need to handle harsh sterilization, such as autoclaving or ETO gas, and this must happen without losing performance.
    Continuous 24/7 operation is often standard, so spring loaded pin connectors are built for this.
    Advanced magnetic pogo pin types can last over 100,000 cycles, a long life that cuts failure rates and costs.

    Reliable Spring Loaded Pin Connector for Medical Devices

  • Pristine Signal Integrity with Low Resistance Pogo Pin Connectors:

    Accurate diagnostics need clean signal transmission, and patient monitoring also relies on this.
    Connectors must have very low contact resistance to stop signal loss or noise, even small errors in an ECG or glucose reading can be harmful.
    The shape of the pogo pin needle—whether pointed for high density, flat for high current, or round for reduced wear—also impacts signal quality and contact area.
    Quality materials and precision engineering from a high-quality pogo pin manufacturer are vital here.

  • Miniaturization and Compact Pogo Pins for Modern Medical Devices:

    Medical devices are getting smaller and lighter, a trend vital for portable and wearable tech.
    Pogo pins are great for this, allowing compact, patient-friendly designs due to their small size and offering better space efficiency than many traditional connectors.
    A bulky connector, for instance, would defeat the purpose of a modern smart inhaler.

  • Biocompatibility and Sterilization Compatibility of Pogo Pin Materials:

    Components near biological fluids need biocompatible materials that must also handle sterilization.
    This means using medical-grade polymers and specific platings for pogo pin connector parts.
    As a responsible pogo pin supplier, we ensure our materials meet these rules, our products comply with RoHS 2.0 and REACH, essential for medical applications.

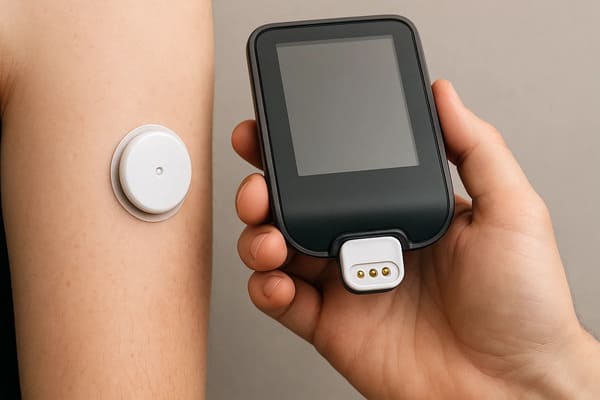

Miniature Pogo Pin Connectors in Continuous Glucose Monitor

  • Resilience in Harsh Operating Environments for Pogo Pin Connectors:
    Medical devices work in many places, such as busy emergency rooms, ambulances, and homes.
    Connectors must resist vibrations, shocks, and temperature changes, and they also face cleaning agents.
    Special types like high waterproof or high-temperature resistant pogo pins are available for extreme conditions, this toughness is a mark of good pogo pin connectors for medical use.

Medical device connectivity requires high reliability, signal integrity, and compact designs.
Connectors must withstand sterilization, constant use, and harsh environments, while biocompatibility is also key for patient safety.
This ensures patient well-being and optimal device performance.

How Do Precision-Made Pogo Pins and Magnetic Pogo Pins Meet Critical Medical Needs?

Struggling with medical tech connector demands?
Standard options often fail, risking device performance and patient safety, whereas precision-made pogo pins offer specific, engineered benefits to solve this.

Precision-made pogo pins and magnetic pogo pins meet critical medical needs through superior performance.
They offer enhanced durability, design flexibility, and enable miniaturization in medical devices.
These features simplify device integration and ensure reliable connections for various medical applications.

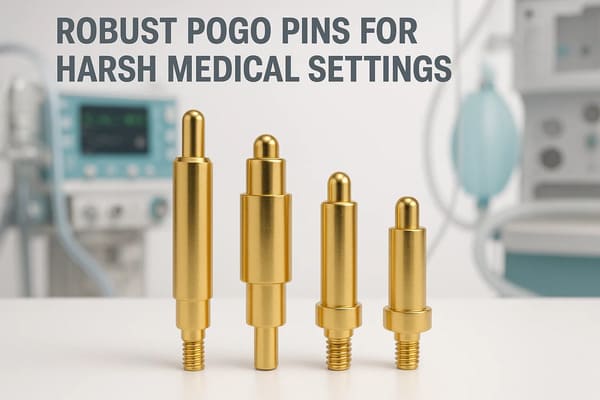

Robust Pogo Pins for Harsh Medical Settings

Precision-made pogo pins are designed to address the specific challenges of medical applications, significantly improving device reliability.
Their effectiveness in this field stems from several key attributes:

  • Superior Mechanical and Electrical Performance of Pogo Pin Connectors:

    • Consistent Contact Force: Maintaining stable contact pressure is vital for medical devices, lasting over thousands of cycles to prevent intermittent connections.
      This stability prevents micro-interruptions that can corrupt sensitive medical data or cause control system faults.

    • Low Contact Resistance: Utilizing high-quality materials like beryllium copper with gold plating minimizes resistance.
      This reduces signal loss and heat, crucial for sensitive measurements, high-speed data, and ensuring maximum power or signal reaches its destination, especially for battery-powered devices.

    • Excellent Current Carrying Capability: These connectors handle various currents, from microamps in sensors to amps in surgical tools, without overheating, ensuring reliable power delivery across diverse medical applications.

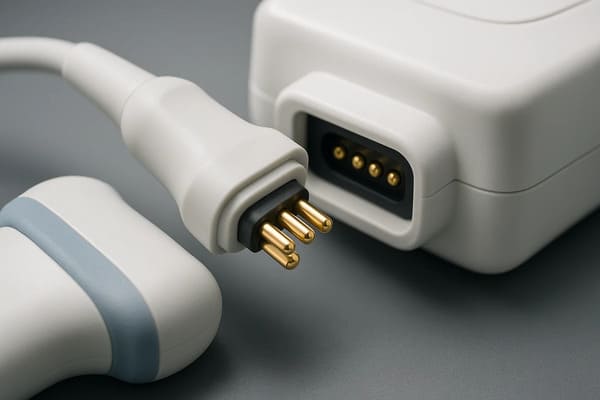

High-Current Pogo Pin Connectors in Medical Device

  • Enhanced Durability and Longevity with Robust Pogo Pins:

    • Robust Construction for Harsh Conditions: Durable housing materials and high-endurance internal springs extend the life of each spring-loaded pin.
      This contributes to a longer lifespan for the medical device, ultimately lowering total ownership costs.

    • Inherent Resistance to Wear and Tear: The pogo pin’s spring-loaded plunger design reduces friction, offering superior resistance compared to many traditional connectors.
      This makes them ideal for applications involving frequent connections and disconnections.

  • Unmatched Design Flexibility with Customizable Pogo Pin Connectors:

    • Enabling Miniaturization and Ergonomics: The compact size of pogo pins facilitates the creation of smaller medical devices.
      This improves patient comfort and device portability, allowing for more features in smaller packages and enhancing handling for clinicians.

    • Bespoke Custom Configurations for Pogo Pins: Custom solutions are available, allowing for tailoring of pin count, pitch, height, spring force, and termination style (like SMT or THT).
      Electrical characteristics, such as impedance for high-frequency applications, can also be customized to match specific requirements.

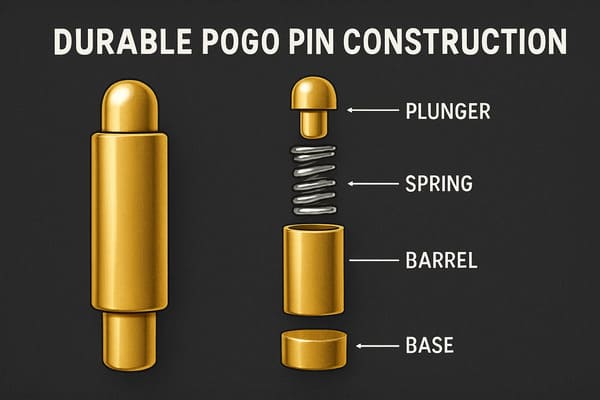

Durable Pogo Pin Construction

Customization Aspect CTP Capability Benefit for Medical Devices
Pin Count & Pitch Fully Customizable Optimized for specific signal/power
Working Height Tailored to device mechanics Perfect fit in compact designs
Spring Force Adjustable for mating/unmating feel Secure connection, user-friendly
Materials Medical-grade, non-magnetic options Biocompatibility, MRI compatibility
Form Factor Custom housing and shapes Unique integration possibilities
  • Simplified Integration with Pogo Pin and Magnetic Pogo Pin Connectors:

    • Blind Mating Capabilities for Efficient Assembly: Many pogo pin designs, especially magnetic pogo pin connectors, offer blind mating.
      This enables reliable connection without perfect visual alignment, simplifying assembly for manufacturers and reducing user errors in the field.

    • Facilitating Modularity and Serviceability: Pogo pin interfaces can make field servicing easier.
      In modular devices, component replacement is faster, reducing downtime and long-term maintenance costs.
      Our quality is backed by ISO9001, IATF16949, ISO14001, and ISO45001.

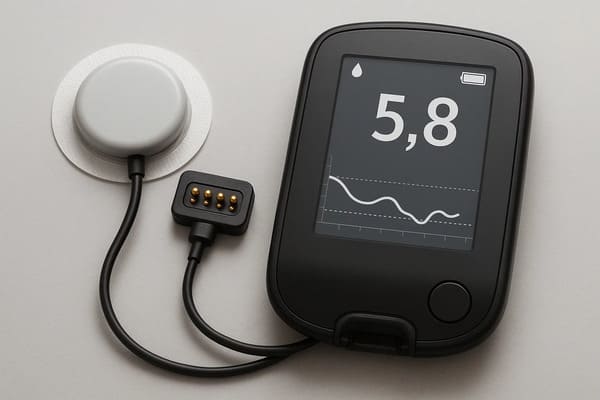

Custom Spring loaded pin connector application in insulin monitor

In essence, precision-made pogo pins and magnetic pogo pins provide the reliability, durability, and adaptability essential for modern medical technology, contributing to enhanced patient safety and device performance.

What Are Real-World Pogo Pin and Magnetic Connector Applications in Medical Devices?

Wondering where advanced pogo pin connectors truly make a difference?
Abstract benefits are fine but practical, life-impacting uses show their real value.
Let’s see how pogo pins perform in actual medical technology.

Pogo pin connectors and magnetic connectors are widely used in medical devices. They are vital in patient monitors for reliable data and are key for diagnostic tools to ensure signal integrity.
These connectors are also used in wearable health devices for compact, robust connections, and serve surgical instruments and drug delivery systems.

Precision-made pogo pin and magnetic pogo pin designs are versatile, integrating into many critical medical devices.
These include patient monitoring systems, advanced diagnostic equipment, wearable health devices, surgical instruments, robotic systems, and automated drug delivery systems.
Here are key medical areas:

  • Patient Monitoring Systems with Reliable Pogo Pin Connections:

    Think of bedside or wearable monitors; ECG machines, vital signs monitors (heart rate, SpO2), and EEG monitors all need them.
    Spring loaded pin connectors ensure continuous, reliable data transmission, as stable, low-noise connections are crucial for accurate patient assessment.
    The consistent connection from pogo pins ensures that alerts for critical changes in patient status are delivered without fail, enabling timely clinical action.

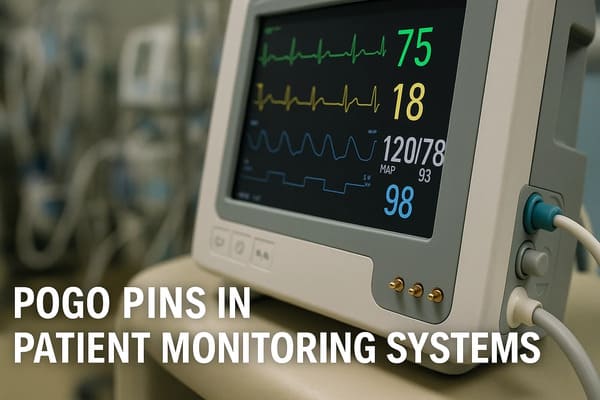

Pogo Pins in Patient Monitoring Systems

  • Advanced Diagnostic Equipment Using High-Integrity Pogo Pin Connectors:

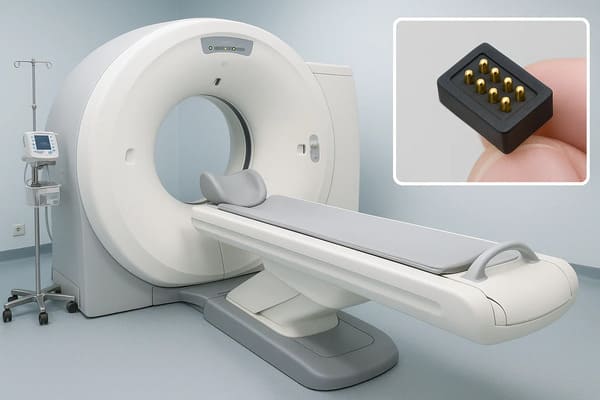

    Tools like ultrasound probes, MRI accessories, and lab analyzers need pristine signals, and high-quality pogo pins maintain this fidelity, minimizing signal loss and noise.
    This is essential for correct diagnoses.
    I helped a client with a new ultrasound probe where our custom-shielded pogo pins improved image clarity, greatly pleasing the radiologists.

  • Wearable Health Devices Leveraging Compact Magnetic Pogo Pin Connectors:

    Wearable tech is booming; smart patches, glucose monitors (CGMs), and wearable ECGs rely on pogo pin connectors.
    Their miniaturization, robustness, and secure connections are key, while their low profile and light weight are perfect for body-worn devices.
    The ease of connection with magnetic pogo pin connectors also improves user experience, vital for patient adherence.
    This includes devices from innovative companies like Xiaomi and Huawei in the consumer space, whose precision needs we also meet.

  • Surgical Instruments and Robotic Systems with Durable Pogo Pins:

    In operating rooms, advanced tools need precision and durability; smart instruments, endoscopes, and robotic arms use pogo pin connectors.
    They provide stable power and data links and also withstand repeated sterilization.

Magnetic Pogo Pins for Wearable Health Tech

  • Automated Drug Delivery Systems Relying on Pogo Pin Consistency:

    Infusion pumps and smart insulin pens need consistent power; they also need reliable data for safety.
    Pogo pins provide a stable electrical link for precise dosage, which directly impacts patient safety.

These connectors provide stable and reliable electrical links, proving indispensable in diverse medical applications.
Their adaptable nature supports innovation, contributing to safer and more effective healthcare solutions.

How to Select the Right Pogo Pin or Magnetic Pogo Pin Connector for Your Medical Device?

Choosing the right pogo pin connector is crucial, and it’s not always easy for your medical device, as a wrong choice can affect performance and safety.
Consider key factors carefully for optimal selection.

To select the right pogo pin connector, evaluate application needs; consider current, non-magnetic properties, or mating cycles.
Assess environmental conditions like fluids or temperatures, ensure regulatory compliance (FDA, ISO), and partner with an expert pogo pin supplier.

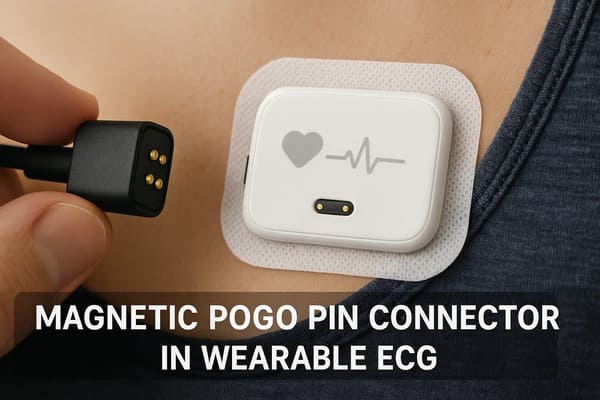

Spring-Loaded Pin Connector application in wearable ECGs

Choosing the ideal pogo pin or magnetic pogo pin connector significantly impacts medical device performance, reliability, safety, and regulatory success.
A thorough selection process is essential for B2B clients.
Diverse experience from other sectors, like consumer electronics and automotive, can be beneficial in medical applications.

  • Deeply Understand Your Specific Pogo Pin Application Requirements:
    This is the vital first step.

    • Electrical Needs: What current levels must the pogo pin handle?
      What’s the maximum contact resistance? Are there impedance-matching needs for high-frequency signals?
      For example, a diagnostic imaging device might need high-bandwidth data transfer, while a simple sensor might only need a low-current path.
      A solutions-oriented pogo pin manufacturer can help define these.

    • Mechanical Demands: How many mating cycles will the pogo pin connector endure?
      What spring force is optimal? What are the dimensional constraints for pin count, pitch, and board space?
      Consider also mating angle and retention force; does it need a quick-release magnetic pogo pin or a secure mechanical latch?

    • Special Pogo Pin Properties: Are non-magnetic materials essential (e.g., for MRI use)?
      Is an IP rating needed for waterproofing? Are keying features required?

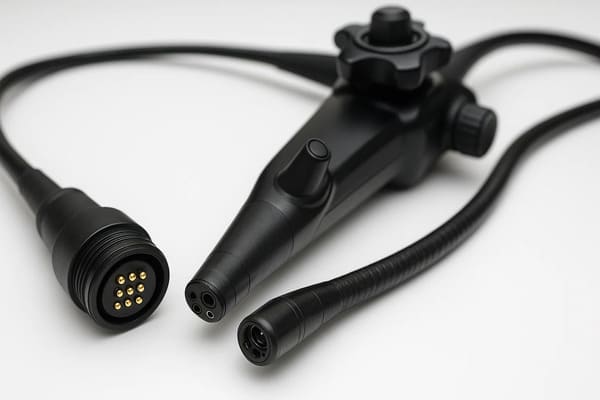

Spring-Loaded Pin Connector Application in Endoscopes

  • Thoroughly Assess the Pogo Pin’s Intended Operating Environment:
    The environment greatly influences pogo pin connector selection.

    • Physical Stresses: Will the pogo pin face vibrations, shocks, or impacts?
      Think about portable or vehicle-mounted devices.

    • Chemical and Thermal Exposure: What cleaning agents or fluids will it contact? What are the temperature extremes?
      Will it undergo sterilization (autoclave, ETO, gamma)?
      The materials must withstand these; our materials are often imported to ensure top quality.

Consider this table for environmental factors:

Environmental Factor Consideration for Pogo Pins CTP Solution Aspect
Vibration/Shock Secure mating, robust spring design High-endurance spring materials
Temperature Extremes Material stability, consistent performance High-temp resistant polymers
Chemical Exposure Corrosion resistance, material compatibility with cleaners Gold plating, inert plastics
Sterilization Withstand autoclaving, ETO, or gamma Medical-grade approved materials

Medical Device Regulatory Compliance for Pogo Pins

  • Navigate Pogo Pin Regulatory Compliance Proactively:
    This is non-negotiable for medical devices.

    • Ensure the pogo pin connector supports your device’s compliance; this includes FDA, MDR, ISO 13485, and IEC 60601. Biocompatibility (ISO 10993) is key for patient contact parts.
      Products should meet global standards like CE, TUV, RoHS 2.0, and REACH, and be halogen-free; they should also comply with California Proposition 65 and POps.
  • Partner with an Experienced and Solutions-Oriented Pogo Pin Supplier:
    Your pogo pin supplier choice is critical.

    • Choose a trusted pogo pin supplier with expertise in medical-grade components and robust quality systems like ISO 9001, ISO 13485, and IATF 16949.
      Look for a provider that offers support for custom designs and has a clear customization process. It is beneficial to work with partners who can provide rapid prototyping and reliable service.

By carefully considering these factors, you can select the optimal pogo pin or magnetic pogo pin connector.
This proactive approach ensures your medical device’s long-term performance, reliability, and successful regulatory approval.

Conclusion

Precision pogo pin connectors are vital for medical devices, ensuring reliability and safety.
Choosing a top pogo pin manufacturer like CTP safeguards your device and patient well-being.
Visit our website to discuss your project needs.

Share This

Get a solution now

We will contact you within 1 working day, please pay attention to the email with the suffix “@magneticpogo.com”

Smartwatch with transparent view revealing its internal circuit board and components. Beside it, a smartphone and a POGO pin connector illustrate how this technology is seamlessly applied to smartwatches for enhanced connectivity. Text highlights: POGO Pin Connector.

Note: Your email information will be kept strictly confidential.

Seraphinite AcceleratorOptimized by Seraphinite Accelerator
Turns on site high speed to be attractive for people and search engines.
